Kyocera FS-C8600DN - Page 27

2MN/2N1
1-2-5
220-240V model

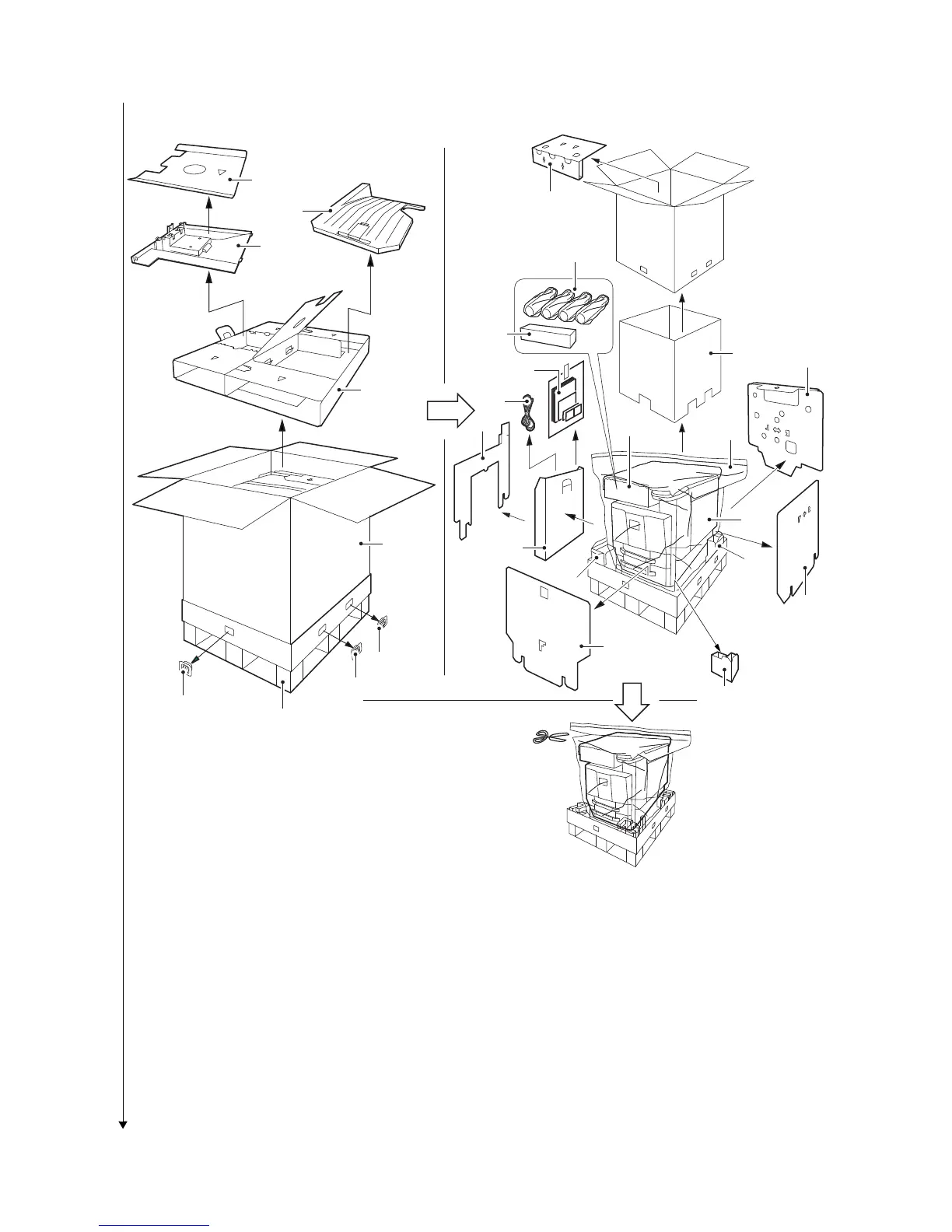

Figure 1-2-5
Place the machine on a level surface.
5
6
11
21,22,
23,24,25
18
6
6
16
4
17
3
12
9
7
7
7
8
13
14
10
1
2
13
19
20
26
1. Machine
2. Outer case
3. Inner case
4. Spacer A
5. Skid
6. Hinge joints
7. Bottom pad
8. Front pad
9. Left pad
10. Right pad
11. Rear pad
12. Top spacer
13. Machine cover
14. Toner container (Y,M,C,K)
15. Waste toner box
16. Main tray
17. Spacer B
18. Job separetor tray
19. Document tray
20. Power cord
21. Plastic bag
22. Paper size plates
23. Paper media plates
24. Pin
25. Operation guide etc.
26. Top pad
