2MN/2N1
1-5-13
6. Unhook the hook of the feed holder
assembly.
7. Remove the spring and the feed holder
assembly from the top base.

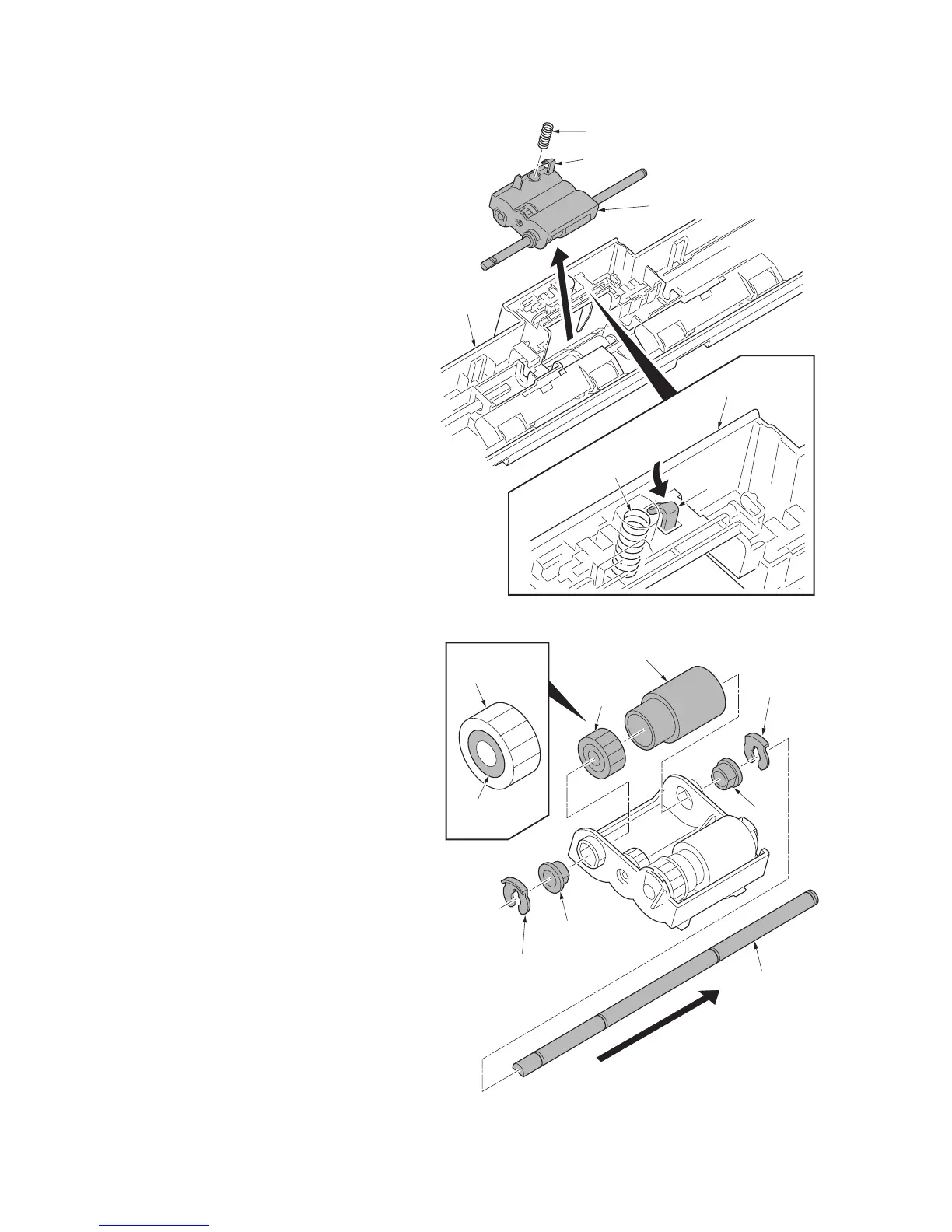

Figure 1-5-19
8. Remove two stop rings.
9. Pull the feed MPF shaft out.
10. Remove two bushes, one way gear
Z30R and MP paper feed pulley.
*: To refit the one-way gear Z30R, mount
the gear in the correct direction as
shown.
Figure 1-5-20
Hook
Hook
Top base
Top base
Spring
Spring
Feed holder assembly
Feed MFP shaft
Stop ring
Stop ring
MP paper feed pulley
Bush
Bush
Oneway gear
Z30R
Oneway
clutch
Oneway gear
Z30R
