14-4 Configuring a Measurement Model 831 Manual
Measurement Description
The Measurement Description is used to annotate a
measurement and can be up to 63 characters in length.
FFT Tab
The FFT tab is used to specify settings for FFT
measurements, as shown in Figure 14-5.

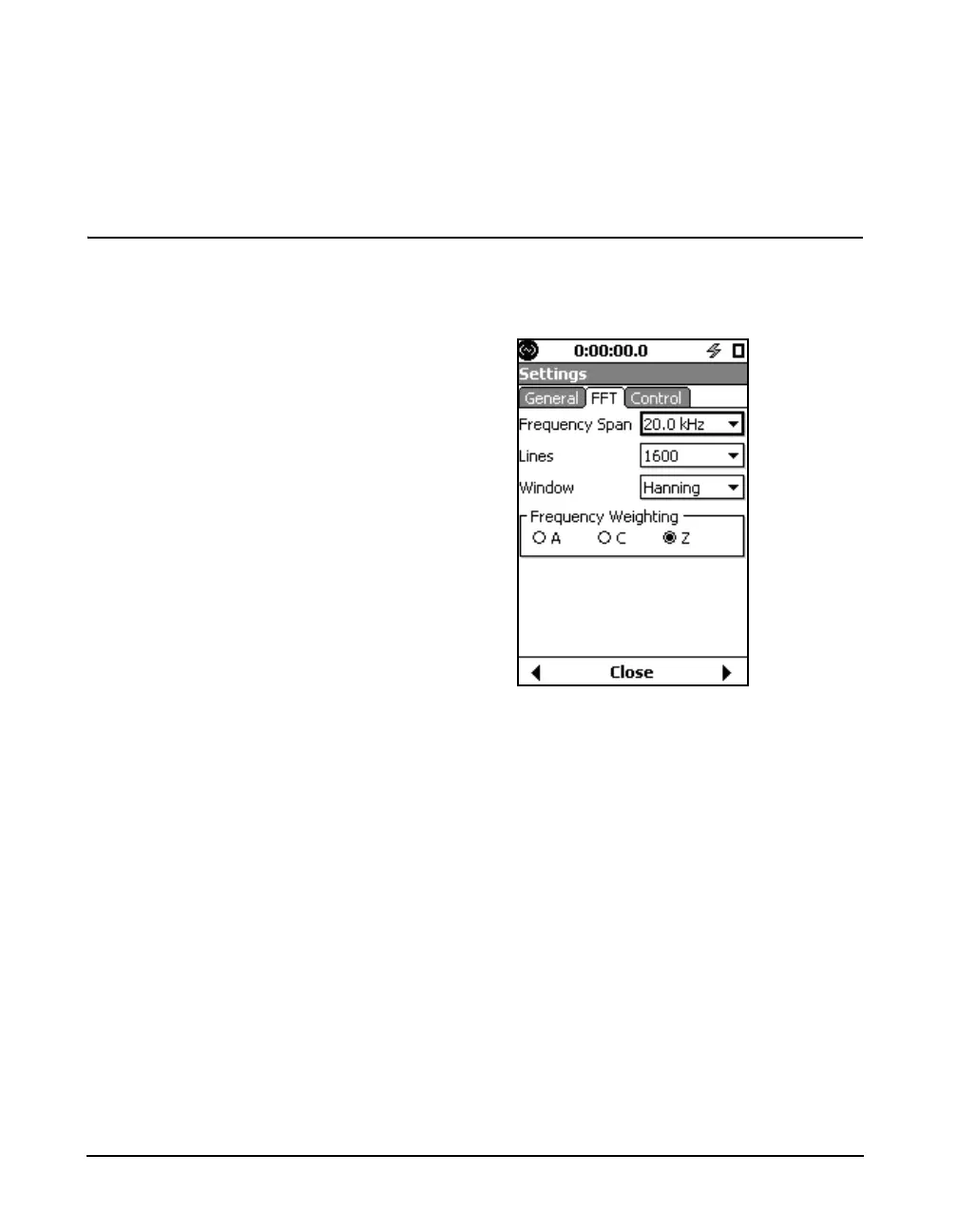

FIGURE 14-5 FFT Tab
Frequency Span
Use the Frequency Span setting to specify the upper end of
frequency response. The choices are:
• 20 kHz
• 10 kHz
• 5 kHz
• 2 kHz
• 1 kHz
• 500 Hz
• 200 Hz
• 100 Hz
