SDA Operator’s Manual

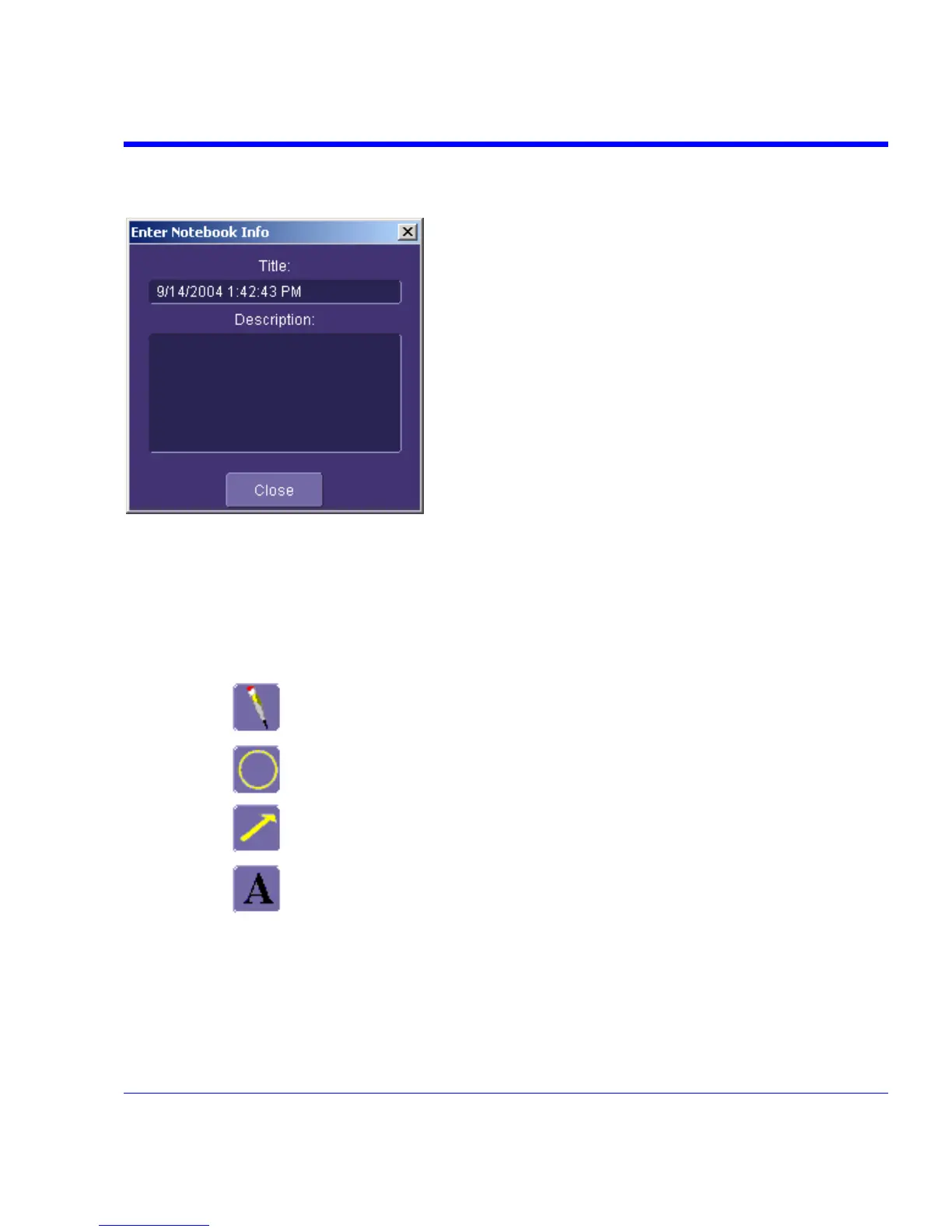

A dialog box is shown for providing a title and comments for the entry. By default, the entry is
titled with the current date and time.
2. Touch inside the Title field and enter a title, using the pop-up keyboard. Then touch inside
the Description field and enter a description, if desired, and touch Close.
3. The notebook entry will display your waveforms in "print colors," that is, on a white
background to save printer ink, if you selected that option in notebook Preferences.
Otherwise, the waveforms will appear on a black background. A drawing toolbar appears at
top:
The pen tool enables you to write or draw in freehand. You can use a
mouse, or a stylus to do this using the touch-screen. Once you click off, you
can drag your note anywhere on your waveform.
The circle tool enables you to create a circle around a waveform feature that
you want to point out. Once you click off, the circle is drawn and you can
drag it anywhere on the screen.
The arrow tool enables you to draw lines with arrowheads for callouts. You
can rotate these lines through 360 degrees and drag them to any location on
the screen.
The text tool enables you to enter text callouts on your report. When you
touch this tool, a dialog box opens in which to enter text by means of a pop-
up keyboard.
SDA-OM-E Rev H 295
