12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 5: The HII Configuration Utility
Managing Configurations
— Write Through: The controller sends a data transfer completion signal to the host when the virtual drive has
received all of the data and has completed the write transaction to the drive.
— Write Back: The controller sends a data transfer completion signal to the host when the controller cache has
received all of the data in a drive write transaction. Data is written to the virtual drive in accordance with
policies set up by the controller. These policies include the amount of dirty and clean cache lines, the number
of cache lines available, and the elapsed time from the last cache flush.
— Force Write Back.
6. Highlight the available SSD drives listed in the window and press the spacebar to select them.
Alternatively, highlight Select All and press Enter to select all available SSD drives for the virtual drive.
7. When you have selected all the SSD drives, highlight Create CacheCade Virtual Drive and press Enter to create
the virtual drive.
5.3.4 Viewing Drive Group Properties
The following window appears when you select View Drive Group Properties from the Virtual Drive
Management menu.

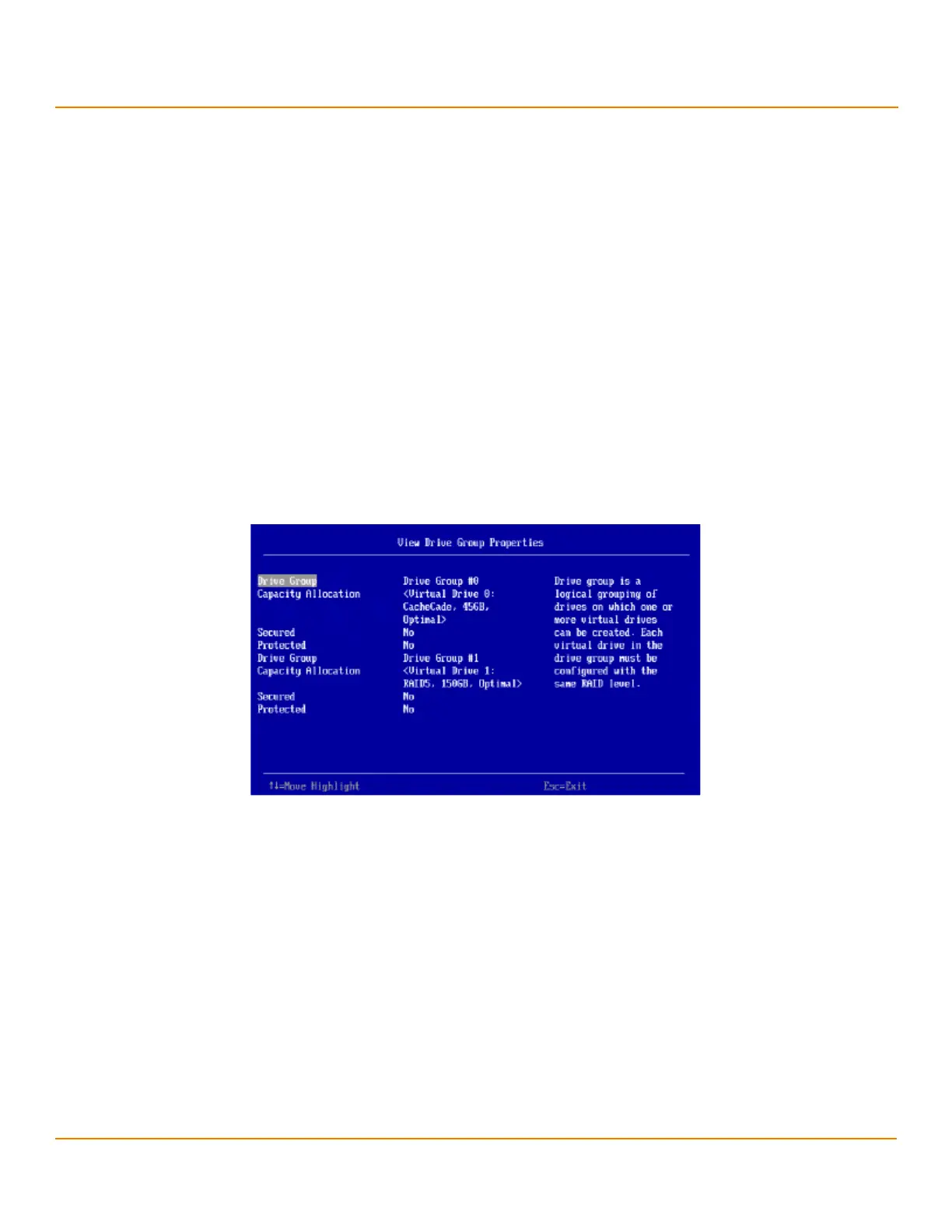

Figure 70 View Drive Group Properties Window
A drive group is a logical grouping of drives attached to a RAID controller on which one or more virtual drives can be
created. Each virtual drive in the drive group must be configured with the same RAID level. This figure shows
information for one drive group.
In this window, the Capacity Allocation entry for each drive group displays associated virtual drives for the drive
group. The window also indicates whether the drive group is secured and protected. To see how much free space is
available in the drive group, highlight a Capacity Allocation field and press Enter. The information appears in a
popup window.
5.3.5 Viewing Global Hot Spare Drives
To view all the assigned global hot spare drives on the controller, select View Global HotSpares on the
Configuration Management menu. The following figure shows a sample of the View Global Hot Spare
Drives dialog.

Lenovo ThinkServer RD650 Specifications

General

HDD size	2.5 \
RAID support	Yes
HDD interface	Serial ATA III
Optical drive type	DVD±RW
Total storage capacity	600 GB
Maximum storage capacity	74 TB
Number of HDDs installed	2
Memory slots	24
Internal memory	16 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	768 GB
Flash memory	2048 MB
PCI Express slots version	3.0
PCI Express x8 (Gen 3.x) slots	8
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 (Including Hyper-V), Microsoft Windows Server 2012 (Including Hyper-V), Microsoft Windows Server 2008 R2 SP1 (Including Hyper-V), SUSE Linux Enterprise Server, Red Hat Enterprise Linux Server, VMware vSphere ESXi
Chassis type	Rack (2U)
Power supply	750 W
Number of redundant power supplies installed	1
Number of 3.5\" bays	0
Processor ARK ID	83352
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Tcase	72.6 °C
Bus type	QPI
Stepping	R2
Scalability	2S
Processor code	SR207
Processor cache	15 MB
Processor cores	6
Processor model	E5-2620V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	12
Processor codename	Haswell
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Configurable TDP-down	85 W
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Maximum number of PCI Express lanes	40
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 45 °C
USB 2.0 ports quantity	4
On-board graphics card model	Not available

Weight and Dimensions

Depth	762 mm
Width	482.6 mm
Height	87 mm
Weight	15875.73 g
