LSI Corporation

- 328 -

12Gb/s MegaRAID SAS Software User Guide

March 2014

Chapter 12: Using MegaRAID Advanced Software

Activating an Unlimited Key over a Trial Key

Figure 209 Activating an Unlimited Key over a Trial Key

NOTE Except for the yellow shading, the other shadings of the text are

provided for easy understanding in the relevant dialogs.

12.7.1 Activating a Trial Software

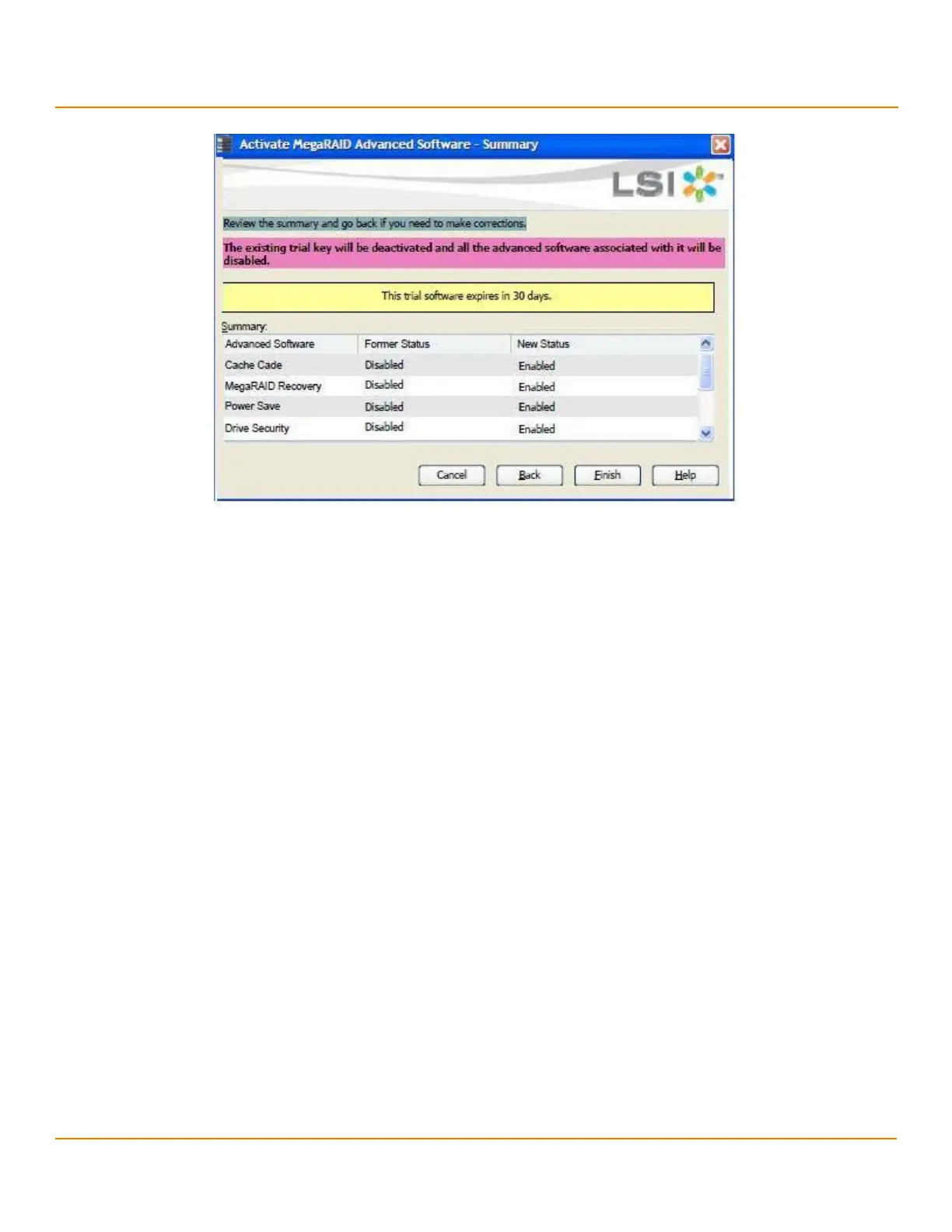

When you activate a trial software, a message This trial software expires in 30 days appears

(indicated in yellow text in the following figure).
