LSI Corporation
- 283 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 9: Configuration
Changing a Virtual Drive Configuration

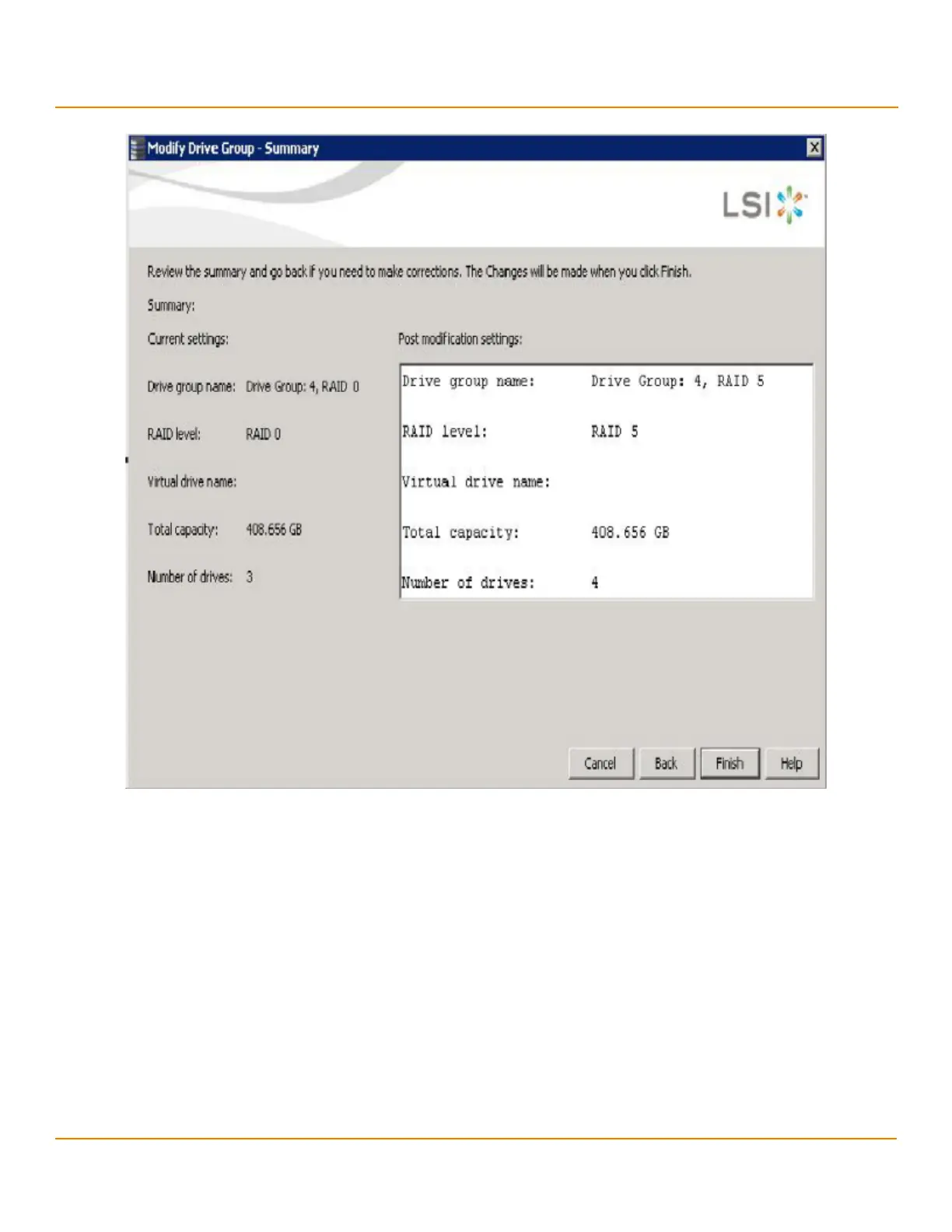

Figure 173 Modify Drive Group - Summary Window
6. Review the configuration information.
You can click Back if you need to change any selections.
7. Click Finish to accept the changes.
A confirmation message appears. The message states that this operation cannot be aborted and asks whether
you want to continue.
8. Click Yes to accept and complete the addition of the drives to the drive group.
9.8.3 Removing a Drive from a Configuration
AT TEN TIO N Be sure to back up the data on the virtual drive before you remove a
drive from it.
Follow these steps to remove a drive from a RAID 1, RAID 5, or RAID 6 configuration.
