Chapter 5: The HII Configuration Utility
Managing Controllers

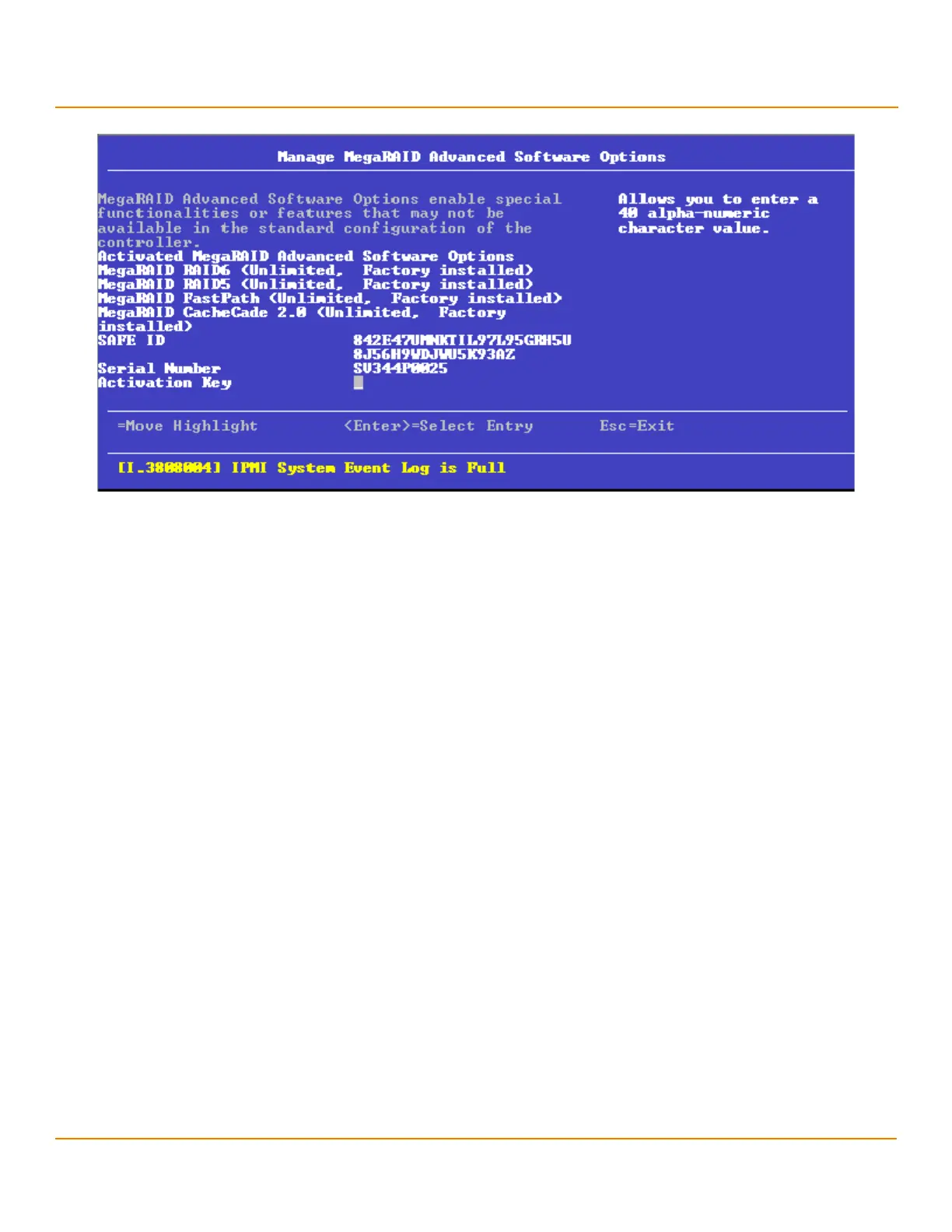

Figure 80 Manage MegaRAID Advanced Software Options
This dialog lists fields that cannot all be shown in one dialog. Scroll down to view all of the fields.
NOTE The red arrow appears when there is too much information to display
in one dialog. The amount of information that can be displayed in one
dialog depends on the capabilities of the HII browser.
Both the Safe ID and the Serial Number fields consist of pre-defined values internally generated by the
controller.
2. Highlight Activation Key and press Enter. Enter the activation key and press Enter.
3. Click Activate.
The activation key is activated. You can now use the advanced software features.
5.4.4 Scheduling a Consistency Check
The Schedule Consistency Check dialog appears when you select Schedule Consistency Check from the Advanced
Controller Management menu.
Use this dialog to schedule consistency checks on the redundant virtual drives configured on the controller. The
nonselectable entries in the Consistency Check Start fields indicate the date and time of the next scheduled
consistency check.
Follow these steps to change the consistency check settings.
1. Highlight the Consistency Check Frequency field and press Enter.
A selectable popup menu appears.
2. Select the desired interval at which to run consistency checks.
The choices are Hourly, Daily, Weekly, or Monthly. You can also choose to disable consistency checks, which is
not recommended because it reduces the level of protection for your system.
3. To change the mode of operation, highlight the Consistency Check Mode field and press Enter.
A selectable pop-up menu appears.
4. Select Concurrent to run consistency checks concurrently on all virtual drives, or select Sequential to run
consistency checks on one virtual drive at a time.
