LSI Corporation

- 56 -

12Gb/s MegaRAID SAS Software User Guide

March 2014

Chapter 4: Ctrl-R Utility

Managing Software Licensing

4.6.3 Activating an Unlimited Key over a Trial Key

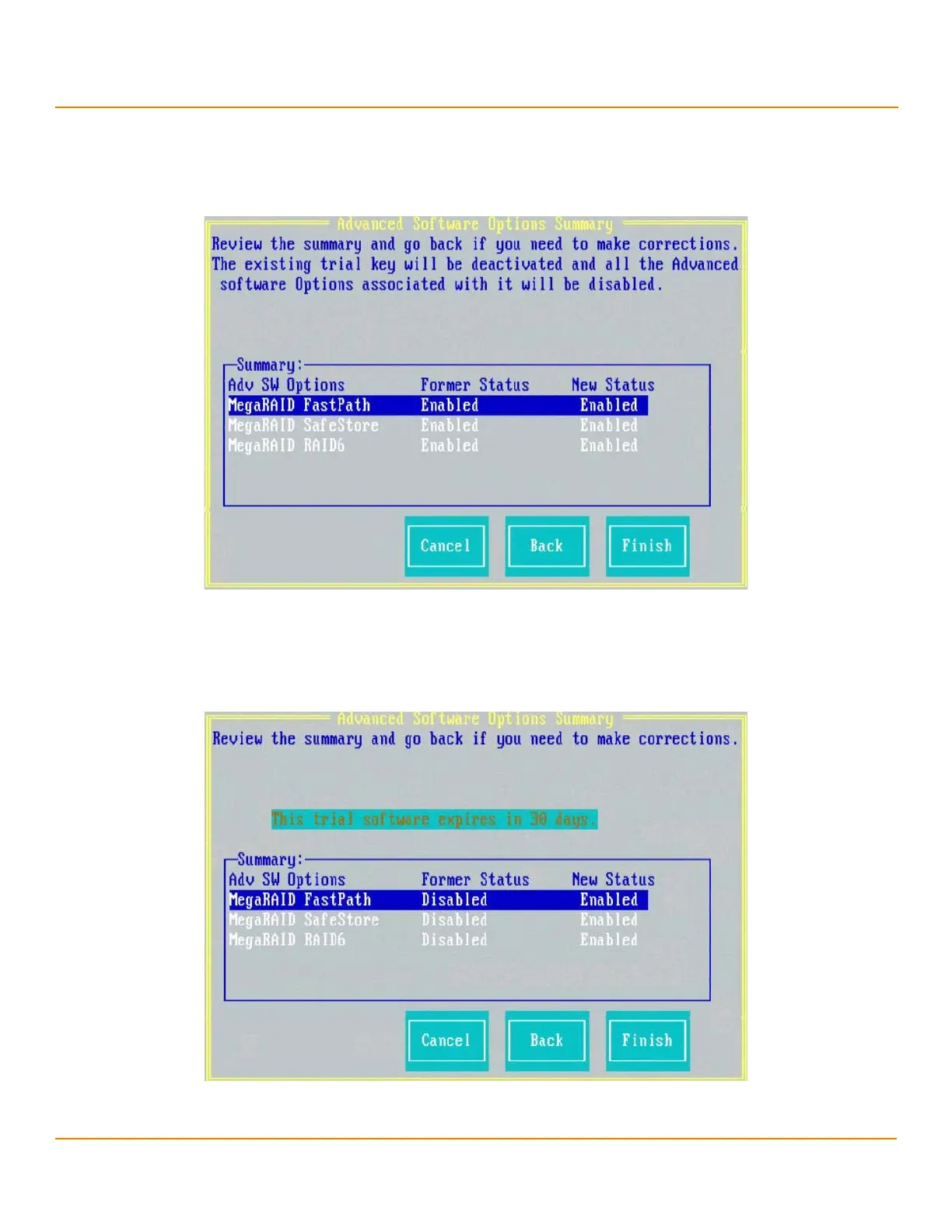

When you activate an unlimited key over a trial key, the following dialog appears.

Figure 27 Activating an Unlimited Key over a Trial Key

4.6.4 Activating a Trial Software

When you activate a trial software, the following dialog appears.

Figure 28 Activating a Trial Software Application
