Chapter 8: MegaRAID Storage Manager Window and Menus
MegaRAID Storage Manager Main Menu
2. Click the physical drive in Shield state on Physical view or Logical view of the device tree to view the properties.
The device properties are displayed as shown in the following figure.

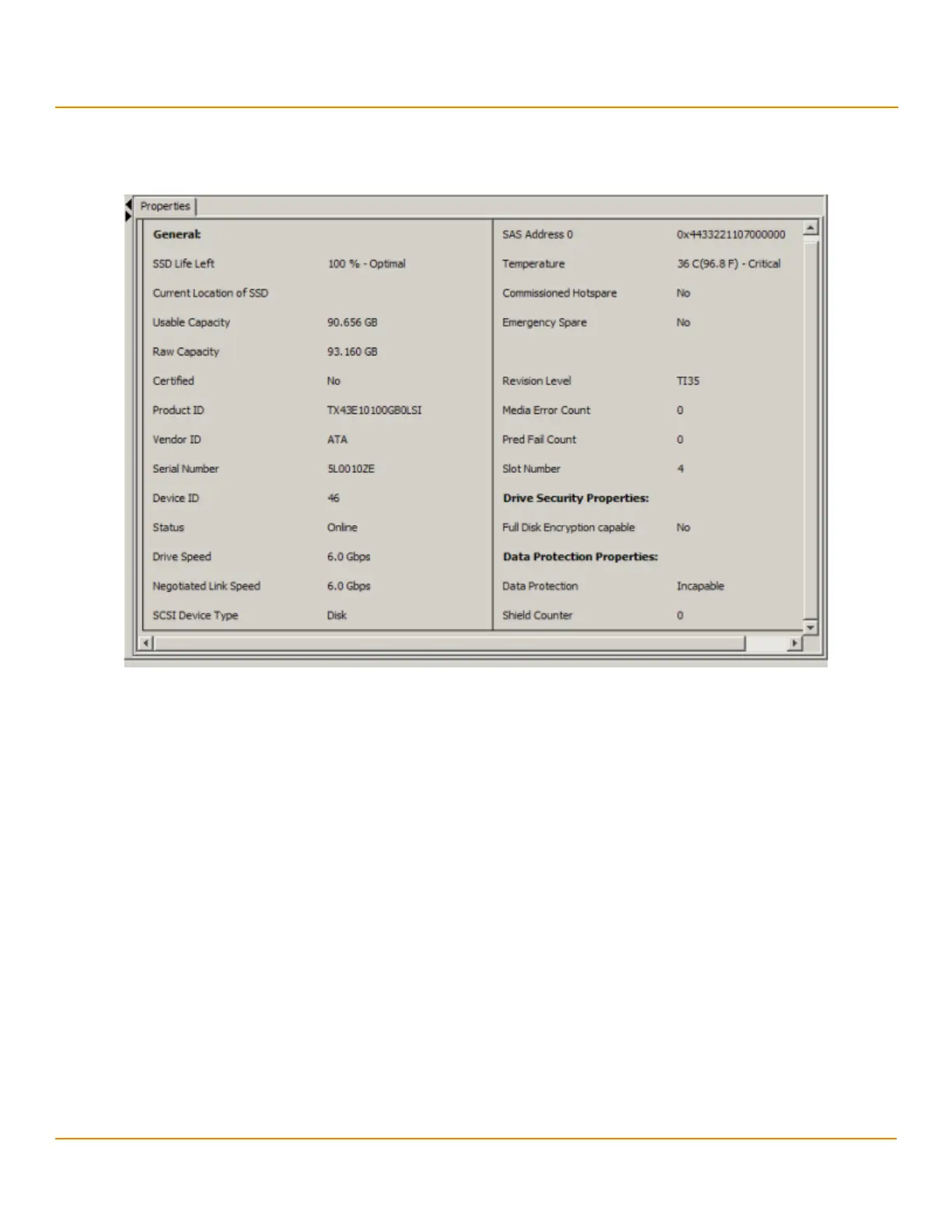

Figure 130 Physical Drive Properties of a Drive in Shield State
NOTE The Status of the drive must be of the Shield type.
8.5.7 Viewing Server Profile of a Drive in Shield State
Perform these steps to view the server properties of the drive in Shield state.
1. Click the Dashboard tab in the device tree.
2. Click the View Server Profile link in the dashboard view.
The server profile information is displayed, as shown in the following figure.
