Lenovo ThinkServer RD650 User Manual

LSI Corporation
- 91 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 4: Ctrl-R Utility
Managing Storage Configurations
CAUTION Make sure to back up the data before you run a consistency check, if
you think the data might be corrupted.
Perform the following steps to run a consistency check:
1. Navigate to a virtual drive in the VD Mgmt screen, and press the F2 key.
2. Navigate to Consistency Check, and press Enter.
3. Navigate to Start, and press Enter.
The consistency check starts and checks the redundant data in the virtual drive.

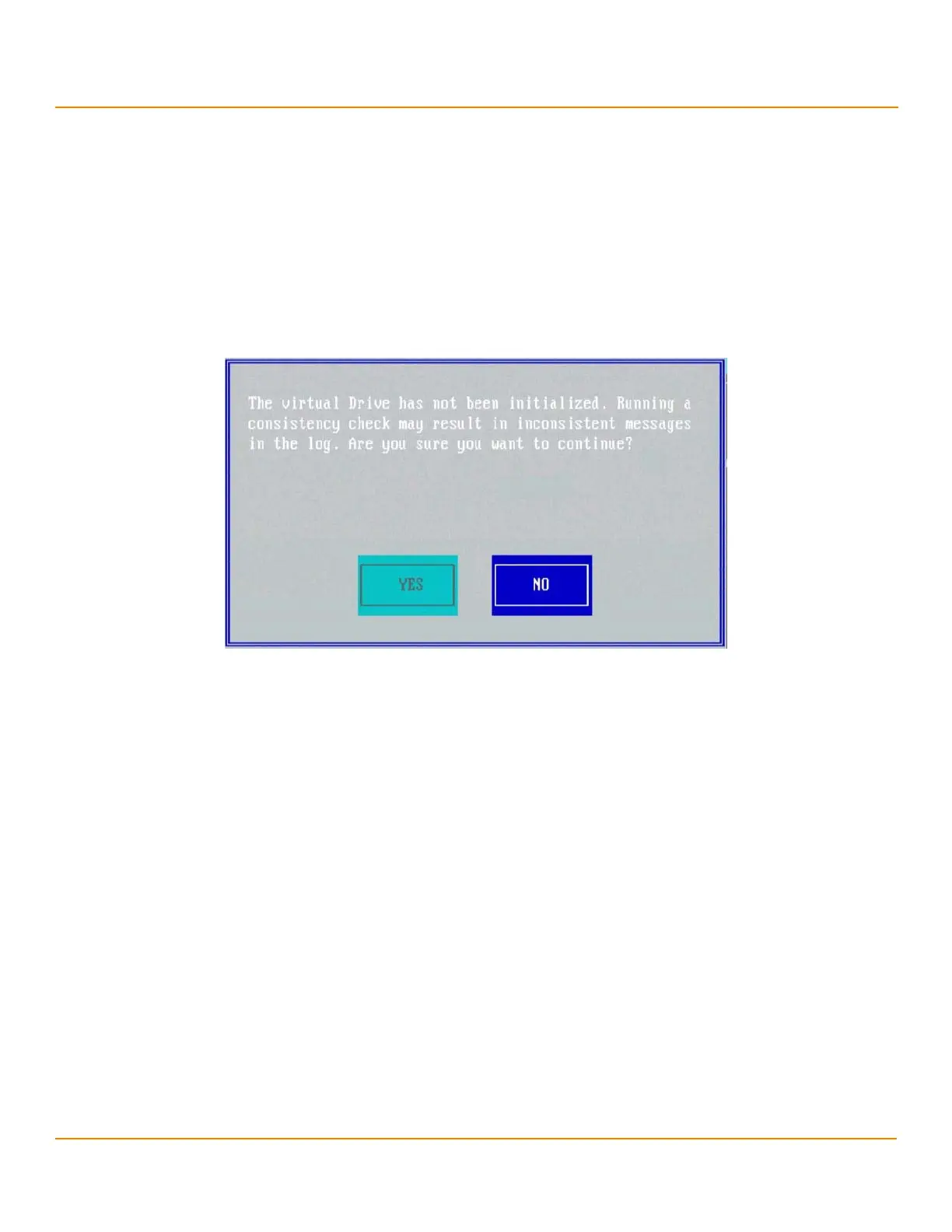

If you attempt to run a consistency check on a virtual drive that has not been initialized, a confirmation dialog
appears, asking for your confirmation.
Figure 63 Consistency Check
4. Press Ye s to run the consistency check.
4.14.3 Rebuilding a Physical Drive
If a drive in a redundant virtual drive (RAID 1, 5, 6, 10, 50, or 60) fails, you must rebuild that drive on a hot spare drive to
prevent data loss.
Perform the following steps to rebuild a physical drive:
1. Navigate to the Drive Management screen (in the PD Mgmt menu), and press the F2 key.
2. Select Rebuild, and press Enter.
The rebuild operation starts.
4.14.4 Performing a Copyback Operation
You can perform a copyback operation on a selected drive.
The copyback operation copies data from a source drive of a virtual drive to a destination drive that is not a part of the
virtual drive. The copyback operation often creates or restores a specific physical configuration for a drive group (for
example, a specific arrangement of drive group members on the device I/O buses).
Perform the following steps to perform the copyback operation:
1. Navigate to the Drive Management screen, navigate to a physical drive, and press the F2 key.
2. Navigate to Copyback, and press Enter.

Lenovo ThinkServer RD650 Specifications

General

HDD size	2.5 \
RAID support	Yes
HDD interface	Serial ATA III
Optical drive type	DVD±RW
Total storage capacity	600 GB
Maximum storage capacity	74 TB
Number of HDDs installed	2
Memory slots	24
Internal memory	16 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	768 GB
Flash memory	2048 MB
PCI Express slots version	3.0
PCI Express x8 (Gen 3.x) slots	8
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 (Including Hyper-V), Microsoft Windows Server 2012 (Including Hyper-V), Microsoft Windows Server 2008 R2 SP1 (Including Hyper-V), SUSE Linux Enterprise Server, Red Hat Enterprise Linux Server, VMware vSphere ESXi
Chassis type	Rack (2U)
Power supply	750 W
Number of redundant power supplies installed	1
Number of 3.5\" bays	0
Processor ARK ID	83352
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Tcase	72.6 °C
Bus type	QPI
Stepping	R2
Scalability	2S
Processor code	SR207
Processor cache	15 MB
Processor cores	6
Processor model	E5-2620V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	12
Processor codename	Haswell
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Configurable TDP-down	85 W
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Maximum number of PCI Express lanes	40
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 45 °C
USB 2.0 ports quantity	4
On-board graphics card model	Not available

Weight and Dimensions

Depth	762 mm
Width	482.6 mm
Height	87 mm
Weight	15875.73 g
