Lenovo ThinkServer RD650 - Setting Cache and Memory Properties

LSI Corporation
- 123 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 5: The HII Configuration Utility
Managing Controllers

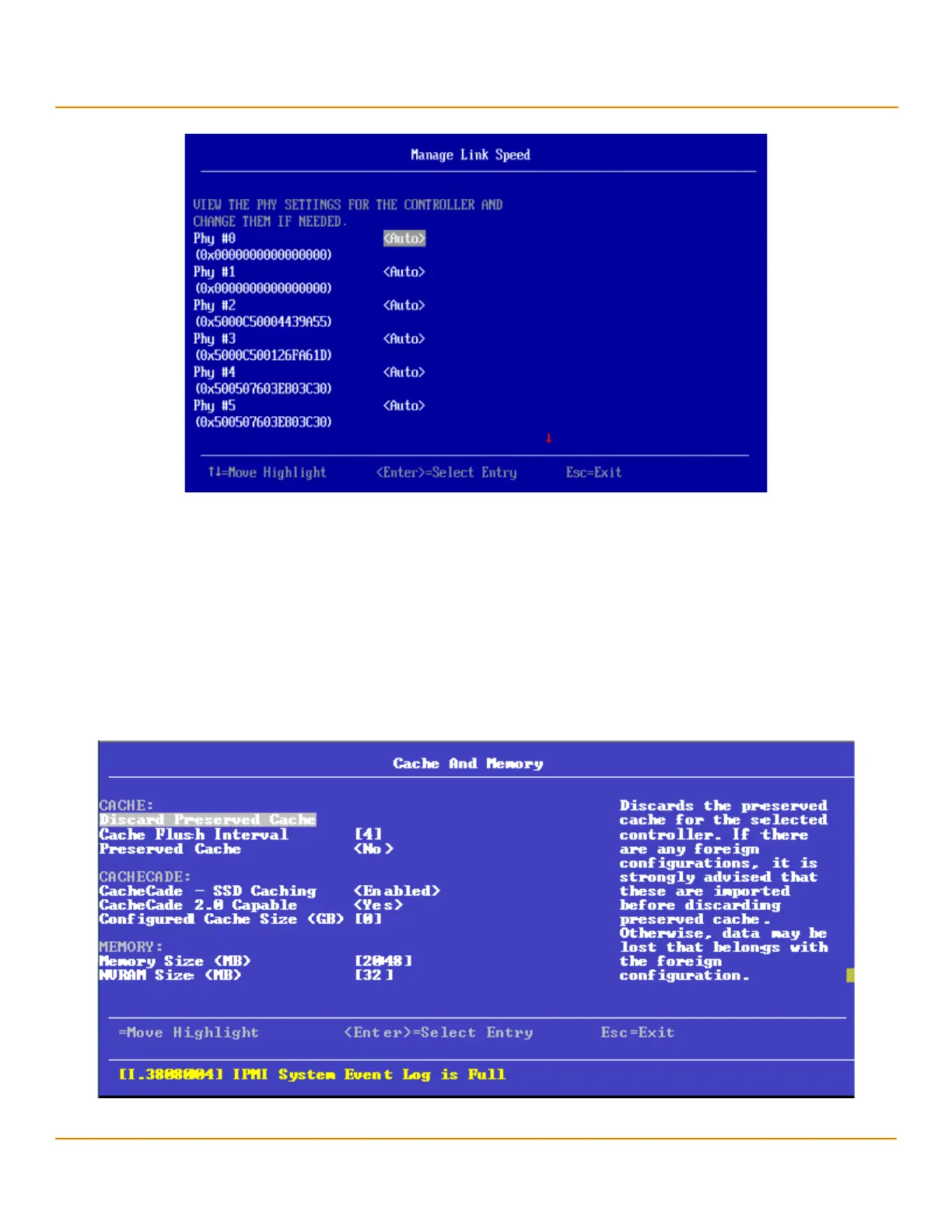

Figure 87 Manage Link Speed
Follow these steps to change the link speed for one or more phys:
1. Highlight the field to the right of the phy number and press Enter.
2. Select an option from the pop-up menu.
The link speed values are Auto,1.5 Gbps, 3.0 Gbps, or 6.0 Gbps.
3. Scroll to the bottom of the phy list, highlight OK, and press Enter.
5.4.10 Setting Cache and Memory Properties
The following dialog appears when you select Cache and Memory from the Advanced Controller Properties dialog.
Figure 88 Cache and Memory
