12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 5: The HII Configuration Utility
Managing Physical Drives
The Unassign Hotspare Drive warning message appears.
3. Highlight Confirm and press the spacebar to confirm the operation.
4. Highlight Ye s and press Enter.
A confirmation message appears.
5. Click OK to return to the Drive Management menu.
The drive that was formerly a hotspare now appears as Unconfigured Good.
NOTE To refresh the status of the drive displayed in the dialog, exit back to
the Main Menu and then re-enter the Drive Management dialog.
5.6.1.9 Initializing or Erasing a Drive
Follow these steps to initialize or erase the currently selected drive. An initialize operation fills the drive with zeroes.
An erase operation initializes the drive with a pattern of zeros and ones.
CAUTION All data on the drive is lost when you initialize it or erase it. Before
starting these operations, back up any data that you want to keep.
1. Open the popup drive operations menu, highlight Initialize Drive or Erase Drive, and press Enter.
2. If you select Drive Erase, highlight the Erase Mode field and press Enter.
3. Select Simple, Normal, or Thorough from the pop-up menu and press Enter.
4. Highlight Go and press Enter.
The Initialize Virtual Drive message appears. (The message is similar to that of erasing a drive.)
5. Highlight Confirm and press the spacebar to confirm the operation.
6. Highlight Ye s and press Enter.
A message appears indicating that the initialization or erase operation has started.
7. Highlight Ye s and press Enter to return to the previous window.
This dialog now displays a progress field and a Stop command, as shown in the following figure.

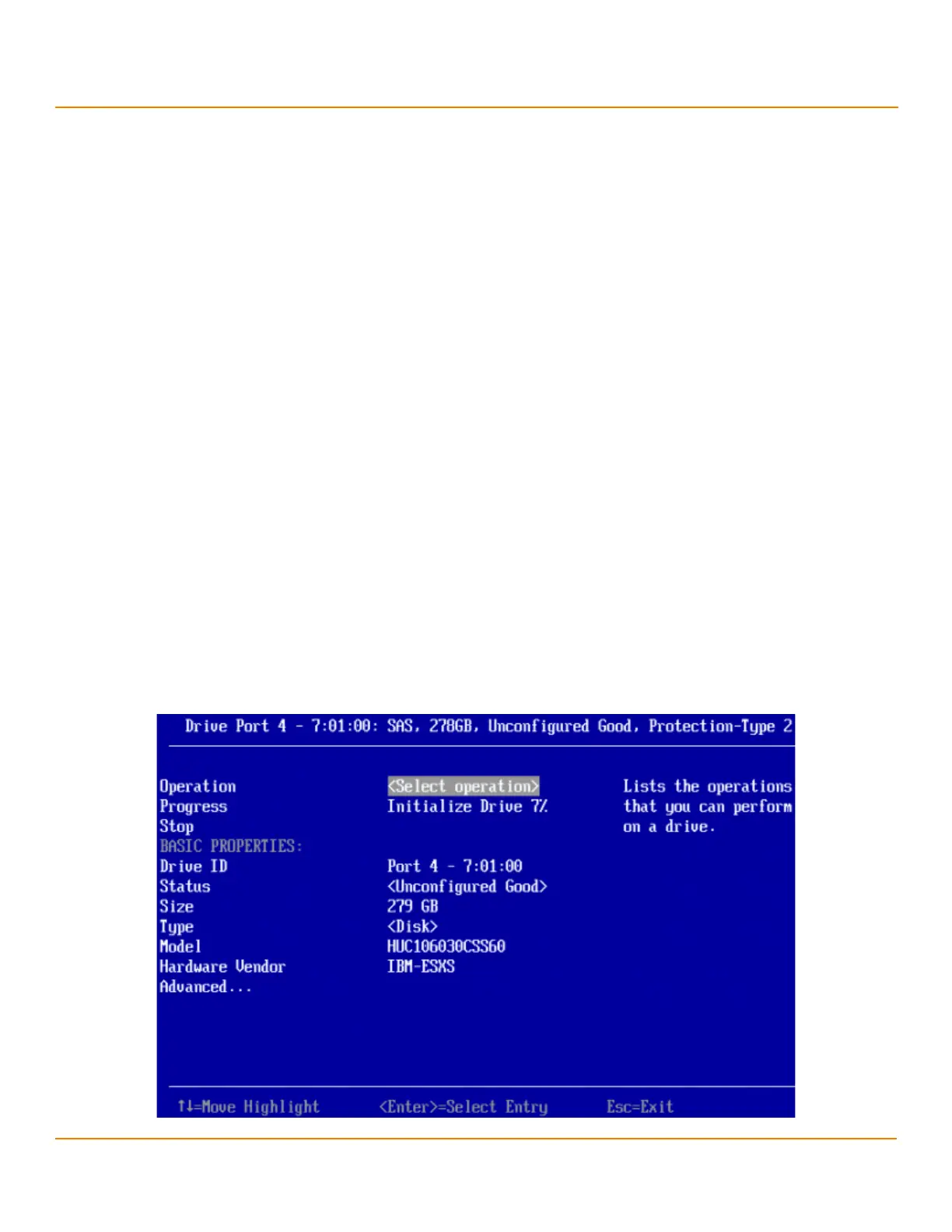

Figure 107 Initialize Progress Indicator

Lenovo ThinkServer RD650 Specifications

General

HDD size	2.5 \
RAID support	Yes
HDD interface	Serial ATA III
Optical drive type	DVD±RW
Total storage capacity	600 GB
Maximum storage capacity	74 TB
Number of HDDs installed	2
Memory slots	24
Internal memory	16 GB
Memory clock speed	2133 MHz
Internal memory type	DDR4-SDRAM
Maximum internal memory	768 GB
Flash memory	2048 MB
PCI Express slots version	3.0
PCI Express x8 (Gen 3.x) slots	8
Operating system installed	No
Compatible operating systems	Microsoft Windows Server 2012 R2 (Including Hyper-V), Microsoft Windows Server 2012 (Including Hyper-V), Microsoft Windows Server 2008 R2 SP1 (Including Hyper-V), SUSE Linux Enterprise Server, Red Hat Enterprise Linux Server, VMware vSphere ESXi
Chassis type	Rack (2U)
Power supply	750 W
Number of redundant power supplies installed	1
Number of 3.5\" bays	0
Processor ARK ID	83352
Intel Secure Key Technology version	1.00
Intel Identity Protection Technology version	0.00
Tcase	72.6 °C
Bus type	QPI
Stepping	R2
Scalability	2S
Processor code	SR207
Processor cache	15 MB
Processor cores	6
Processor model	E5-2620V3
System bus rate	8 GT/s
Processor series	Intel Xeon E5-2600 v3
Processor socket	LGA 2011-v3
Processor threads	12
Processor codename	Haswell
Processor frequency	2.4 GHz
Processor cache type	Smart Cache
Configurable TDP-down	85 W
Processor lithography	22 nm
Processor manufacturer	Intel
Processor package size	52.5 x 45 mm
Processor front side bus	- MHz
Processor boost frequency	3.2 GHz
Processor operating modes	64-bit
PCI Express configurations	x4, x8, x16
Supported instruction sets	AVX
Maximum number of PCI Express lanes	40
Memory channels supported by processor	Quad
Memory clock speeds supported by processor	1600, 1866 MHz
Memory bandwidth supported by processor (max)	59 GB/s
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 45 °C
USB 2.0 ports quantity	4
On-board graphics card model	Not available

Weight and Dimensions

Depth	762 mm
Width	482.6 mm
Height	87 mm
Weight	15875.73 g
