LSI Corporation
- 130 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 5: The HII Configuration Utility
Managing Virtual Drives
6. Click Yes to continue with the firmware update.
Once the controller is successfully updated with the new firmware code, a message box appears stating the same.
Highlight OK and press Enter in the message box to return to the Controller Management dialog.
5.5 Managing Virtual Drives
When you select Virtual Drive Management on the Main Menu, the Virtual Drive Management dialog appears, as
shown in the following figure.

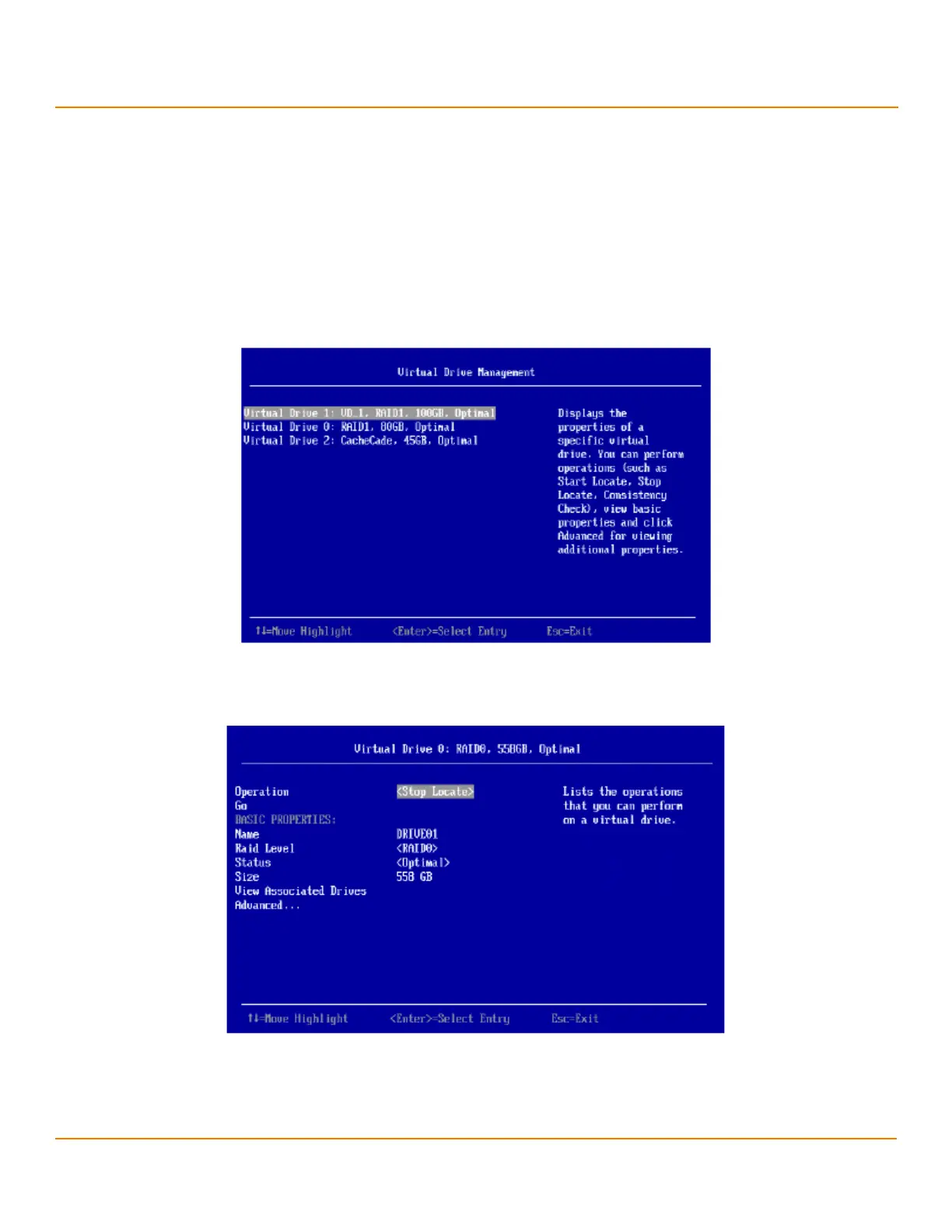

Figure 95 Virtual Drive Management
The menu lists all the virtual drives that currently exist on the controller. Highlight the virtual drive you want to
manage and press Enter. The following dialog appears.
Figure 96 Virtual Drive Management
This dialog lists the following basic virtual drive properties.
