Chapter 5: The HII Configuration Utility
Managing Controllers
Table 25 Basic Controller Properties
5.4.1 Viewing Advanced Controller Management Options
The Advanced Controller Management dialog lists all the controller management properties and also includes
options for performing various actions on the controller.

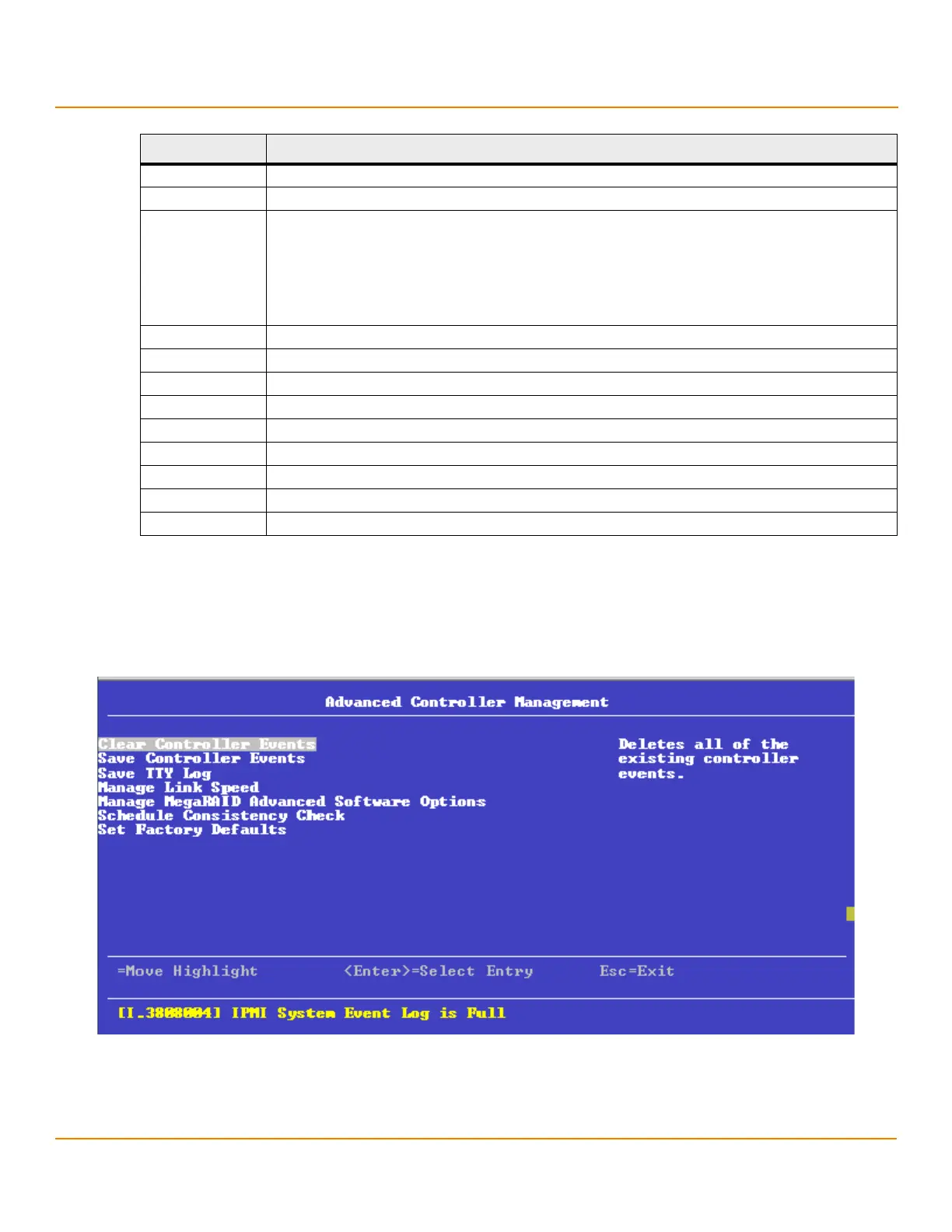

Figure 78 Advanced Controller Management
The following table describes all of the entries on the Advanced Controller Management dialog, including the ones
that are not visible.
Property Description
Product Name The marketing name of the controller.
Serial Number The serial number of the controller.
Controller Status The cumulative status of virtual drives and physical drives connected to the controller, plus the backup
battery, the enclosure and the NVDATA. The status is one of the following:
Optimal, if all components are operating normally.
Needs Attention, if any component needs attention.
Safe Mode, if the controller encountered critical errors. Most features are disabled and the controller
requires user attention.
Select Boot Device This field selects the primary boot device.
PCI ID The PCI ID of the controller.
PCI Slot Number The slot ID number of the PCI slot where the controller is installed.
Package Version The version number of the package.
Firmware Version The version number of the controller firmware.
NVDATA Version The version number of the controller NVDATA.
Connector Count Number of host data ports, connectors, or both currently in use on this controller.
Drive Count Number of physical drives attached to this controller.
Virtual Drive Count Number of virtual drives defined on this controller
