LSI Corporation

- 343 -

12Gb/s MegaRAID SAS Software User Guide

March 2014

Chapter 12: Using MegaRAID Advanced Software

Using the MegaRAID CacheCade Pro 2.0 Software

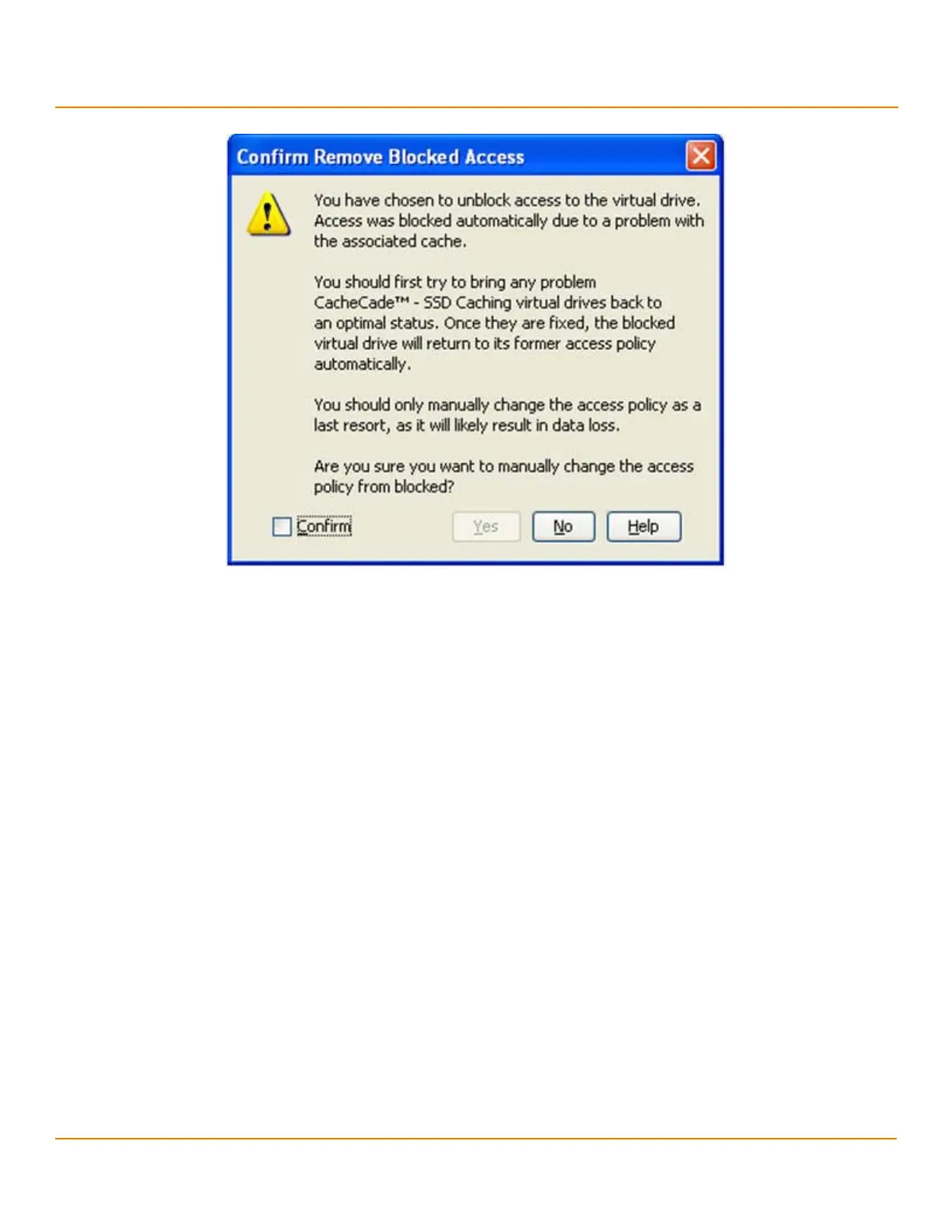

Figure 227 Confirm Remove Blocked Access

2. Select the Confirm check box, and click Ye s .

12.10.8 Deleting a Virtual Drive with SSD Caching Enabled

You can delete a virtual drive that has SSD caching enabled on it.

Perform the following steps to delete the virtual drive:

1. Perform one of these actions:

— Right-click on a CacheCade virtual drive, and select Delete Virtual Drive.

— Select a CacheCade virtual drive and click Go To > Virtual Drive > Delete Virtual Drive.

The Confirm Delete Virtual Disk dialog appears, as shown in the following figure.
