Chapter 9: Configuration
Creating a New Configuration
9.1.5 Creating a Virtual Drive Using Advanced Configuration
The advanced configuration procedure provides an easy way to create a new storage configuration. Advanced
configuration gives you greater flexibility than simple configuration because you can select the drives and the virtual
drive parameters when you create a virtual drive. In addition, you can use the advanced configuration procedure to
create spanned drive groups.
Follow these steps to create a new storage configuration in the advanced configuration mode. This example shows
the configuration of a spanned drive group.
1. Perform either of the following steps to bring up the Configuration wizard:
— Right-click the controller node in the device tree in the left frame of the MegaRAID Storage Manager
window, and select Create Virtual Drive.
— Select the controller node, and select Go To > Controller > Create Virtual Drive in the menu bar.
The dialog for the choosing the configuration mode (simple or advanced) appears, as shown in the following
figure.

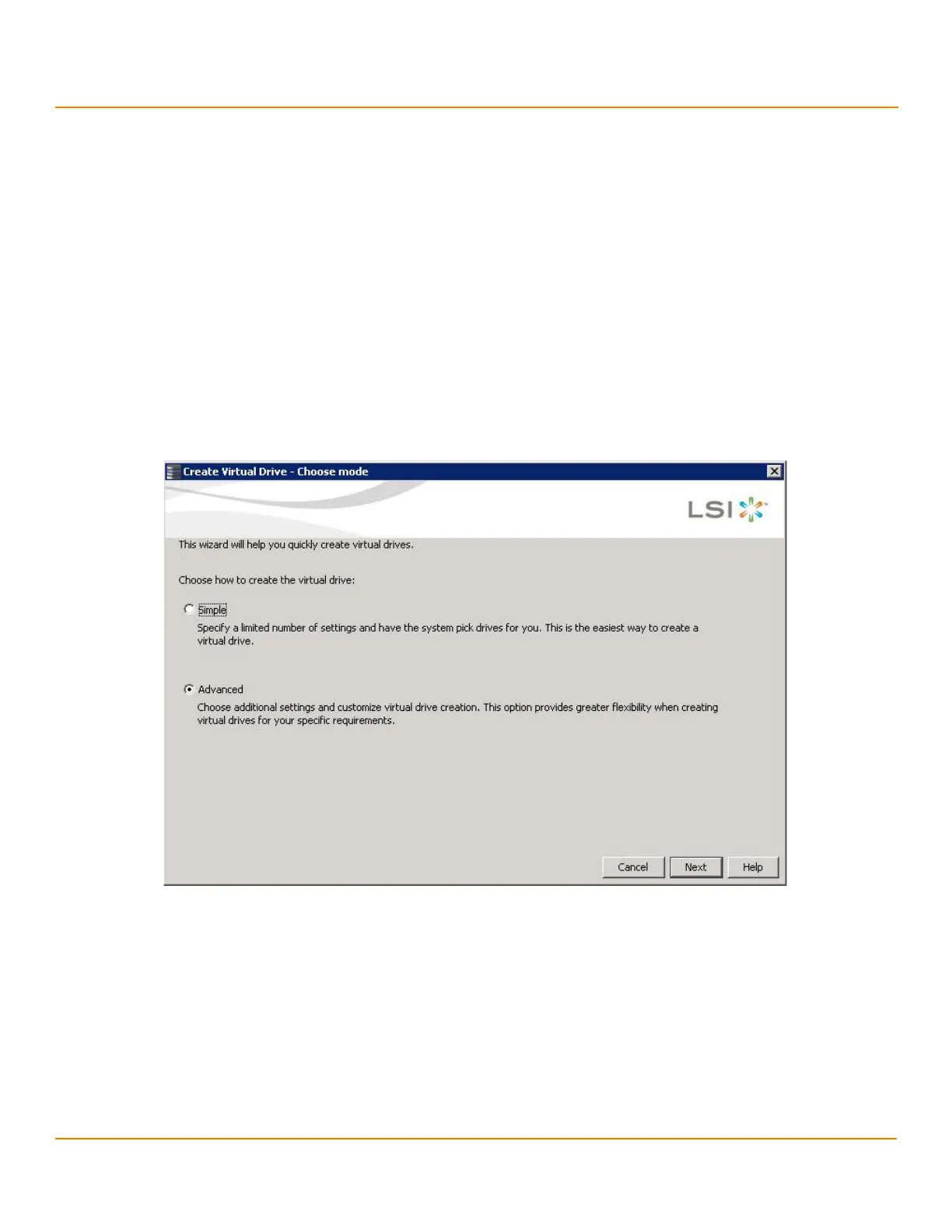

Figure 157 Create Virtual Drive - Choose mode Dialog
2. Select the Advanced radio button, and click Next.
The Create Drive Group Settings window appears, as shown in the following figure.
