LSI Corporation

- 329 -

12Gb/s MegaRAID SAS Software User Guide

March 2014

Chapter 12: Using MegaRAID Advanced Software

Activating an Unlimited Key over a Trial Key

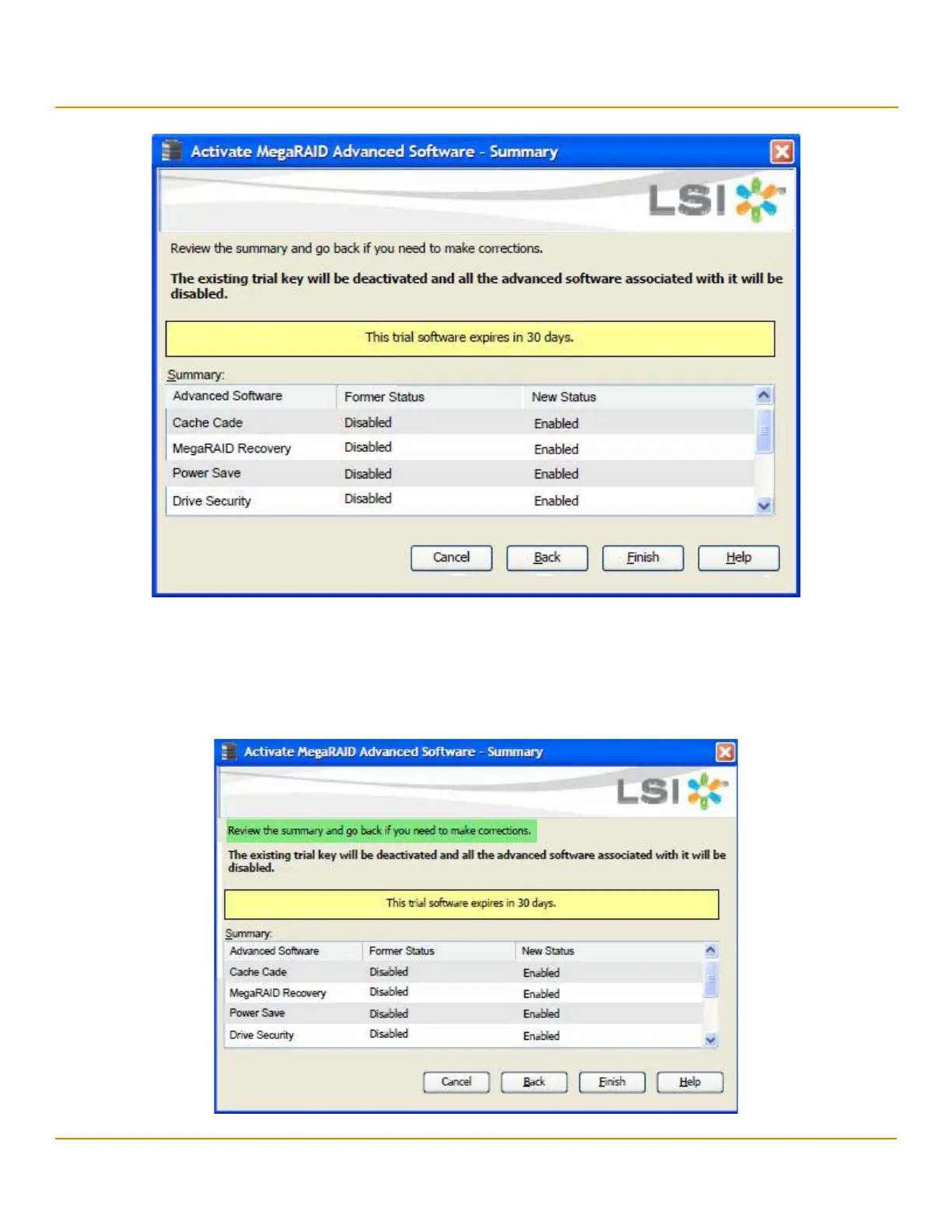

Figure 210 Activating a Trial Software

12.7.2 Activating an Unlimited Key

When you activate an unlimited key or a trial key, a message Review the summary and go back if you

need to make corrections appears (indicated in green text in the following figure).

Figure 211 Activating an Unlimited Key
