Lenovo ThinkServer RD650 - Adding a Drive or Drives to a Configuration

LSI Corporation
- 280 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 9: Configuration
Changing a Virtual Drive Configuration

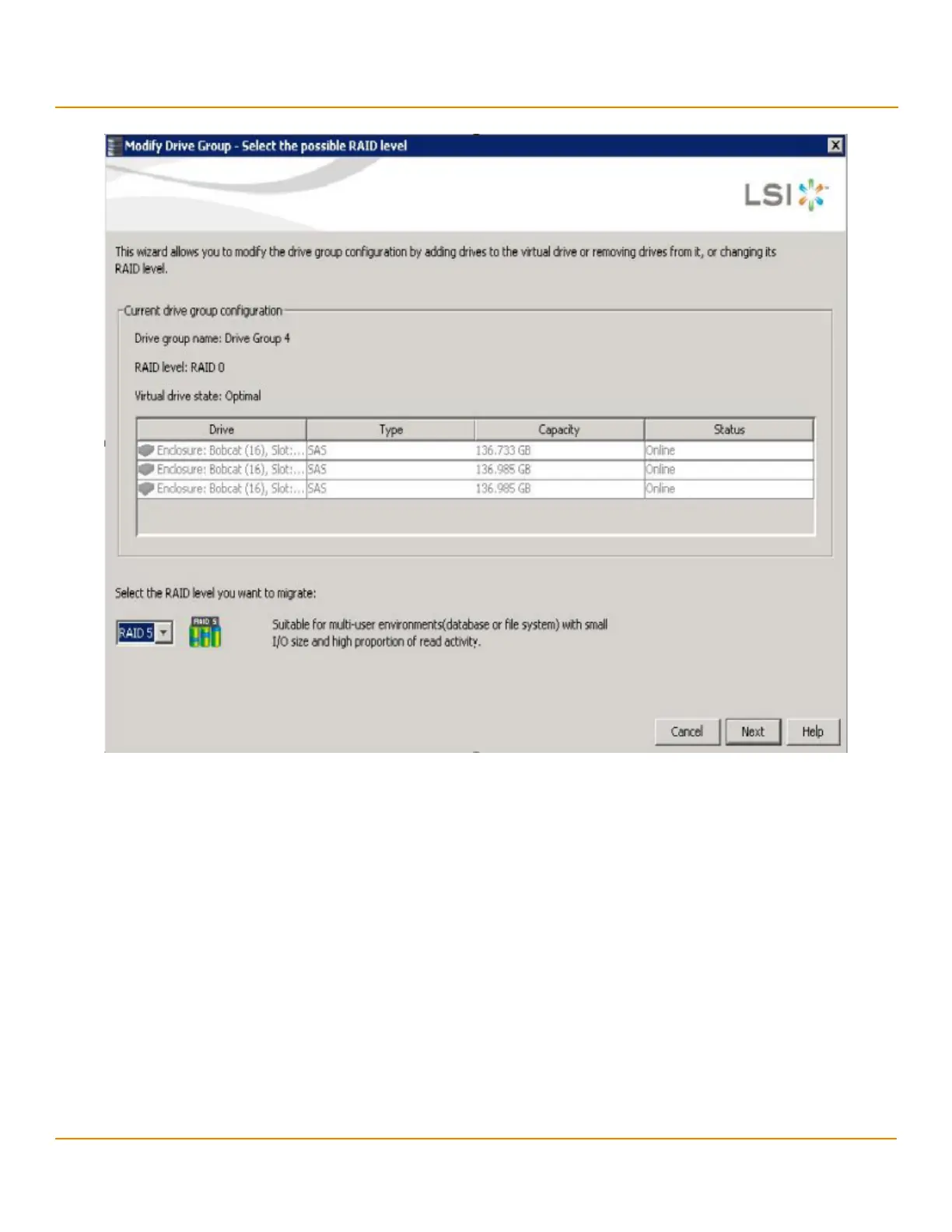

Figure 170 Modify Drive Group Wizard Window
The following sections explain the Modify Drive Group wizard options.
9.8.2 Adding a Drive or Drives to a Configuration
CAUTION Be sure to back up the data on the virtual drive before you add a drive
to it.
Follow these steps to add a drive or drives to a configuration with the Modify Drive Group wizard.
1. Click the Logical tab in the left panel of the MegaRAID Storage Manager window.
2. Select a drive group in the left panel of the window.
3. Either select Go To > Drive Group > Modify Drive Group on the menu bar, or right-click the virtual drive icon to
access the Modify Drive Group wizard.
The Modify Drive Group wizard window appears.
