Chapter 5: The HII Configuration Utility
Managing Configurations

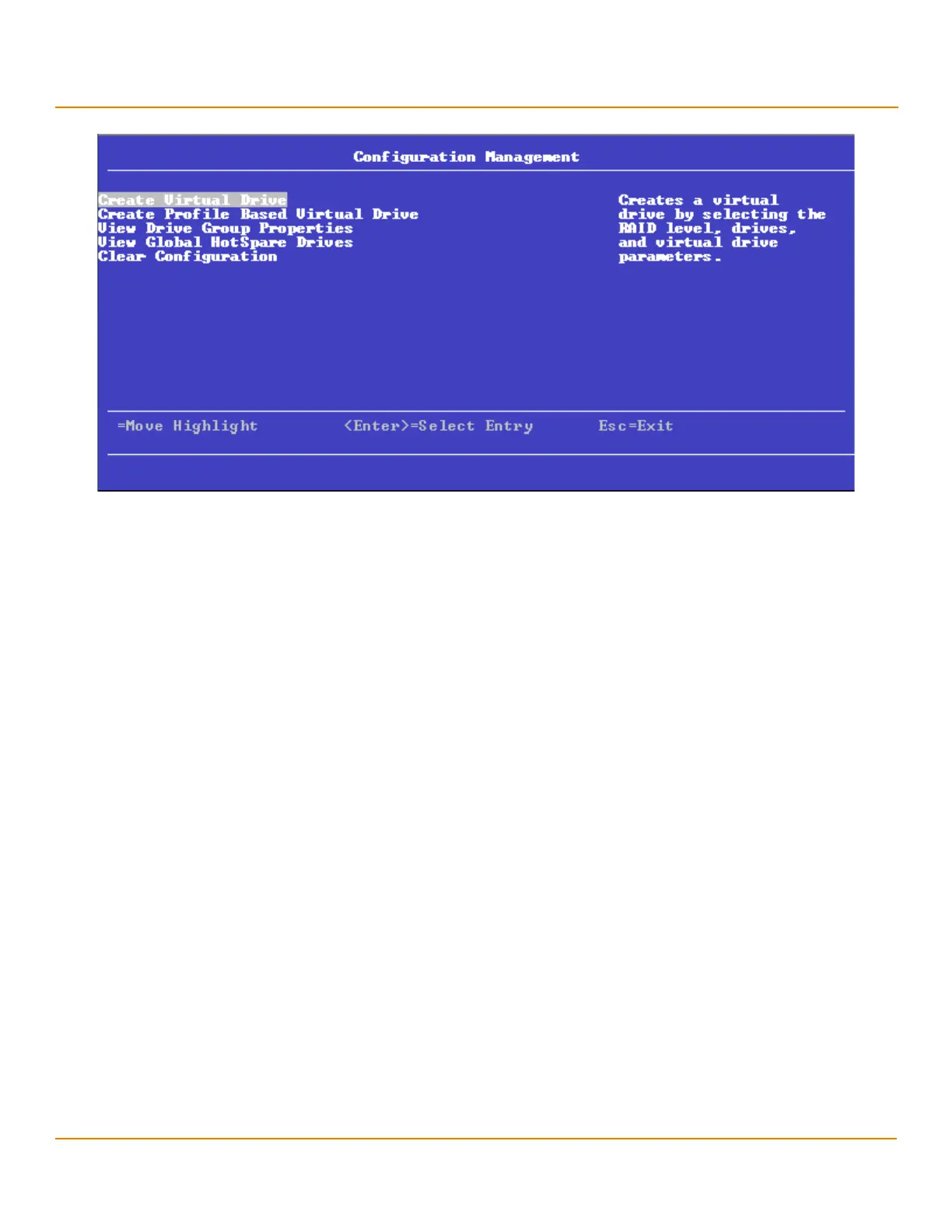

Figure 66 Configuration Management
The following sections explain each configuration management option.
NOTE Only the first two menu options appear if no virtual drives have been
created on this controller. The Make JBOD and Make Unconfigured
Good options are included for some controllers. (See Make
Unconfigured Good and Make JBOD.)
The Manage Foreign Configuration option is included for some
configurations. (See Managing Foreign Configurations.)
5.3.1 Creating a Virtual Drive from a Profile
To create a virtual drive from a profile, perform the following steps:
1. Select Configuration Management from the Main Menu.
2. Select Create Profile Based Virtual Drive from the Configuration Management menu.
3. Select Generic RAID 0 from the Create Virtual Drive menu.
4. Choose an option from the Drive Selection Criteria field (if there is more than one option).
5. Select Save Configuration to create the chosen profile.
The Create Virtual Drive dialog appears when you select Create Profile Based Virtual Drive from the
Configuration Management menu.
6. Select a RAID level profile for the virtual drive from the list.
The available RAID levels are listed in the help text of the Create Configuration dialog. Some system
configurations do not support all these RAID levels.
The Generic R0 dialog appears after selecting a RAID level profile.
The small red arrow at the bottom of the dialog indicates that you can scroll down to view more information.
NOTE The red arrow appears when there is too much information to display
in one window. The amount of information that can be displayed in
one window depends on the capabilities of the HII browser. The Save
Configuration option is not displayed in the previous figure.
