Lenovo ThinkServer RD650 - Managing Advanced Software Summary

LSI Corporation
- 55 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 4: Ctrl-R Utility
Managing Software Licensing

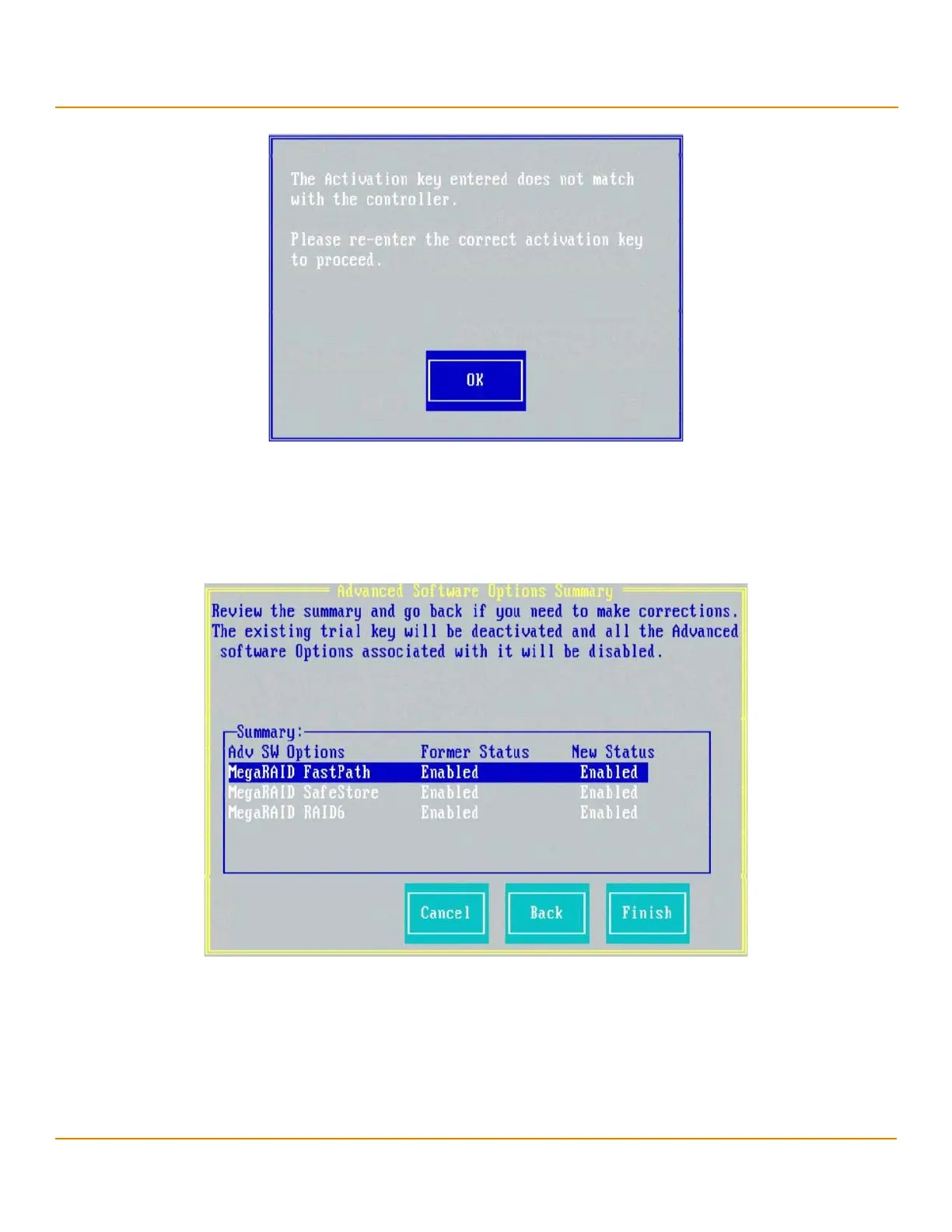

Figure 25 Activation Key Mismatch Message
4.6.2 Managing Advanced Software Summary
When you click Activate in Manage MegaRAID Advanced Software Options dialog, the Advanced Software
Options Summary dialog appears, as shown in the following figure.
Figure 26 Advanced Software Options Summary
The Summary box shows the list of the advanced software options along with their former status and new status.
 The Advanced SW Options column shows the currently available software in the controller.
 The Former Status column shows the status of the available advanced software before you enter the activation
key.
 The New Status column shows the status of the available advanced software, after you enter the activation key.
