Chapter 8: MegaRAID Storage Manager Window and Menus
MegaRAID Storage Manager Main Menu

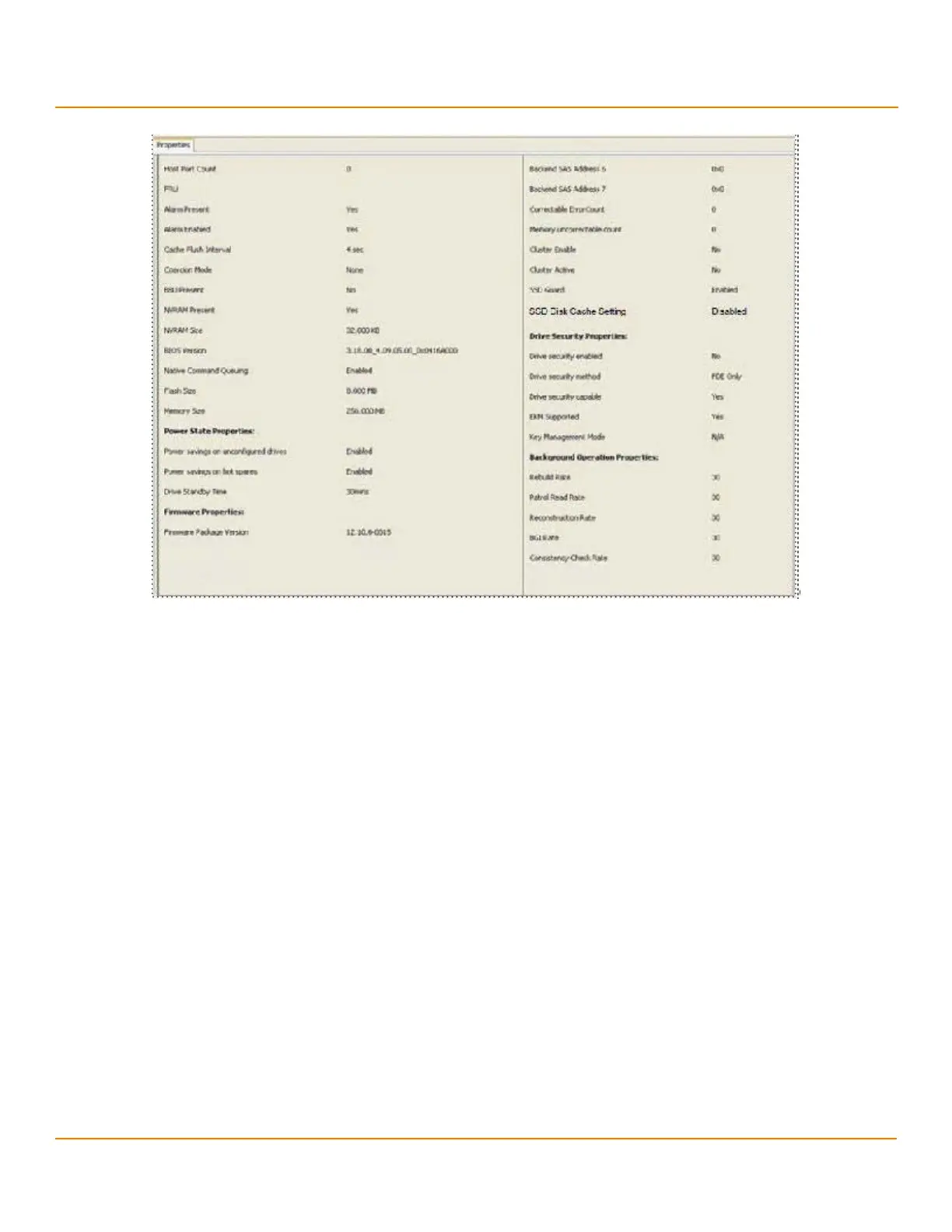

Figure 138 Controller Properties – SSD Disk Cache Policy
8.5.10.1 Virtual Drive Settings
If the SSD cache property is enabled in the controller properties screen as shown in Controller Properties – SSD Disk
Cache Policy, then you cannot select the disk cache policy for the virtual drives having only SSD drives or a mix of SSD
drives and HDD drives during virtual drive creation. The value of the disk cache policy is unchanged and the
drop-down menu is disabled.
Follow these steps to view the virtual drive settings.
1. Right-click the controller node in the device tree.
2. Select the Create Virtual Drive menu option.
3. Select Advanced Configuration, and click Next.
4. Create Drive Group, and click Next.
The Create Virtual Drive – Virtual drive settings dialog appears, as shown in the following figure.
