Chapter 8: MegaRAID Storage Manager Window and Menus
MegaRAID Storage Manager Main Menu

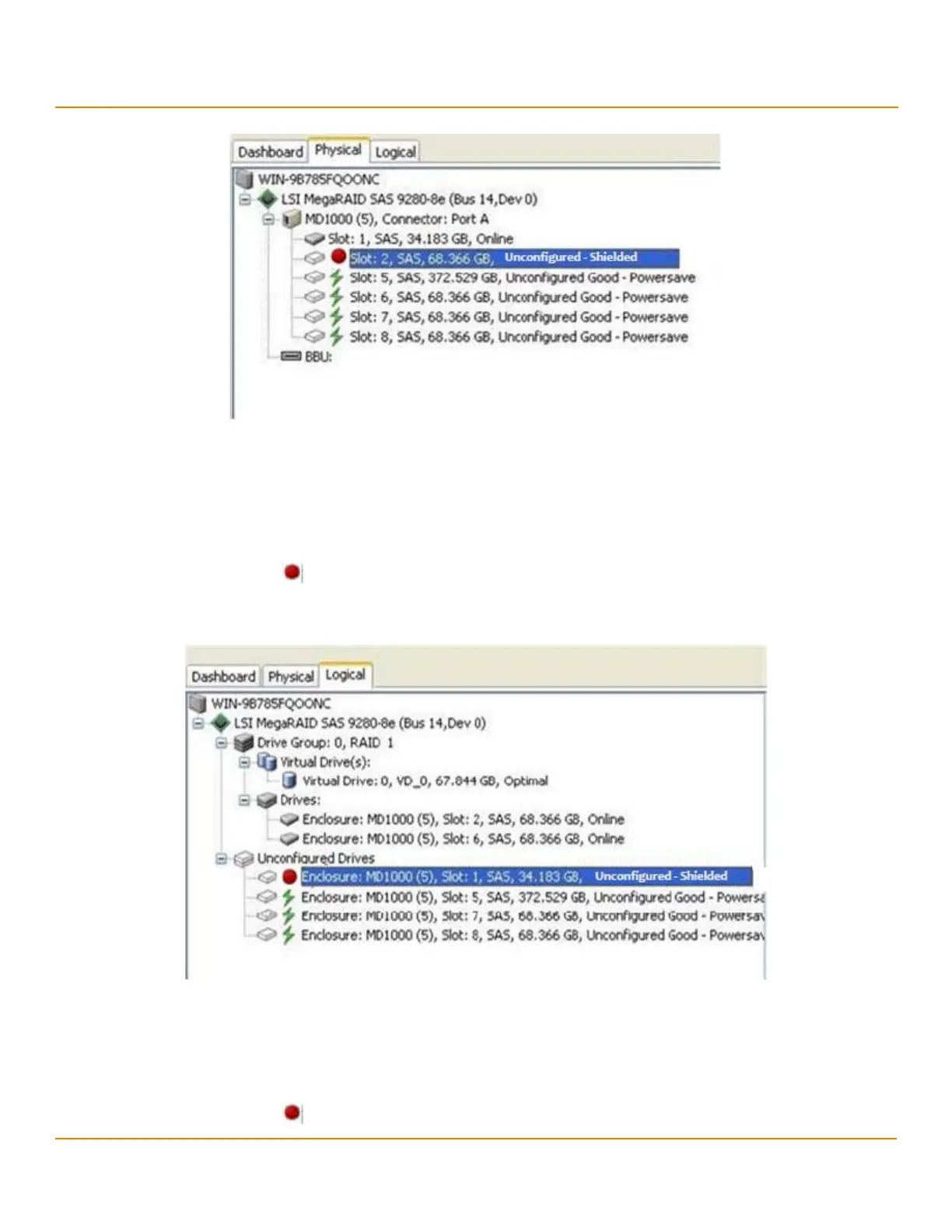

Figure 128 Physical View Shield State
8.5.5 Logical View Shield State
Follow these steps to view the Shield state under the Logical tab.
1. Click the Logical tab in the device tree.
The red dot icon ( ) indicates a Shield state.
The Logical view Shield state is shown in the following figure.
Figure 129 Logical View Shield State
8.5.6 Viewing the Physical Drive Properties
Follow these steps to view the physical properties of the drive in the Shield state.
1. Click the Physical tab or Logical tab in the device tree.
The red dot icon ( ) indicates a Shield state.
