Chapter 4: Ctrl-R Utility
Ctrl-R Utility Menus

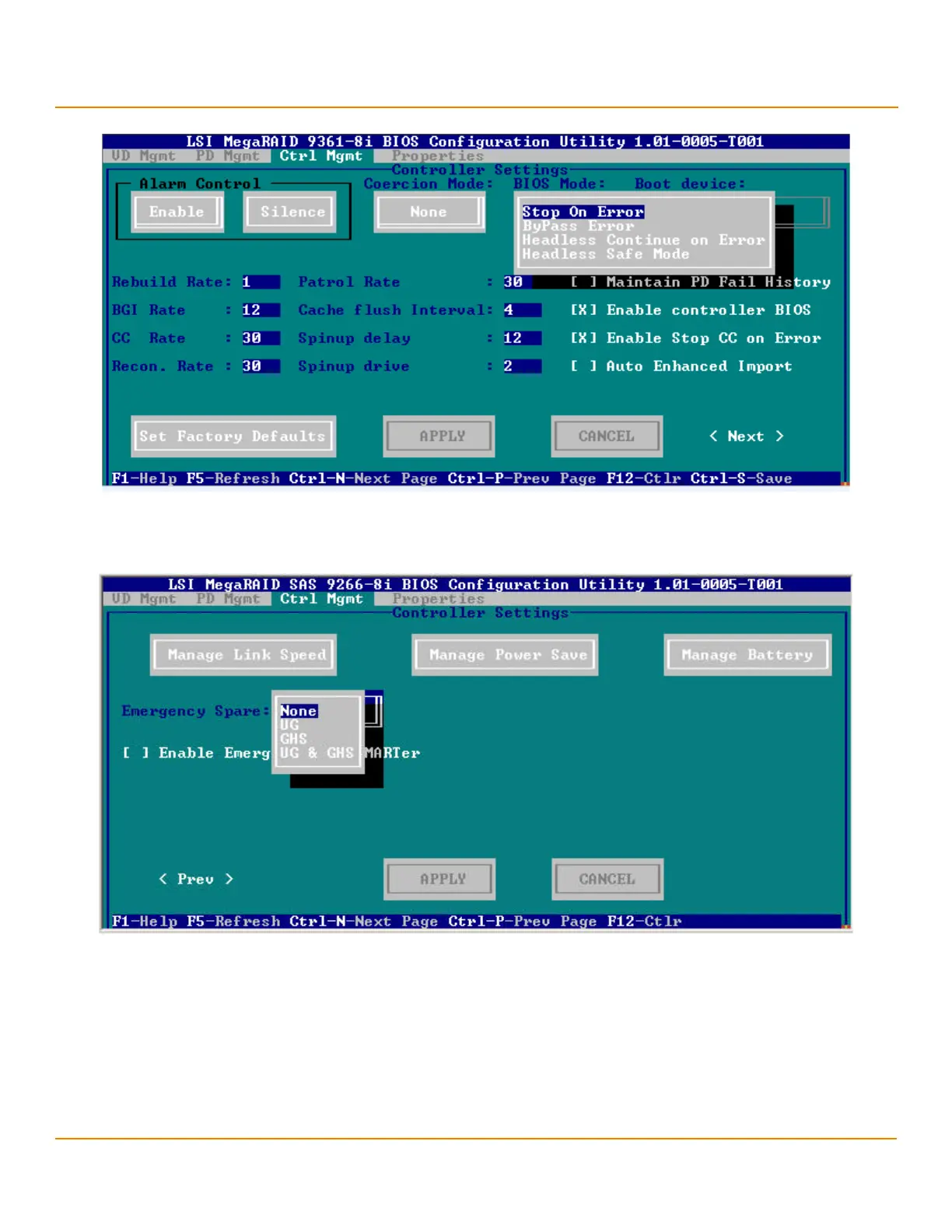

Figure 17 Controller Settings – First Screen
In the second screen (as shown in the following figure), you can perform tasks, such as changing the link speed, the
power save, and the battery settings of the controller.
Figure 18 Controller Settings – Second Screen
4.5.4 Properties Menu
The Properties menu shows all of the properties of the active controller. The Properties menu consists of two
screens. The information shown in these screens is read only.
In the first screen (as shown in the following figure), you can view properties, such as controller status, firmware
version, BIOS version, and metadata size.
