LSI Corporation
- 282 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 9: Configuration
Changing a Virtual Drive Configuration

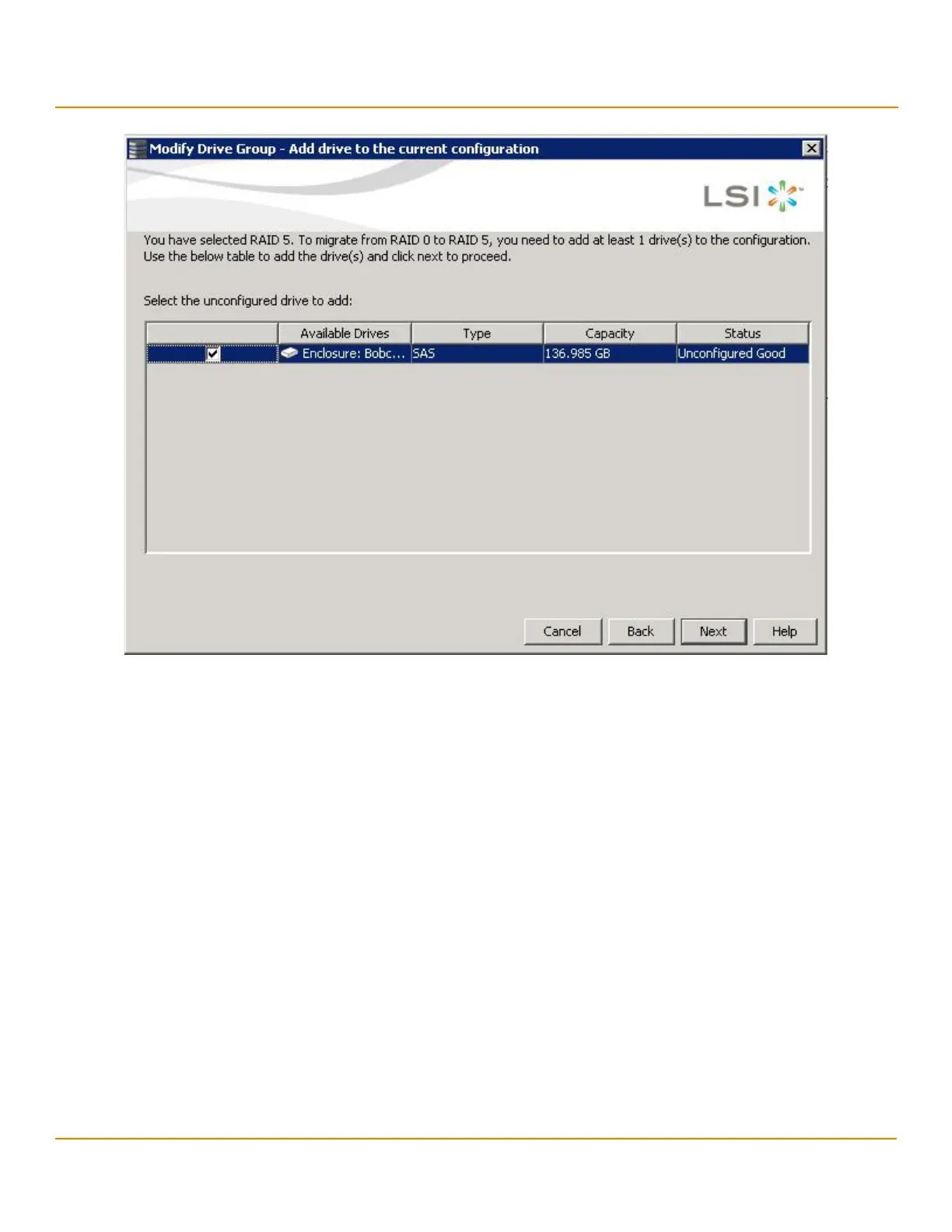

Figure 172 Modify Drive Group – Add Drives to the Current Configuration Window
5. Click the check box next to any unconfigured drives that you want to add, and then click Next.
NOTE The drives you add must have the same capacity as or greater capacity
than the drives already in the drive group, or you cannot change the
RAID level.
The Modify Drive Group - Summary window appears. This window shows the current settings and what the
settings will be after the drives are added.
