LSI Corporation
- 138 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 5: The HII Configuration Utility
Managing Virtual Drives
NOTE The properties and options shown in the dialog apply to the currently
selected virtual drive. To manage properties for a different virtual
drive, press Esc until you return to the Virtual Drive Selection menu,
select the desired virtual drive, and navigate back to this dialog.

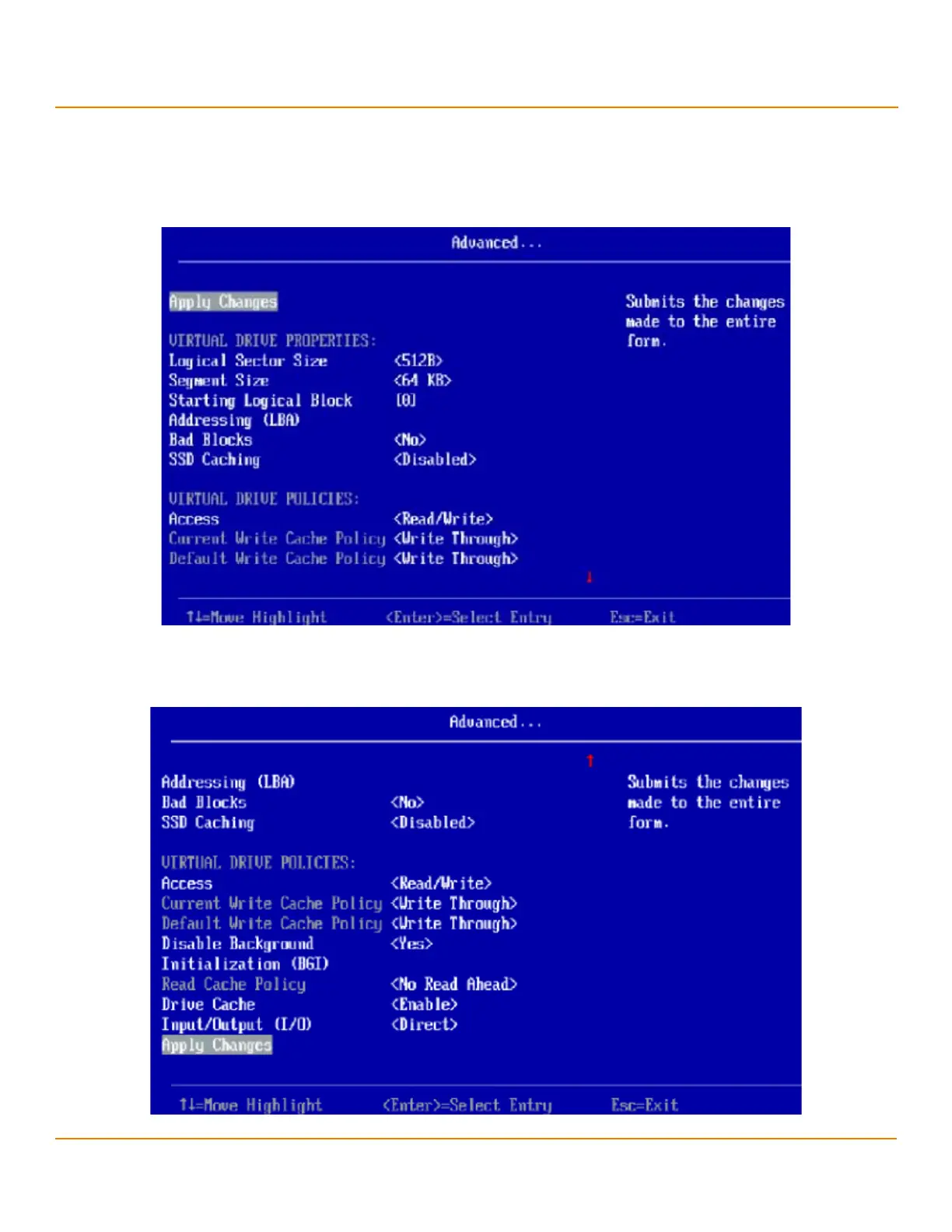

Figure 101 Advanced Virtual Drive Properties 1
The small red arrow at the bottom of the dialog indicates that you can scroll down to view more virtual drive
properties and virtual drive policies, as shown in the following figure.
Figure 102 Advanced Virtual Drive Properties 2
