Chapter 9: Configuration
Creating a New Configuration
procedure described in Creating a Virtual Drive Using Advanced
Configuration.
Follow these steps to create a new storage configuration in simple configuration mode.
1. Perform either of the following steps:
— Right-click the controller node in the device tree in the left frame of the MegaRAID Storage Manager
window, and select Create Virtual Drive.
— Select the controller node, and select Go To > Controller > Create Virtual Drive in the menu bar, as shown
in the following figure.

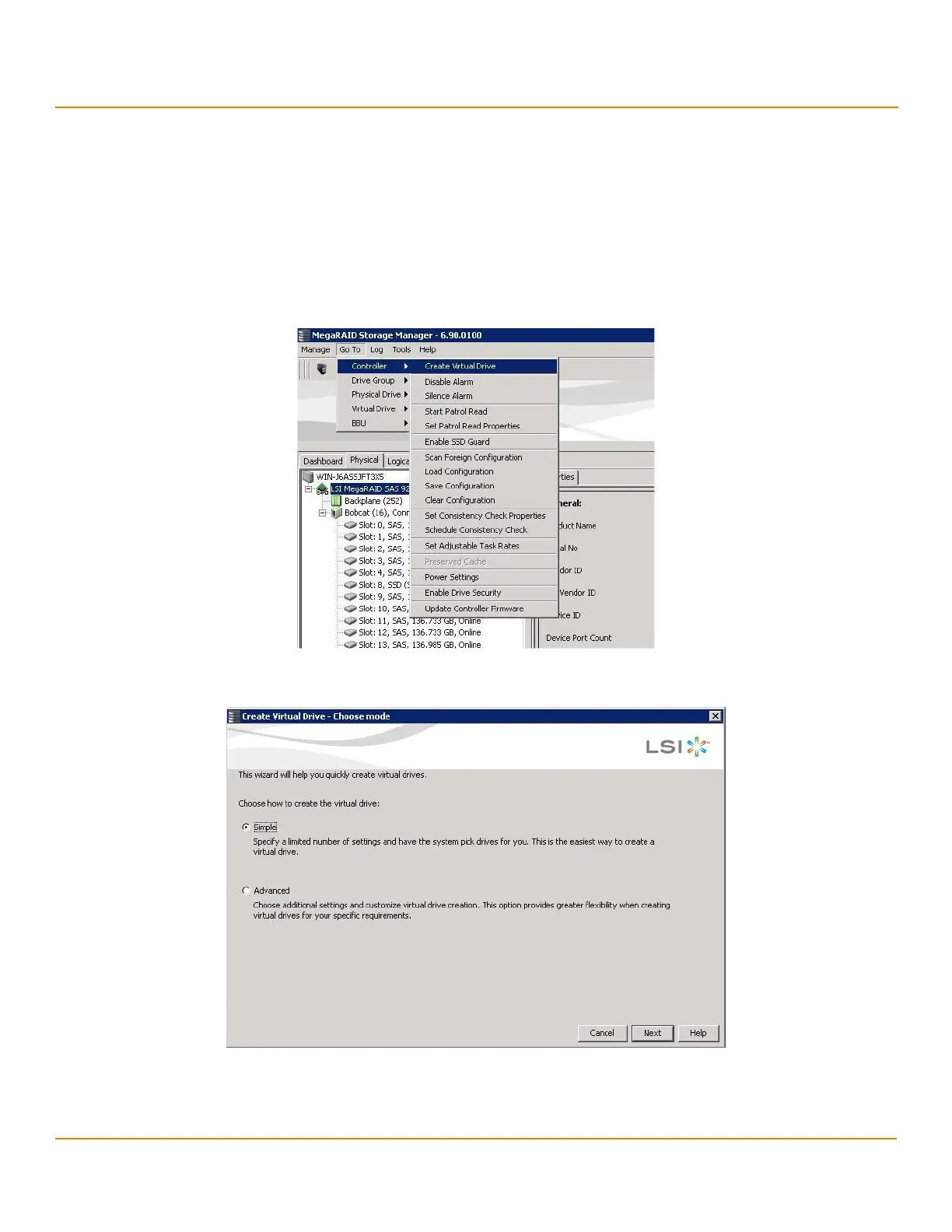

Figure 152 Create Virtual Drive Menu Option
The dialog for the configuration mode (simple or advanced) appears, as shown in the following figure.
Figure 153 Create Virtual Drive - Choose mode
2. Select the Simple radio button, and click Next.
