- 286 -

12Gb/s MegaRAID SAS Software User Guide

March 2014

Chapter 9: Configuration

Changing a Virtual Drive Configuration

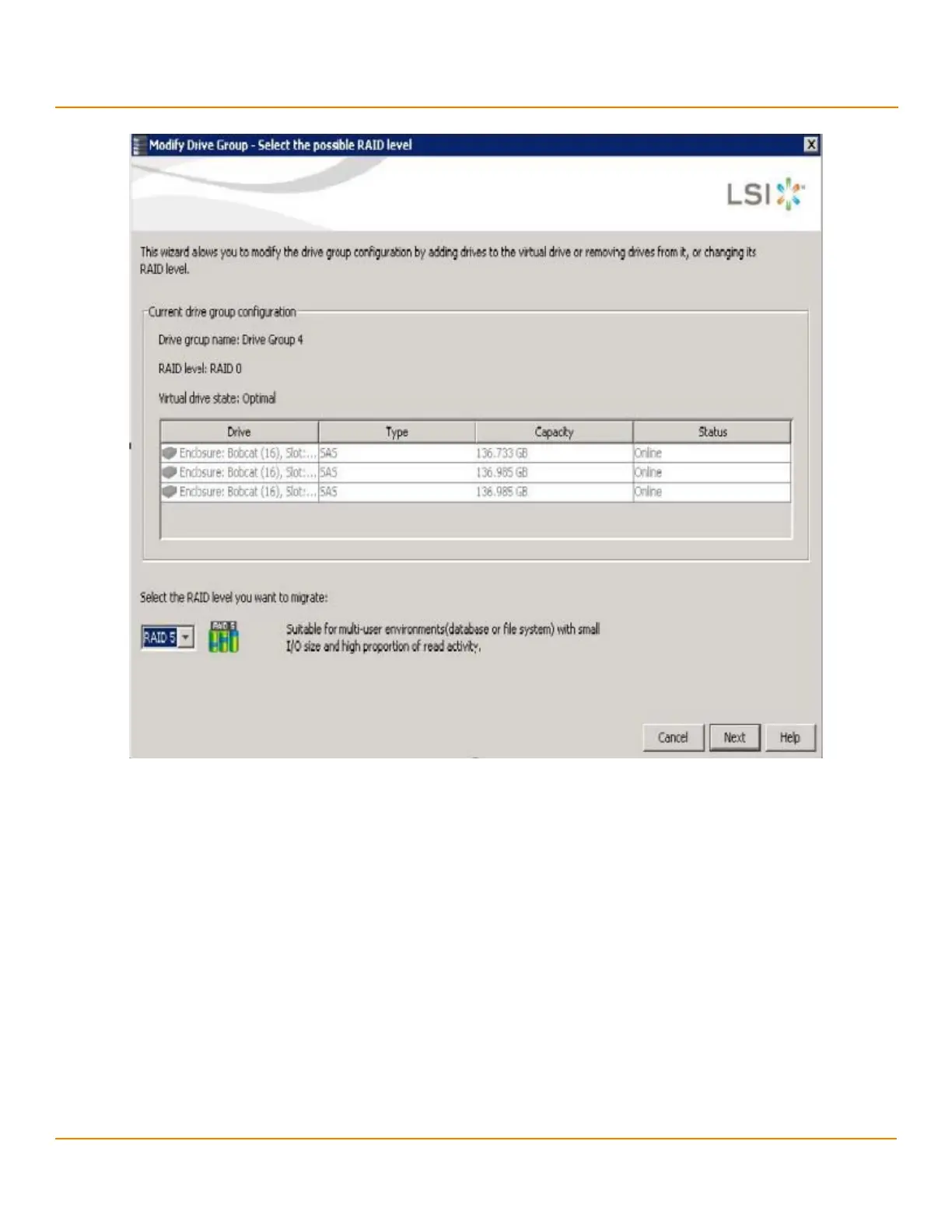

Figure 175 Modify Drive Group Wizard Dialog

4. On the Modify Drive Group Wizard dialog, select the RAID level to which you want to change ("migrate") the

drive group to, and click Next.

The following dialog appears. The dialog states the number of drives that you have to add to change the RAID

level from the current level to a new RAID level that requires more drives.
