12Gb/s MegaRAID SAS Software User Guide

March 2014

Chapter 12: Using MegaRAID Advanced Software

Managing MegaRAID Advanced Software

The Manage MegaRAID Advanced Software Options wizard appears.

— If none of the advanced software options present in the controller are in a boot mode, the second Manage

MegaRAID Advanced Software Option dialog appears, as shown in the following figure. You cannot

activate any advanced software options from this window as this is a view-only window.

— If even one of the advanced software options present in the controller is in a boot mode, the first Manage

MegaRAID Advanced Software Option dialog appears, as shown in the following figure.

The Manage MegaRAID Advanced Software Options wizard appears.

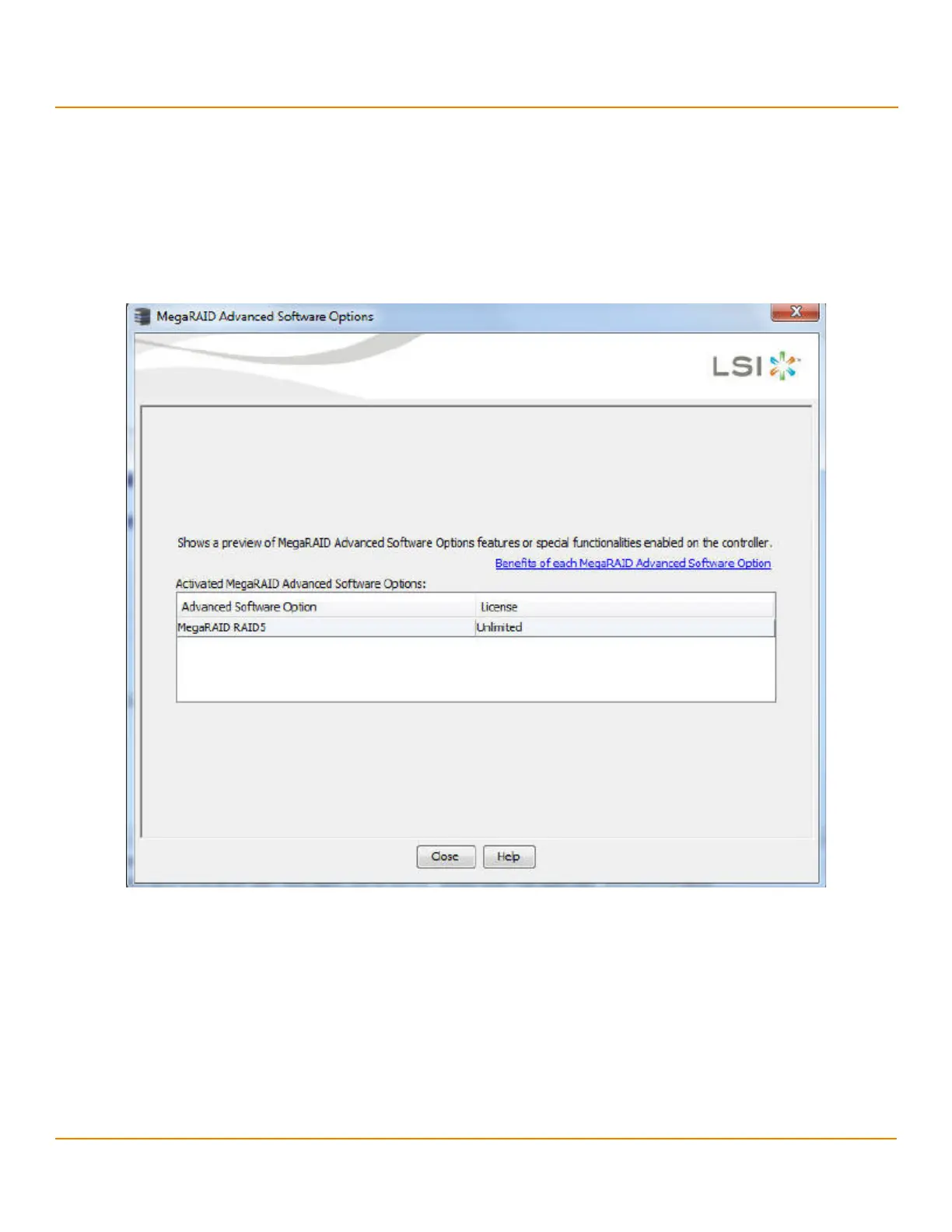

Figure 201 Manage MegaRAID Advanced Software Options Dialog
