LSI Corporation

- 332 -

12Gb/s MegaRAID SAS Software User Guide

March 2014

Chapter 12: Using MegaRAID Advanced Software

Using the MegaRAID CacheCade Advanced Software

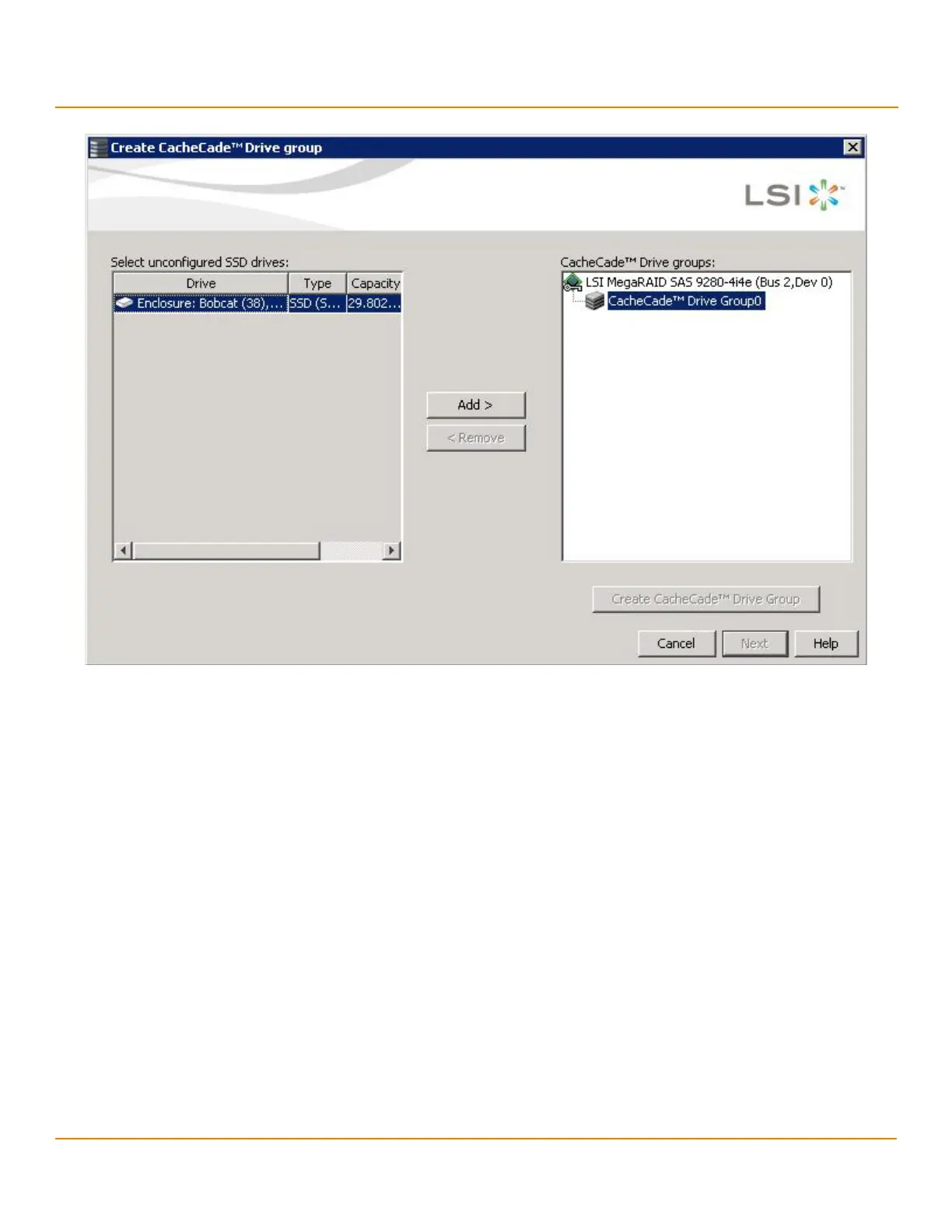

Figure 215 Create CacheCade Drive group Dialog

After you select the unconfigured drives, the Add > button is available.

4. Click Add > to move the selected drives to the drive group in the right frame, as shown in the following figure.
