LSI Corporation
- 353 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 12: Using MegaRAID Advanced Software
Managing Link Speed

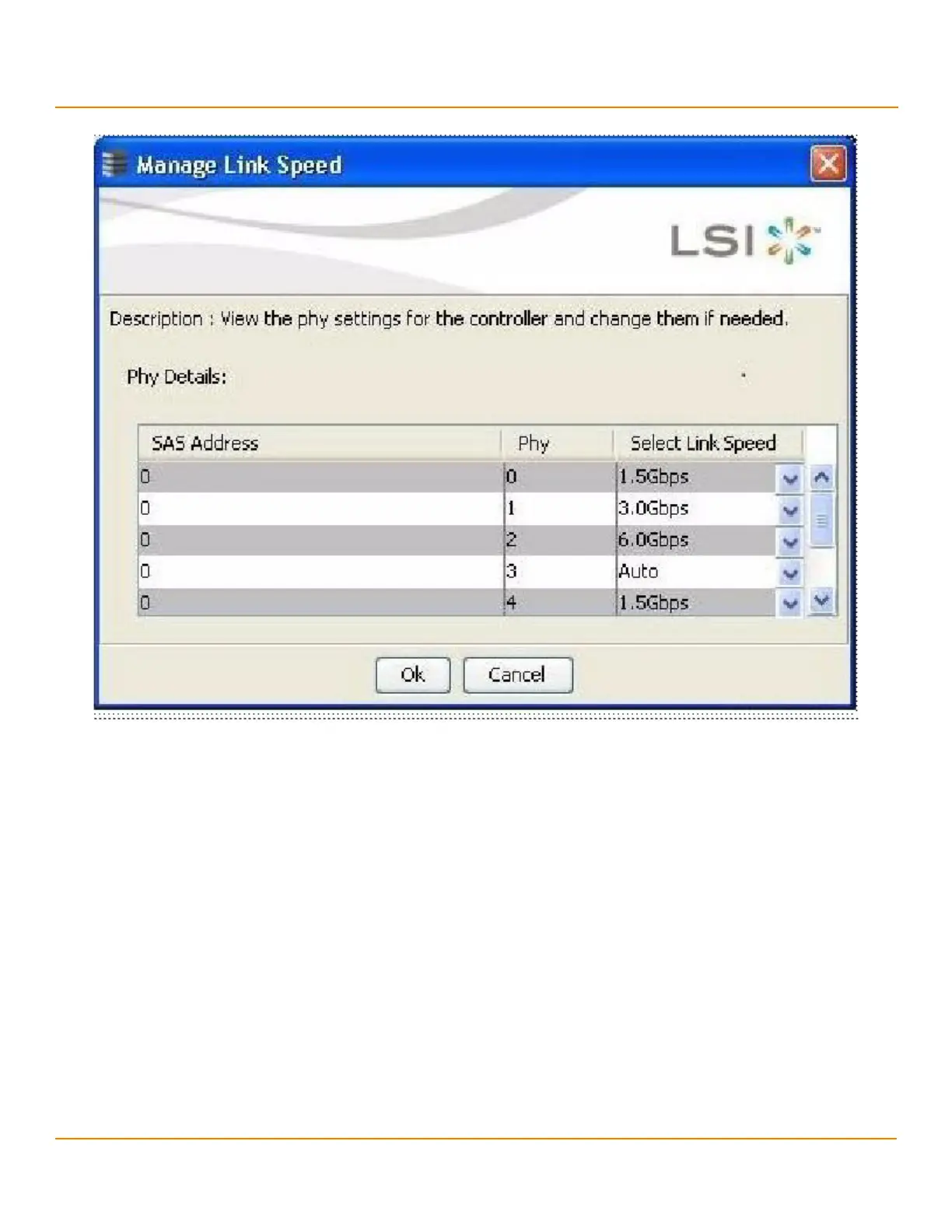

Figure 233 Manage Link Speed Dialog
—
The SAS Address column displays the SAS address that uniquely identifies a device in the SAS domain.
— The Phy column displays the system-supported phy link values. The phy link values are from 0 through 7.
— The Select Link Speed column displays the phy link speeds.
2. Select the desired link speed from the Select Link Speed field using the drop-down selector.
The link speed values are Auto,1.5 Gbps, 3.0 Gbps, or 6.0 Gbps.
NOTE By default, the link speed in the controller is Auto or the value last
saved by you.
3. Click OK.
The link speed value is now reset. The change takes place after you restart the system.
The message box appears, as shown in the following figure.
