• If only one interpolation point, X1, in the negative range is defined, X2 exists with the "0" Lenze
setting being the valid interpolation point (X2 > X1), and a line is drawn through both
interpolation points:

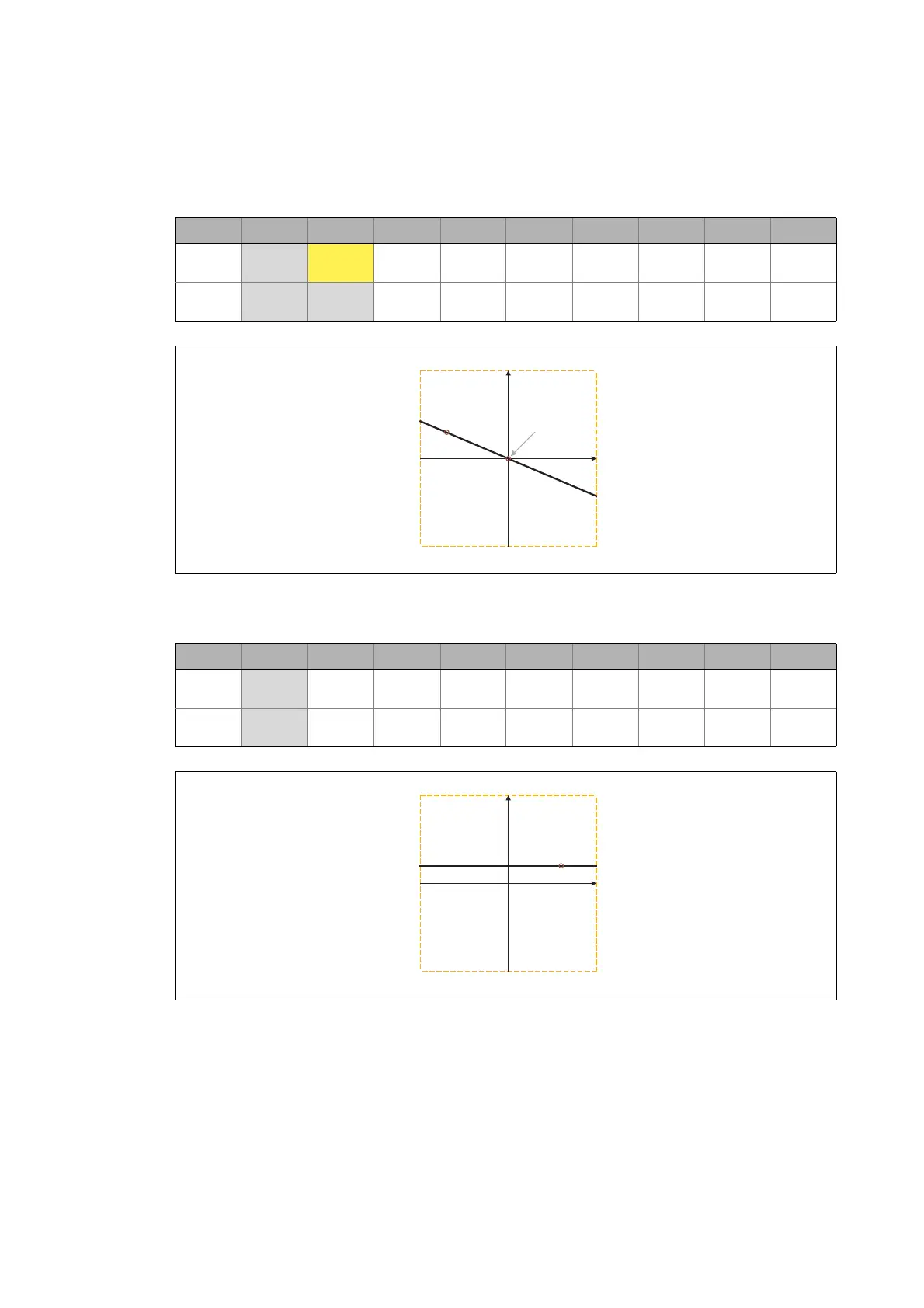

[17-24] Example: Characteristic with only one defined interpolation point and X1 < 0
• If only one interpolation point, X1, is defined in the positive range, a line is extrapolated:
[17-25] Example: Characteristic with only one defined interpolation point and X1 > 0
1 2 3 4 5 6 7 ... 32
X
-21300
(-130 %)
0
(0 %)
0000000
Y
6554
(40 %)
0
(0 %)
0000000
nOut_a
nIn_a
X1, Y1 X2, Y2
-199.99 % / -199.99 %
199.99 % / 199.99 %
1 2 3 4 5 6 7 ... 32
X
19661
(120 %)
00000000
Y
6554
(40 %)
00000000
nOut_a
nIn_a
X1, Y1
-199.99 % / -199.99 %
199.99 % / 199.99 %
