17 Function library
17.1 Function blocks | L_NLim_1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Parameters
Definition of the blocking zones
Up to three zones can be parameterised which are to be skipped by the nOut_a output signal.
The example below shows the parameter setting of two blocking zones for the L_NLim_1 FB:

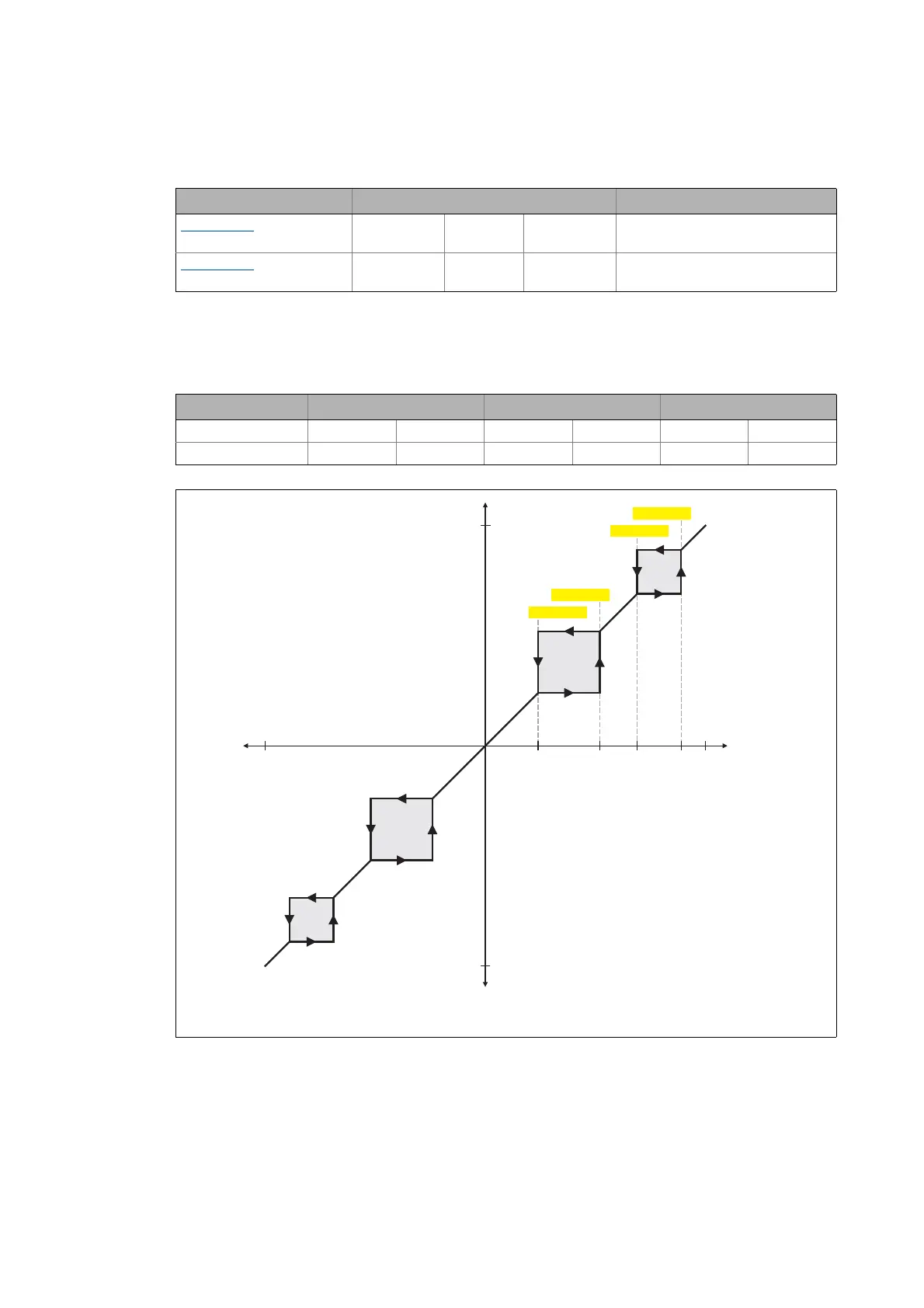

[17-51] Zone masking by means of parameterisable blocking zones (in our example: L_NLim_1)
• The parameterised blocking zones have the same effect on negative input signals.
• A blocking zone is deactivated by entering identical limit values (in our example: blocking zone
3).
Parameters Possible settings Info
C00807/1...3
0.00 % 199.99 Max. skip frequency 1 ... 3
• Lenze setting: 0.00 %
C00808/1...3
0.00 % 199.99 Min. skip frequency 1 ... 3
• Lenze setting: 0.00 %
Parameters Blocking zone 1 Blocking zone 2 Blocking zone 3
Minimum limit value C00808/1: 48 % C00808/2: 138 % C00808/3: 0 %
Maximum limit value C00807/1: 104 % C00807/2: 178 % C00807/3: 0 %
 Blocking zone 1
 Blocking zone 2
nOut_a [%]
nIn_a
[%]
1
0
199.99
-199.99
-199.99 199.99
C00807/1
C00808/1
48 138
0
1
104 178
C00807/2
C00808/2
