17 Function library
17.1 Function blocks | L_SRFG_1
1511
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Loading the ramp function generator
When bLoad is set to TRUE, the ramp function generator is loaded with the signal at nSet_a. This
value is accepted immediately and output at nOut_a. There is no acceleration or deceleration via an
S shape. As long as bLoad = TRUE, the ramp function generator remains inhibited.
Acceleration/Deceleration time and S-ramp time
The acceleration/deceleration time and the S-ramp time for jerk-free acceleration can be set
separately.
• Acceleration/Deceleration time = Time until the nOut_a output value has reached the nIn_a
input value.
• S-ramp time = Time until the ramp function generator operates at maximum acceleration.

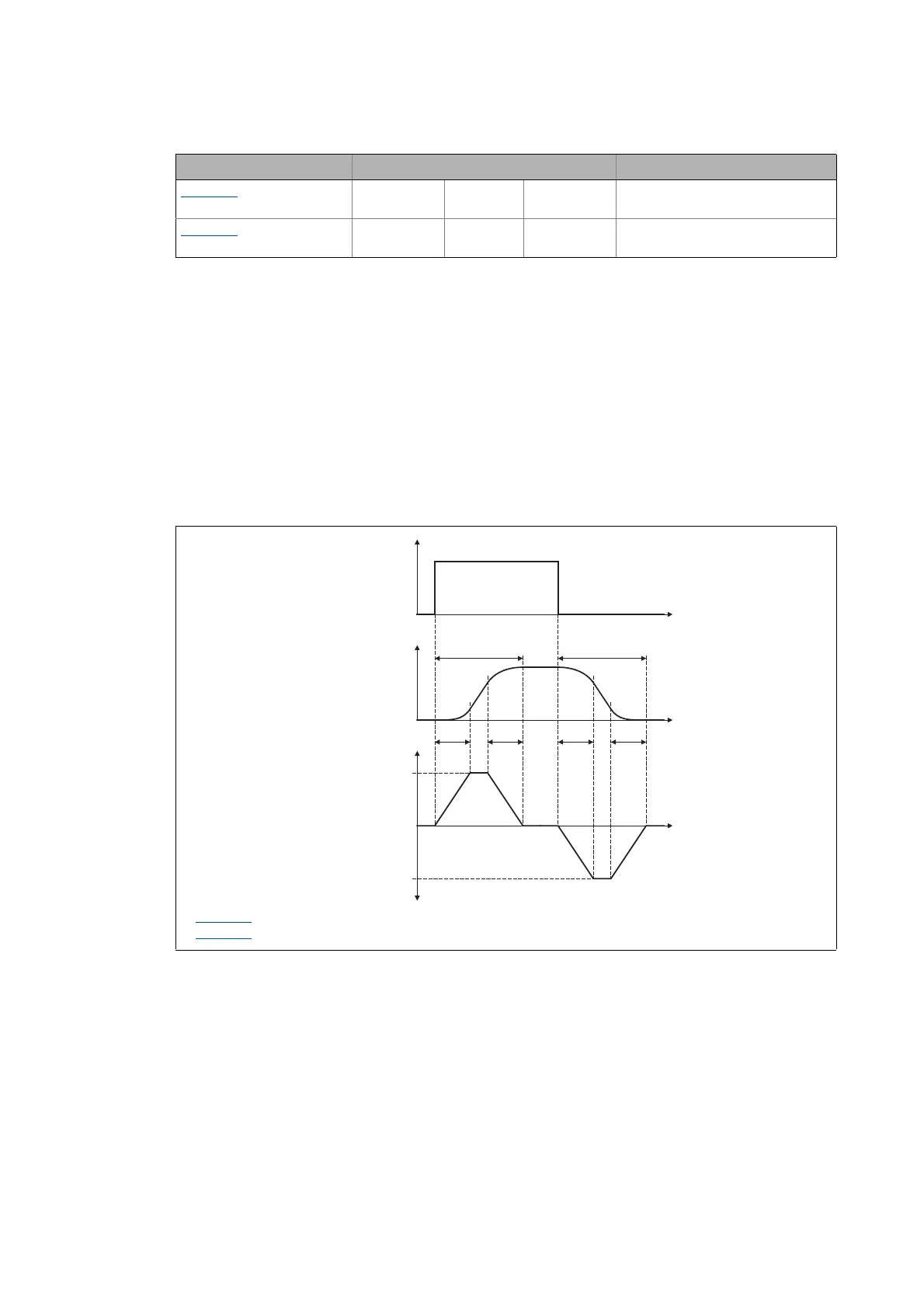

[17-70] Signal flow
C01042/1
(from version 05.00.00)
-199.99 s 199.99 Pos. limit
• Initialisation: 100.00 %
C01042/2
(from version 05.00.00)
-199.99 s 199.99 Neg. limit
• Initialisation: -100.00 %
C01040/x
: Acceleration/Deceleration time
C01041/x
: S-ramp time
Parameters Possible settings Info
nIn_a
t
nOut_a
t
nDeltaOut_a
t
+100 %
-100 %
