6 I/O terminals
6.1 Digital input terminals
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Counting behaviour
The following temporal characteristic shows the counting process depending on the signals of the
interfaces described before:

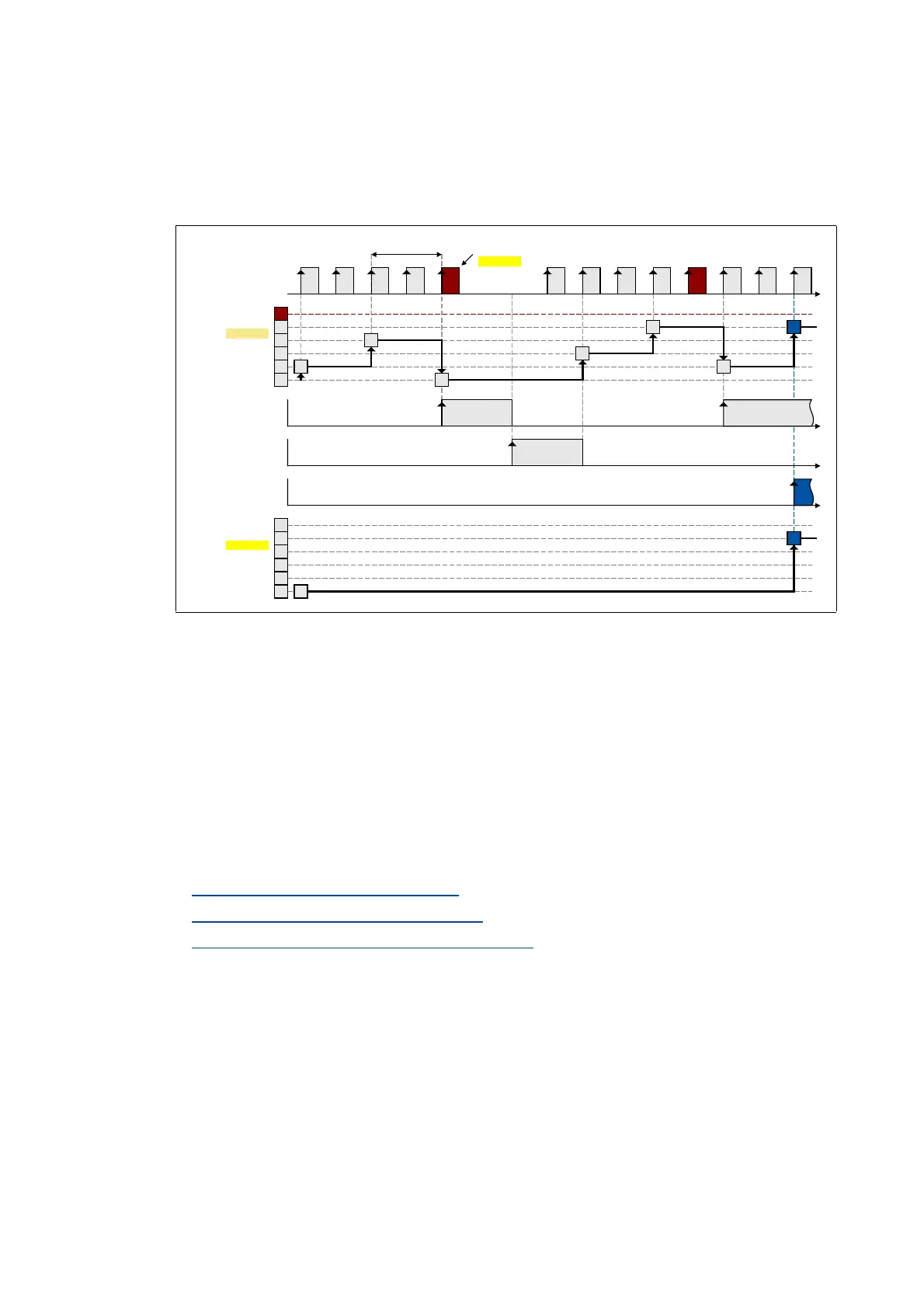

[6-1] Transient characteristic of a quick counter block, sampling cycle = 1 ms
• The counter starts with the parameterised starting value.
• If the comparison value is reached or exceeded:
• The counter jumps back to its starting value.
• The output bCount1(6)_Compare is set to TRUE.
• If there is a FALSE-TRUE edge is at the input bCountIn1(6)_ResetCompare, the output
bCountIn1(6)_Compare can be reset to FALSE.
• If there is a FALSE-TRUE edge at the input bCountIn1(6)_LoadStartValue, the current counter
content can be reset to the parameterised starting value.
Related topics:
Using DI1(6) and DI2(7) as digital inputs
( 326)
Using DI1(6) and DI2(7) as frequency inputs
( 327)
Internal interfaces | System block "LS_DigitalInput"
( 336)
E&RXQW,QB5HVHW&RPSDUH
W
E&RXQW,QB/RDG6WDUW9DOXH
W
E&RXQW,QB&RPSDUH
W
W
&
&
  


















 

&
&RXQWSXOVH
6DPSOLQJF\FOH
&RXQWHUYDOXH
6WDUWYDOXH
&RPSDUHYDOXH
