6 I/O terminals
6.1 Digital input terminals
340
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Parameters
Function at constant input value
Selection: C02844/1
= "0: Loading with level" or "1: Loading with edge"

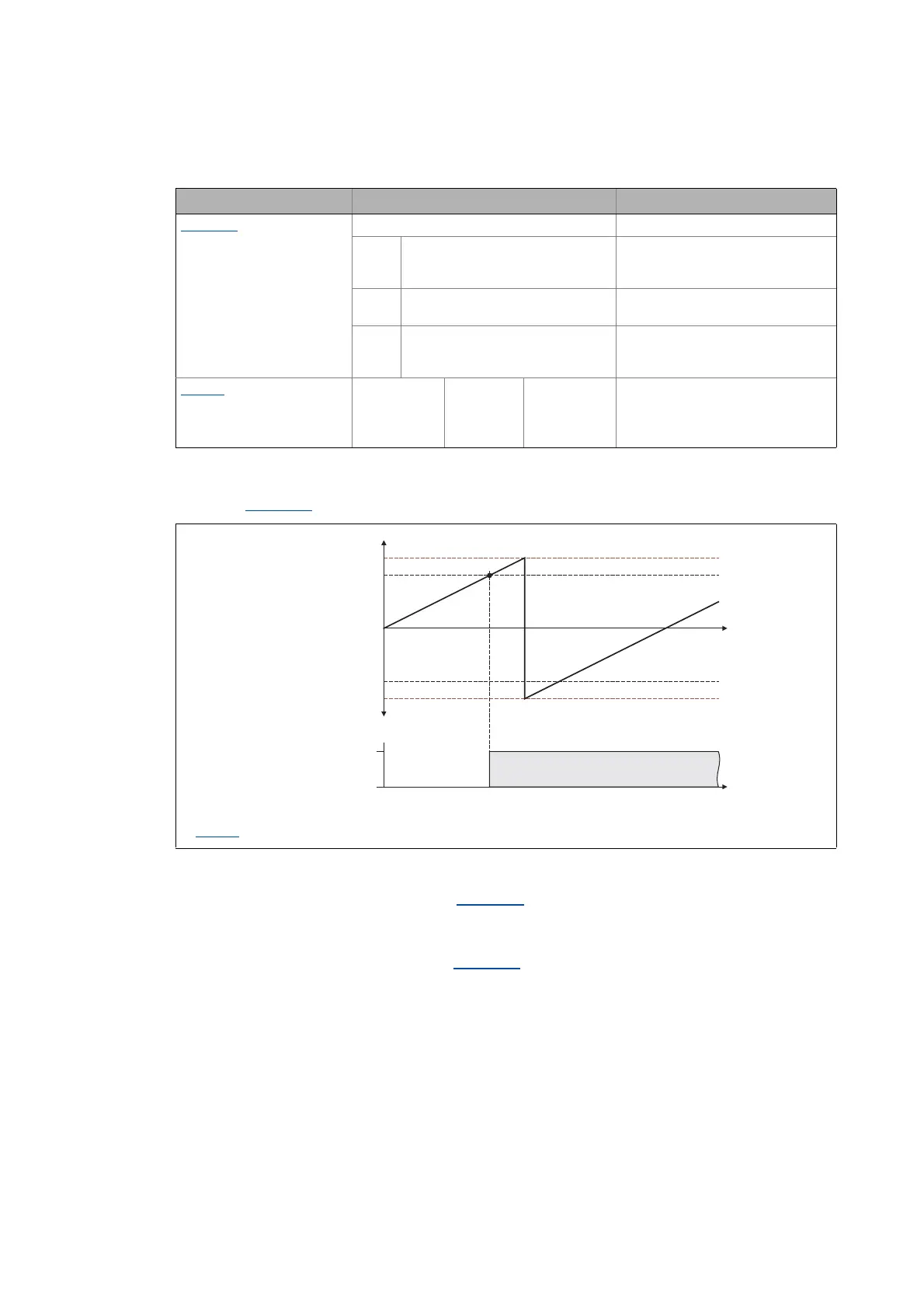

[6-2] Switching performance if the overflow is in the positive direction
• If "0: Loading with level" is selected in C02844/1, the bPosIn12_Load input is status-controlled:
In case of a TRUE signal, the integrator is loaded with the value at dnPosIn12_Set_p and the
bPosIn12_State output is set to FALSE.
• If "1: Loading with edge" is selected in C02844/1
, the bPosIn12_Load input is edge-controlled: In
case of a FALSE/TRUE edge, the integrator is loaded with the value at dnPosIn12_Set_p and then
immediately continues to integrate, the bPosIn12_State output is set to FALSE.
•A positive nFreqIn12_v signal is incremented (the counter content is increased with every cycle).
•A negative nFreqIn12_v signal is decremented (the counter content is reduced with every cycle).
Parameters Possible settings Info
C02844/1
Function
0 Loading with level Load integrator with TRUE level at
the bPosIn12_Load input (Lenze
setting).
1 Loading with edge Load integrator with FALSE/TRUE
edge at the bPosIn12_Load input.
2 Loading with level + reset Load integrator when reaching the
comparison value or with TRUE level
at the bPosIn12_Load input.
C02845
0 2000000000 Comparison value
• Is valid for both the positive and
the negative value range.
•Lenze setting: 0
 Overflow at ±2147483648 incr. (±32767 encoder revolutions)
 C02845
: Comparison value (applies to both positive and negative value range)
dnPosIn12_p

t



0
TRUE
FALSE
bPosIn12_State
t
