8 Basic drive functions (MCK)
8.6 Homing
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

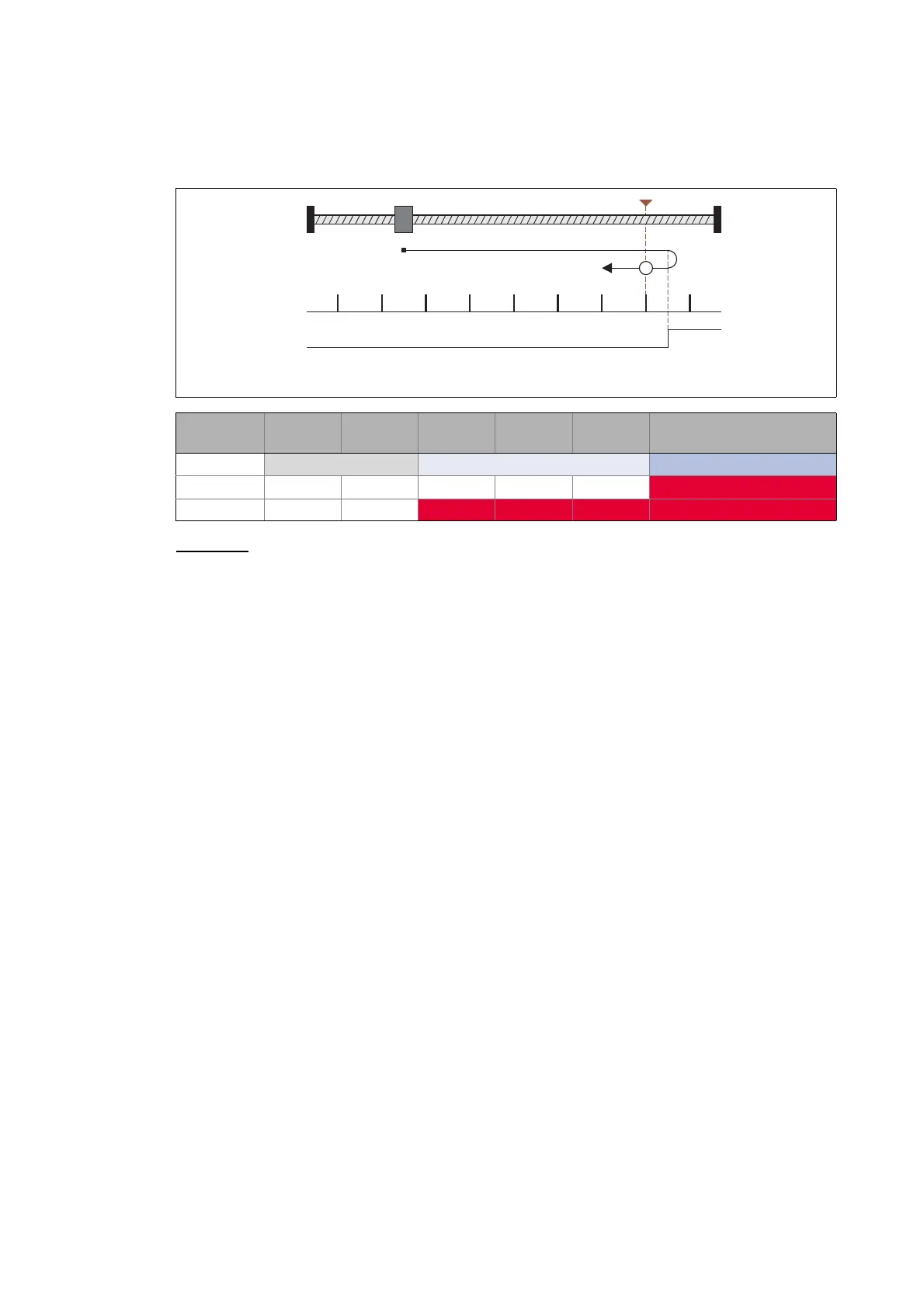

Mode 10: >_Lp_<_TP
Procedure:
1. Movement in positive direction with start profile data set.
2. Reversing when the edge of the positive travel range limit switch is positive and, at the same
time, activation of search profile data set for continued reference searching.
3. Negative edge of the travel range limit switch enables home position detection.
4. Following edge of the touch probe sensor sets home position.
 Touch probe
 Positive travel range limit switch
Mode 10 > Lp Set
reference
TP Offset path Sequence profile (optional)
Start speed Search speed Profile speed
Lp Inactive Inactive Inactive Inactive Inactive
Active
Ln Inactive Inactive
Active Active Active Active
1
0
1
