8 Basic drive functions (MCK)
8.6 Homing
562
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

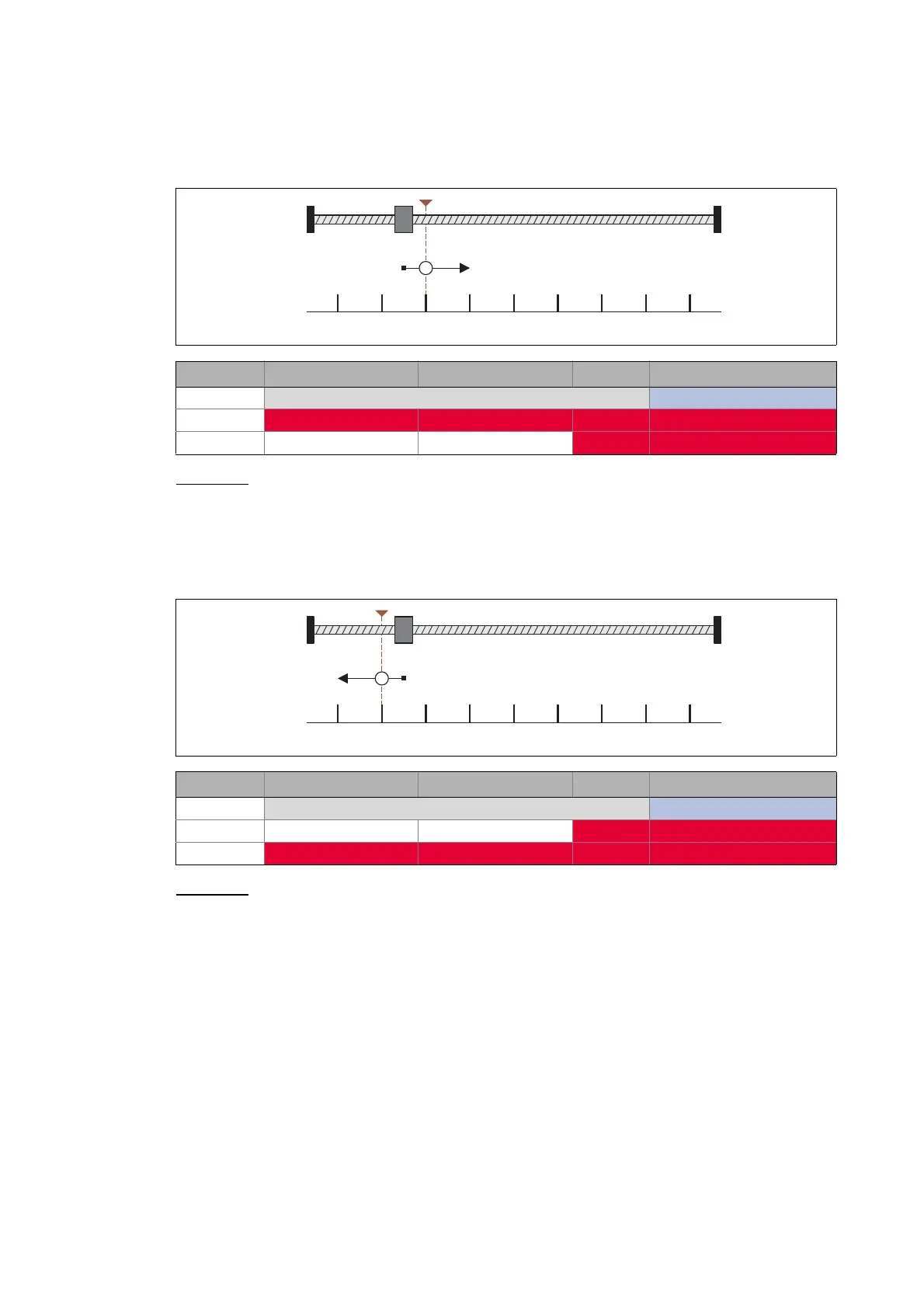

Mode 8: >_TP
Procedure:
1. Movement in positive direction with start profile data set.
2. Following edge of the touch probe sensor sets home position.
Mode 9: <_TP
Procedure:
1. Movement in negative direction with start profile data set.
2. Following edge of the touch probe sensor sets home position.
 Touch probe
Mode 8 > TP Offset path Sequence profile (optional)
Start speed Profile speed
Lp
Active Active Active Active
Ln Inactive Inactive
Active Active
 Touch probe
Mode 9 Set reference TP Offset path Sequence profile (optional)
Start speed Profile speed
Lp Inactive Inactive
Active Active
Ln Active Active Active Active
1
0
1
0
