Manual jog to hardware limit position (limit switch)

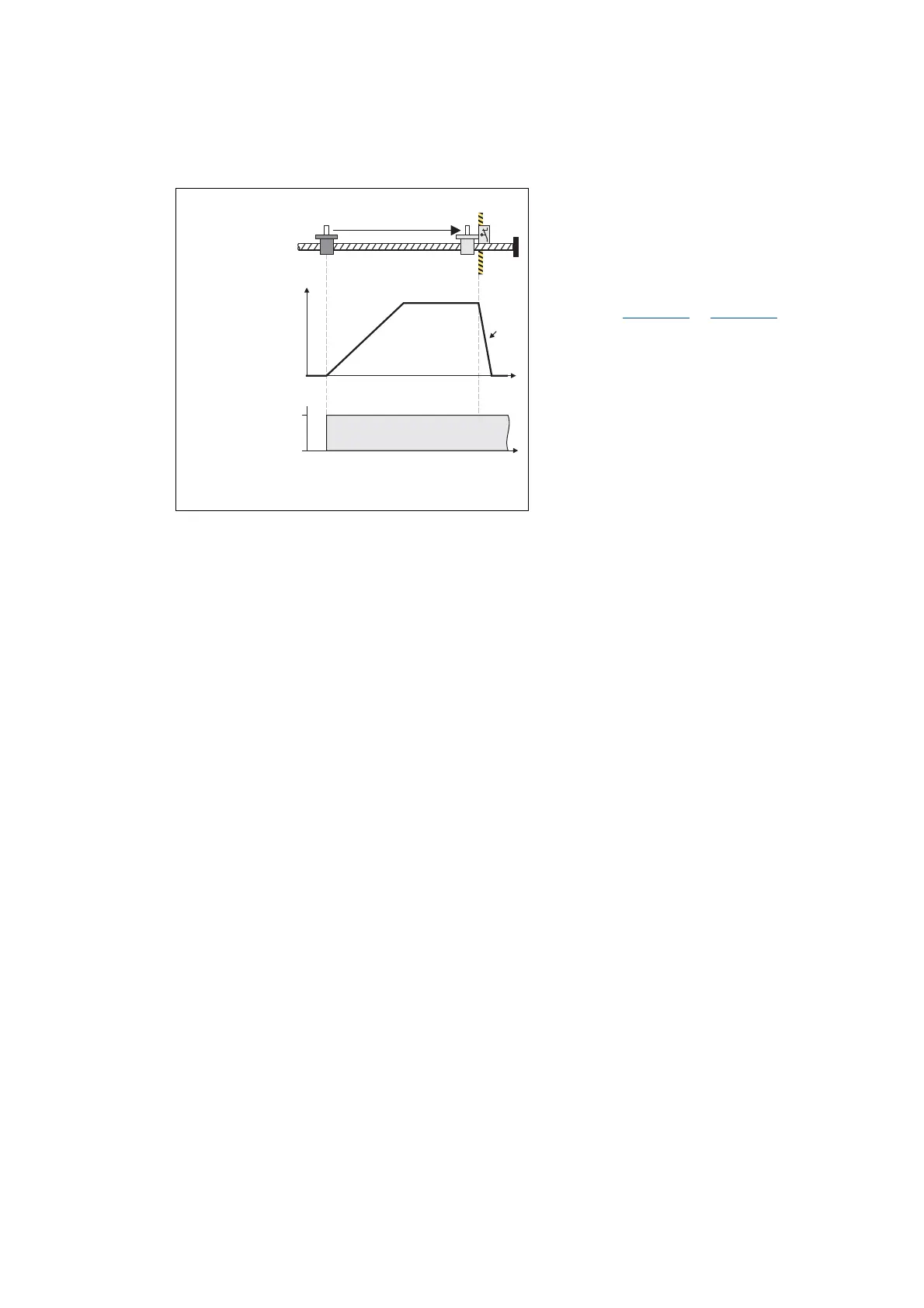

[8-33] Example: Manual jog to positive limit switch
 Positive limit switch
 Deceleration ramp of the quick stop function
• When monitoring of the limit switches
is switched on and a limit switch is
approached during manual jog, the
drive is braked within the deceleration
time set for the quick stop function if
the "TroubleQuickStop" error response
is set in C00595/1
or C00595/2.
n
t
TRUE
FALSE
ManJogPos
t


