Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 735
11 System bus "CAN on board"
11.8 Process data transfer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Finally, the following parameters define the value that the process data words are to have when
they are decoupled:

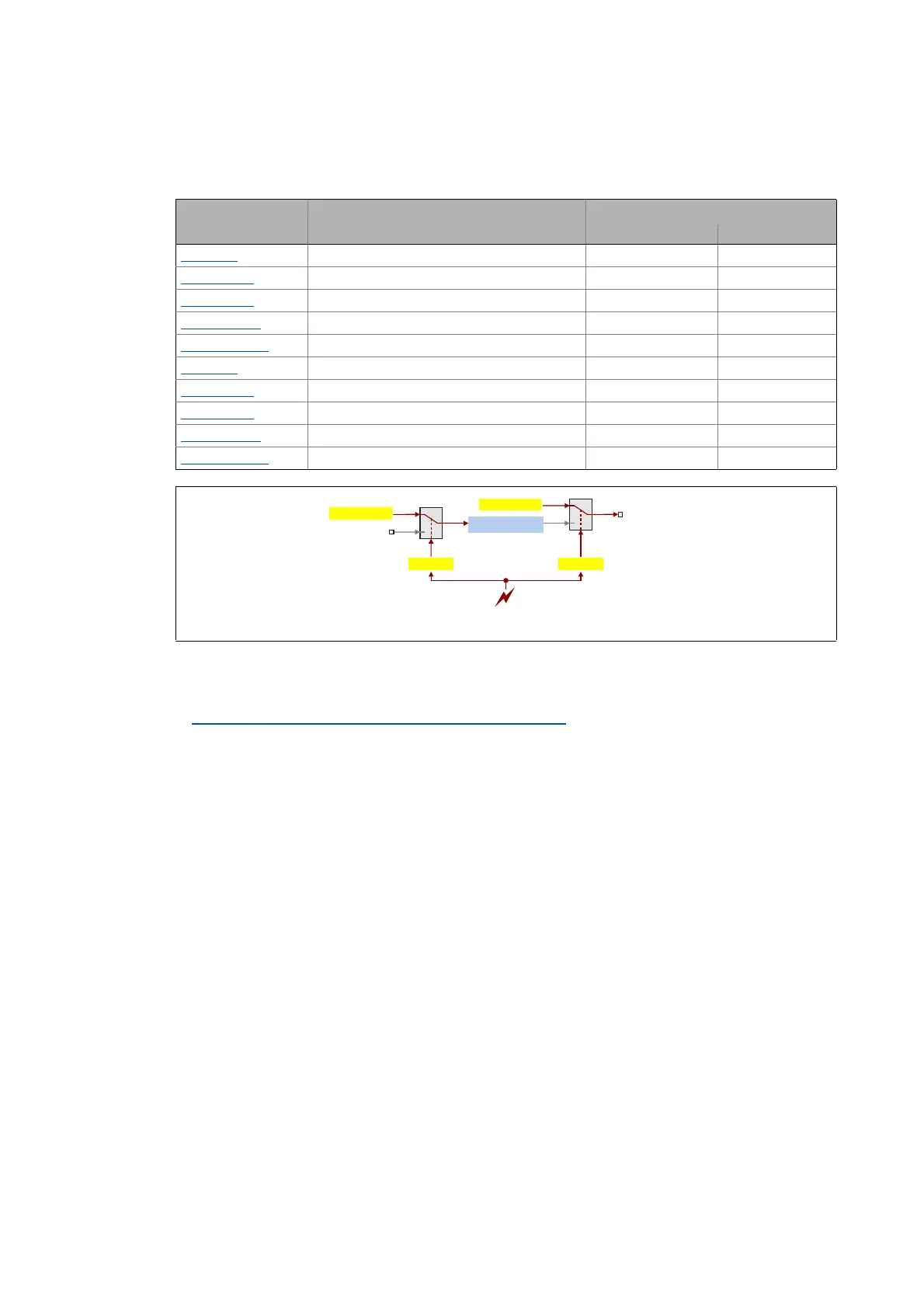

[11-7] General signal flow in the event of a configured exception
Related topics:
Configuring exception handling of the output terminals
( 364)
Parameters Info Lenze setting
Value Unit
C00343/1 LP_CanIn1:wCtrl DiscVal 0
C00343/2...4
LP_CanIn1:wIn2...wIn4 DiscVal 0
C00343/5...8
LP_CanIn2:wIn1...wIn4 DiscVal 0
C00343/9...12
LP_CanIn3:wIn1...wIn4 DiscVal 0
C00343/13...16
LP_CanIn4:wIn1...wIn4 DiscVal 0
C00344/1
LP_CanOut1:wState DiscVal 0
C00344/2...4
LP_CanOut1:wOut2...wOut4 DiscVal 0
C00344/5...8
LP_CanOut2:wOut1...wOut4 DiscVal 0
C00344/9...12
LP_CanOut3:wOut1...wOut4 DiscVal 0
C00344/13...16
LP_CanOut4:wOut1...wOut4 DiscVal 0
 Exception event (an error has occurred)
Application
C00342/1
C00343/1...16
CAN IN
C00344/1...16
CAN OUT
C00342/2

