Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 91
3 Commissioning
3.10 PC manual control
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

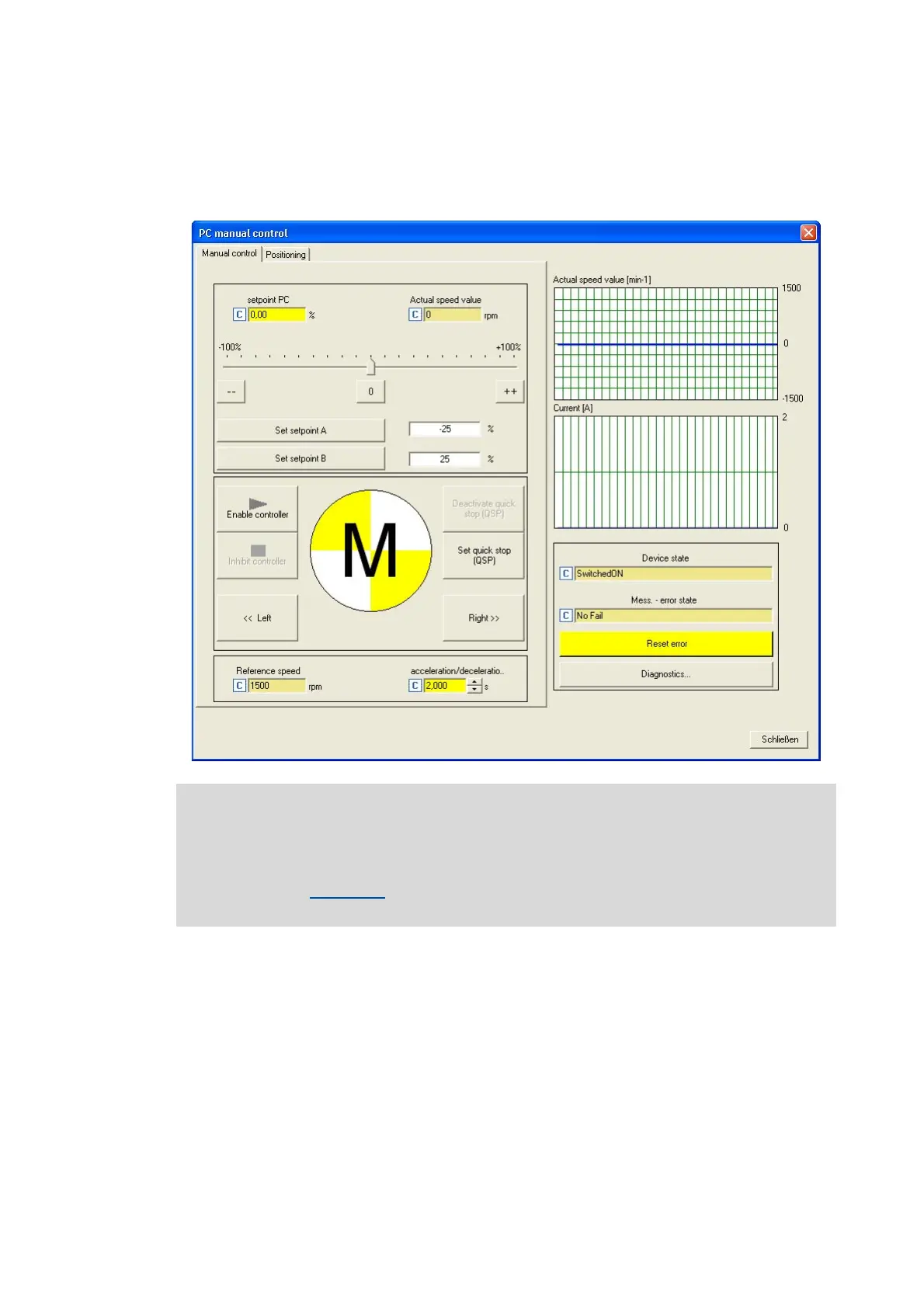

PC manual control - operator dialog
The left side of the PC manual control operator dialog contains several tabs for selecting the various
control functions and the right side contains setpoint and status displays for diagnostic purposes:
The different versions are described in the following chapters.
 Note!
PC manual control can be exited any time by clicking the Close button.
If you exit PC manual control or change to another tab, the inverter is inhibited via device
command (C00002/16
), i.e. the motor becomes torqueless and is coasting unless it
already is at standstill.
