3 Commissioning
3.10 PC manual control
90
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
How to activate the PC manual control:
1. If an online connection to the inverter has not been established yet:
Go online.
2. Select the Application parameters tab from the Workspace.
3. Go to the Overview dialog level and click the "PC manual control" button.

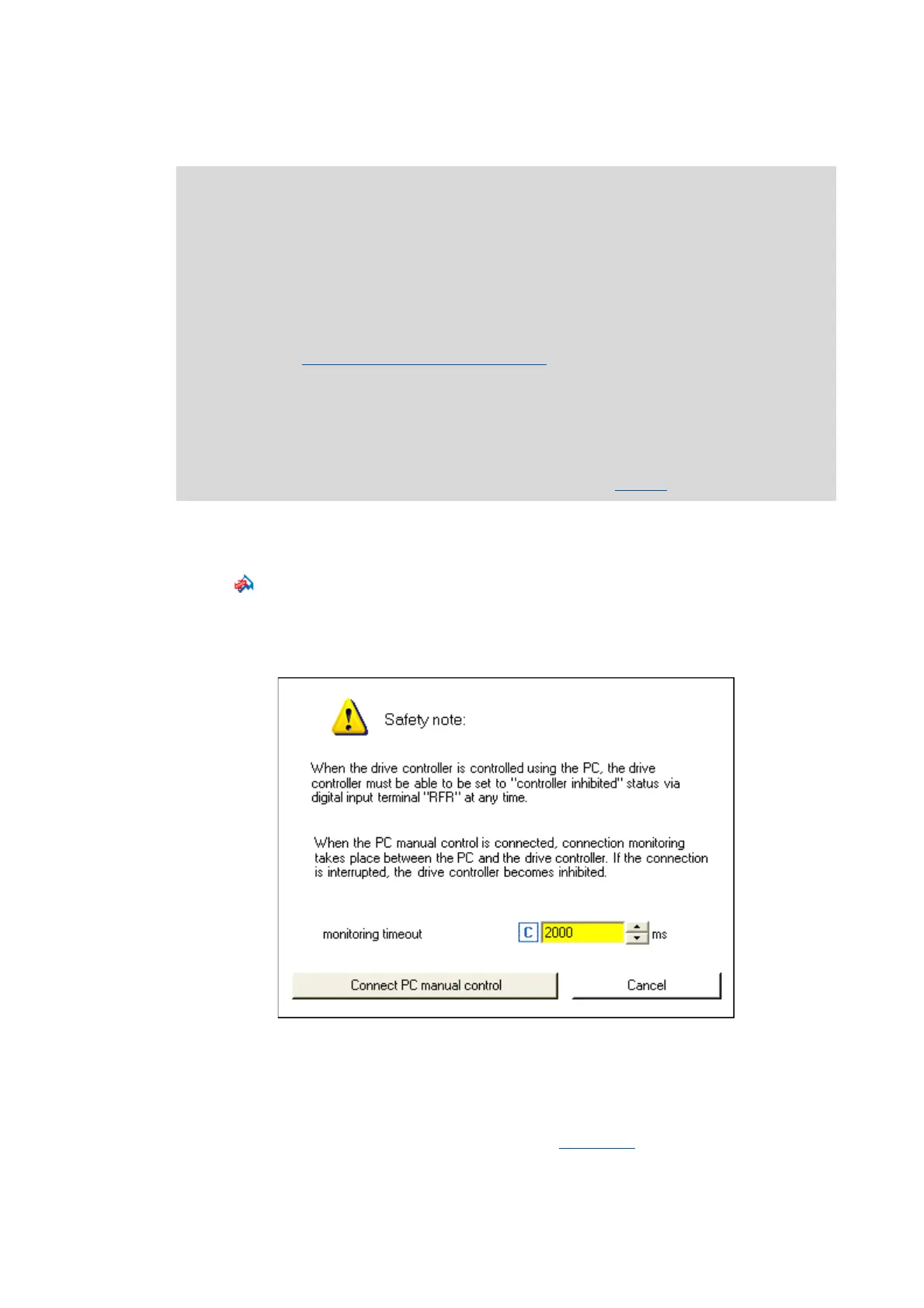

• First, the following safety note is displayed:
•Click the Cancel button to abort the action and close the dialog box.
•The Timeout monitoring input field serves to adapt the timeout time for the connection
monitoring between PC and inverter.
4. To acknowledge the note and activate PC manual control:
Click the Activate PC manual control button.
• The inverter is inhibited via device command (C00002/16
).
•The PC manual control operator dialog is displayed.
Note!
With active PC manual control:
The online connection between PC and controller is monitored by the inverter.
• If the online connection is interrupted longer than the timeout time set (Lenze
setting: 2 s):
• The error response "Fault" takes place, i.e. the motor becomes torqueless and
coasts, if it has not yet been in standstill.
•The "Ck16: Time overflow manual control
" error message is entered into the
logbook.
PC manual control provides the Motion Control Kernel and the motor interface with all
required control signals and setpoint signals.
• The available application (function block interconnection) is now decoupled from
these interfaces, but is continued to be processed and remains unchanged.
• It does not matter what type of motor control is set in C00006
.
