• Scan 1st sensor (paper feed sensor)
• Paper FB long
To test a flatbed or ADF sensor, perform the following steps:

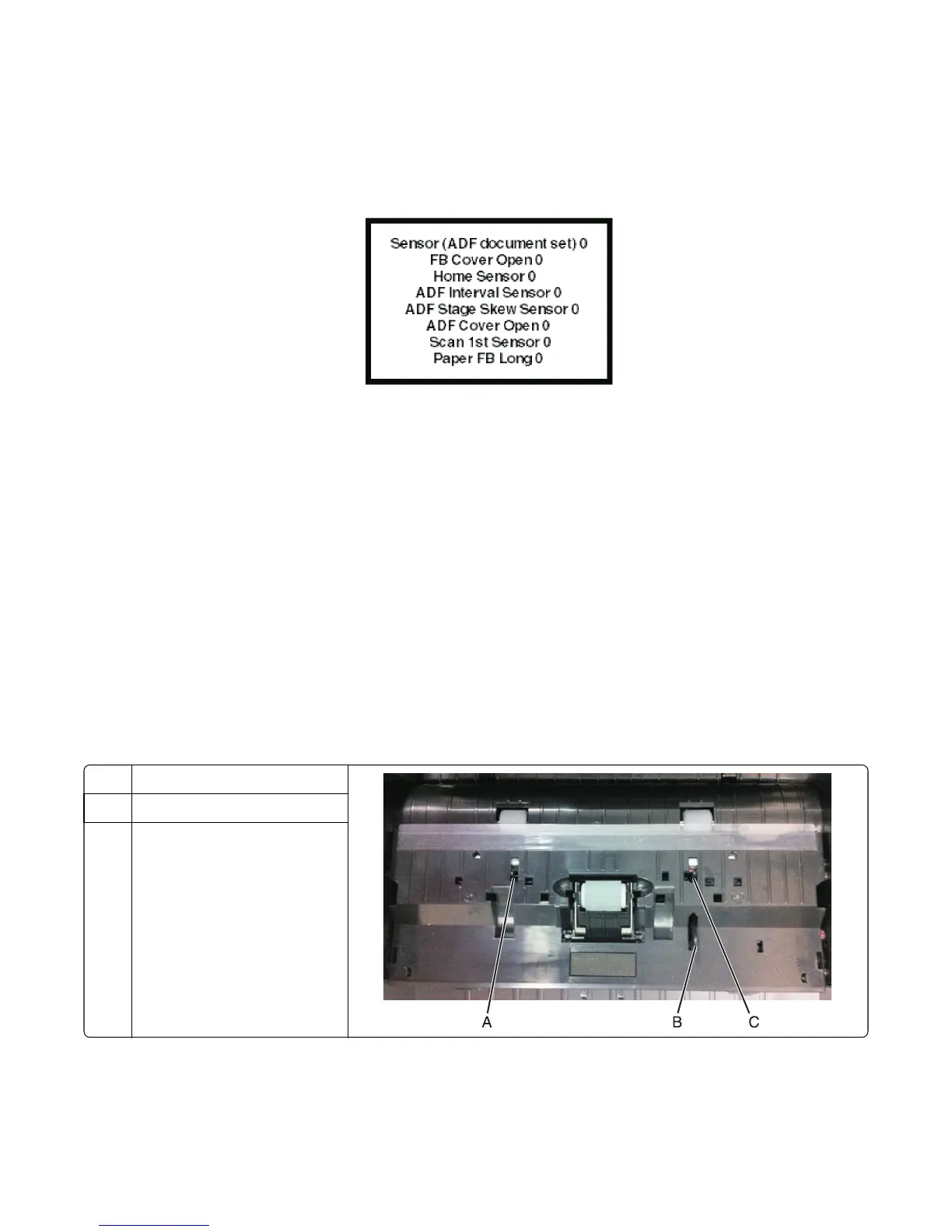

1 Navigate to Scanner Tests > Sensor Tests > <sensor to test>. The following is displayed:
2 Select the sensor to be tested.
3 Actuate the sensor you selected.
The screen will toggle between 0 and 1 if the sensor is properly functioning.
4 Select Exit to leave the test.
To test the Paper FB long test, place a sheet of legal paper on the flatbed and close the cover. If the sensor is working
properly, the indicator will change from 0 to 1.
To test the Home sensor, perform the following steps:
1 Exit the sensor test.
2 Open the flatbed cover.
3 Use the carriage motor test to move the carriage out of the home position.
4 Close the flatbed cover.
5 Enter the sensor test. If the home sensor is working properly, then a 1 will display instead of a 0.
A Stage skew sensor (paper skew)
B Paper present
C Interval sensor
