Lexmark MX610 - Duplex Sensor and Input Sensor Removal

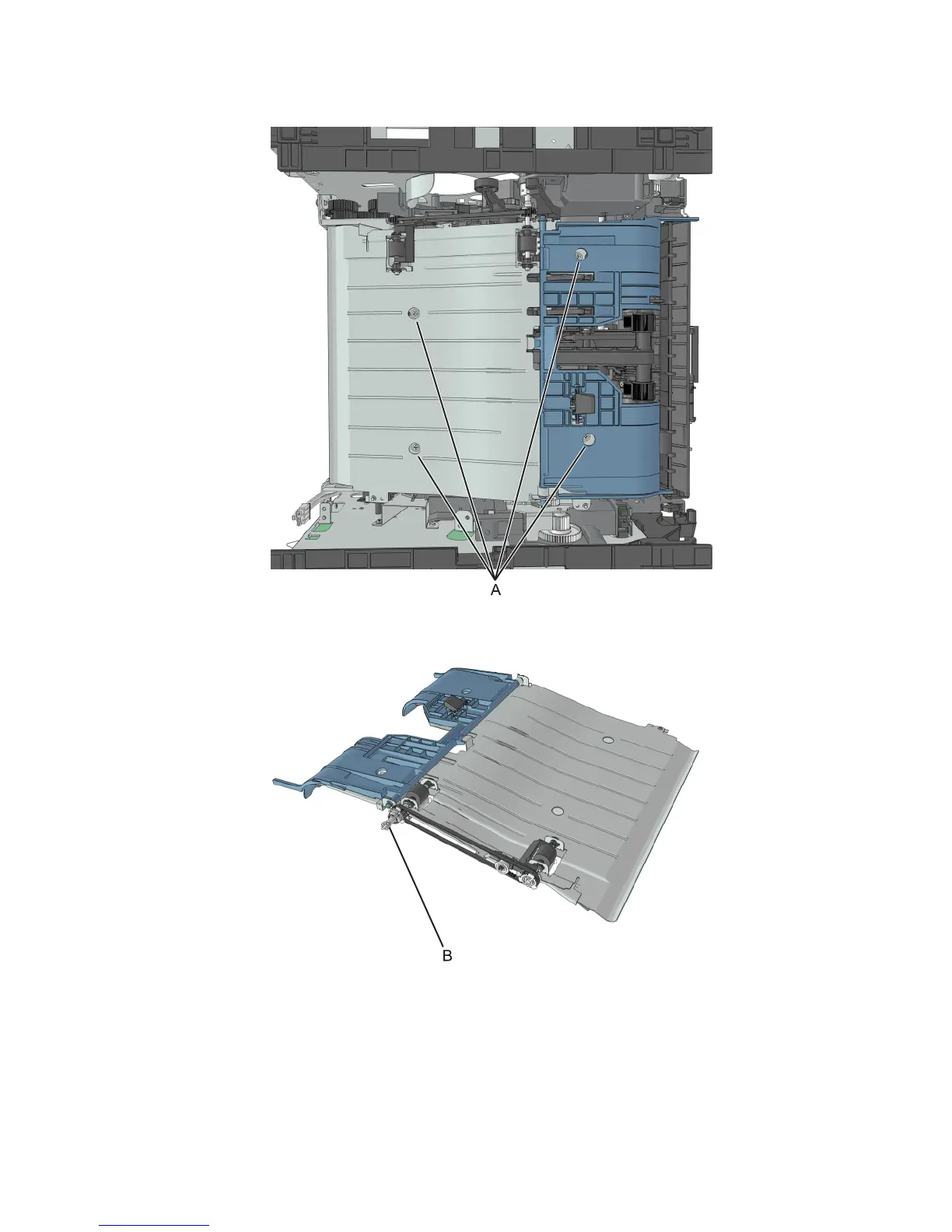

6 Remove the four screws (A) securing the duplex.
Note: The duplex link (B) is part of the FRU.
Duplex sensor and input sensor removal
1 Remove the left cover. See “Left cover removal” on page 239.
2 Remove the right cover. See “Right cover removal” on page 252.
7016
Repair information
300
