3 Remove the rear door and cover. See “Rear exit door removal” on page 317 and “Rear cover removal” on page
318.
4 Remove the power supply. See “Power supply removal” on page 298.
5 Remove the power supply shield. See “Power supply shield removal” on page 298.
6 Remove the duplex. See “Duplex removal” on page 299.
7 Disconnect the cable JDUPPI1 from the controller board.

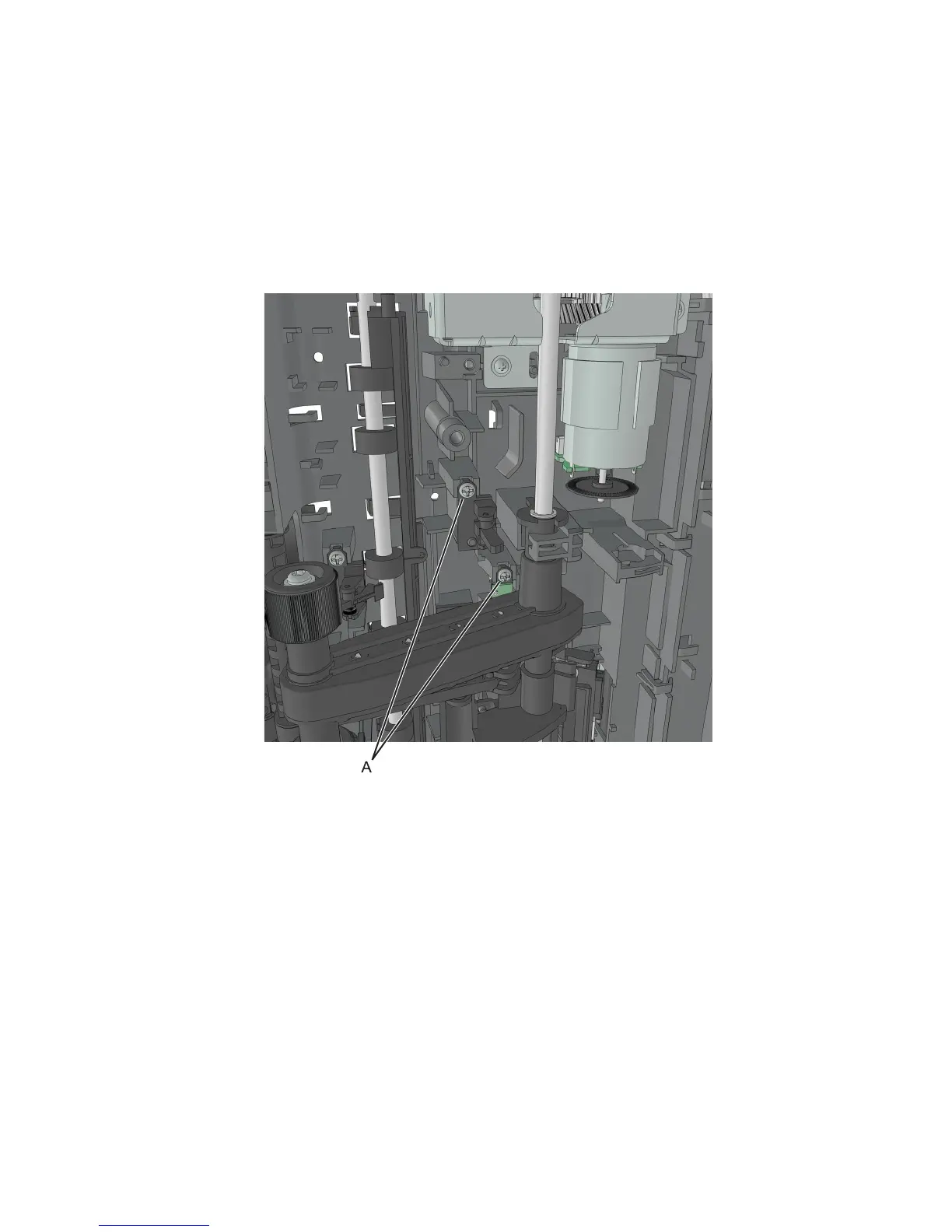

8 Remove the two screws (A), and cut the cable near the frame to detach the sensors.
9 Remove the other half of the cable from the printer.
