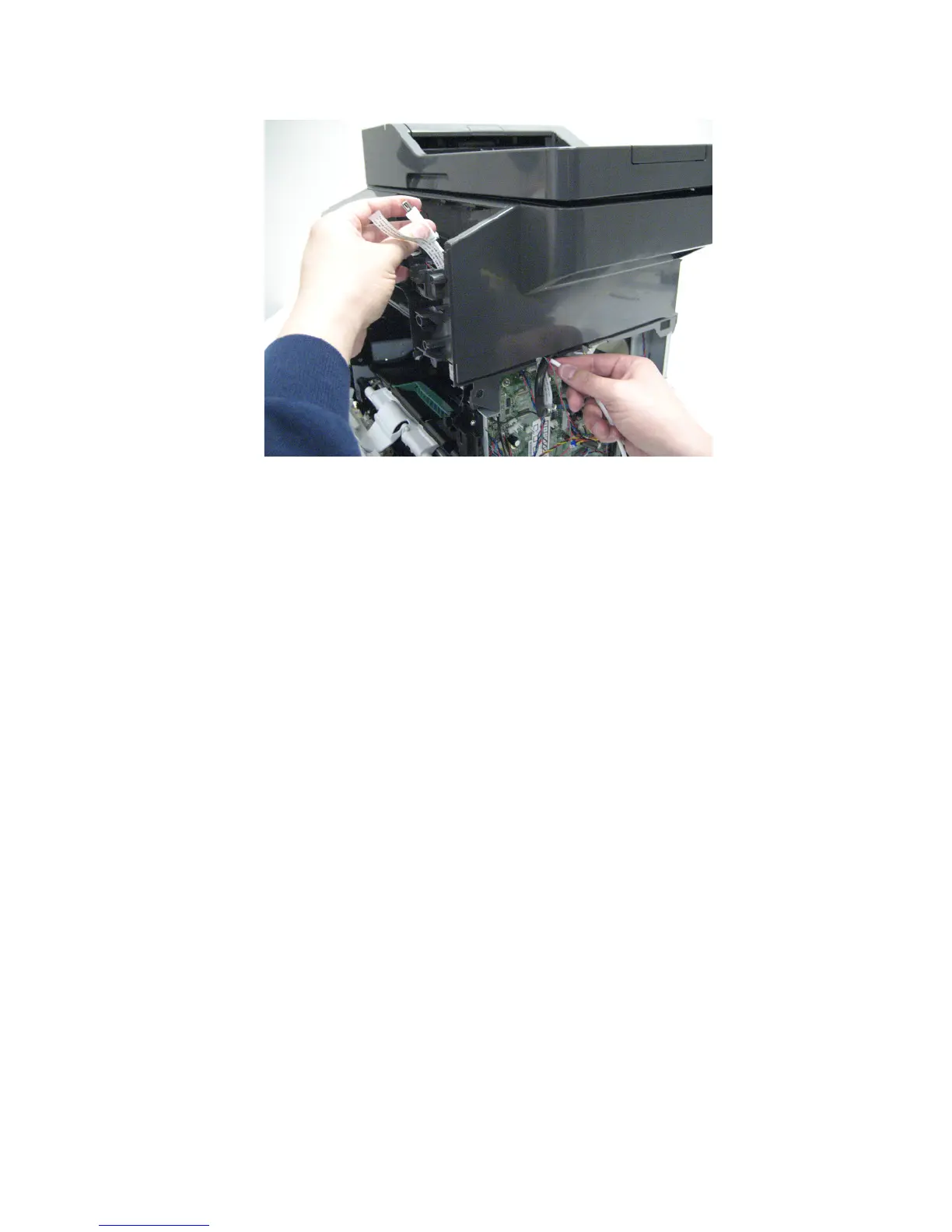

9 Feed the USB cable through the channel on the left side of the printer.
USB wireless cable removal
1 Remove the right cover. See “Right cover removal” on page 252.
2 Remove the controller board shield. See “Controller board shield removal” on page 259.
3 Remove the fan.
4 Disconnect the MFP wireless cable from the RIP board.
5 Remove the scanner front cover. See “Scanner front cover removal” on page 332.
6 Remove the control panel assembly. See “Control panel assembly removal” on page 273.
7 Remove the UICC drip pan.
8 Lift the wireless control panel cover.
Note: For MX410 machines, two screws must be removed to release the toroid from the cable.
7016
Repair information
341
