Lexmark MX610 - Sensor (Stapler Access Door) Removal; Stapler Carriage Assembly Removal

Sensor (stapler access door) removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 355.

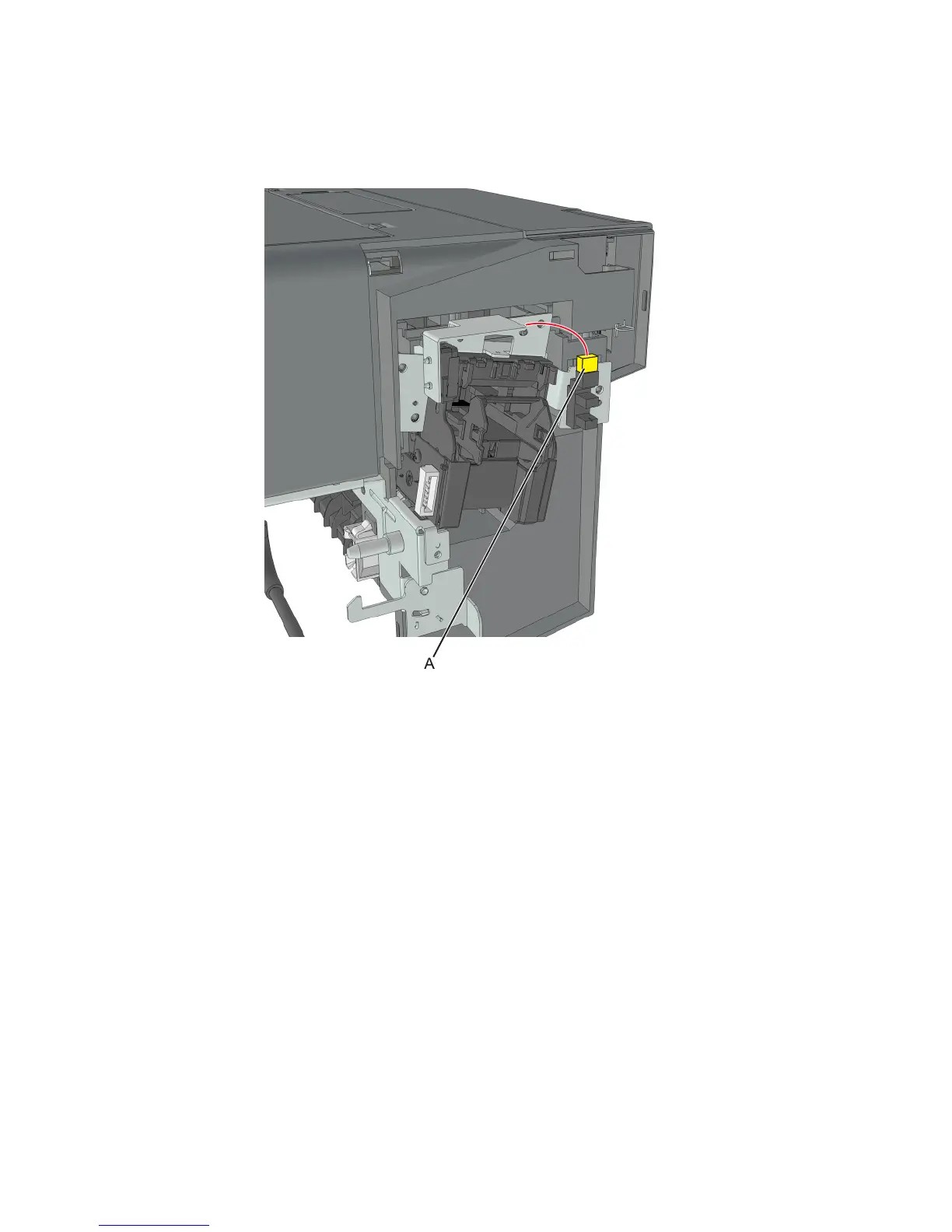

2 Disconnect the sensor cable (A).
3 Release the latches, and pull the sensor off the frame.
Stapler carriage assembly removal
1 Remove the stapler right cover. See “Stapler right cover removal” on page 355.
2 Disconnect the cable (A) from the carriage.
