Lexmark MX610 - Adf;Scanner Removals; ADF Separator Roll Removal

Installation note: Mechanical and electronic LSU adjustments are required to complete the installation of the LSU.
See “Printhead assembly adjustments” on page 236.
ADF/scanner removals

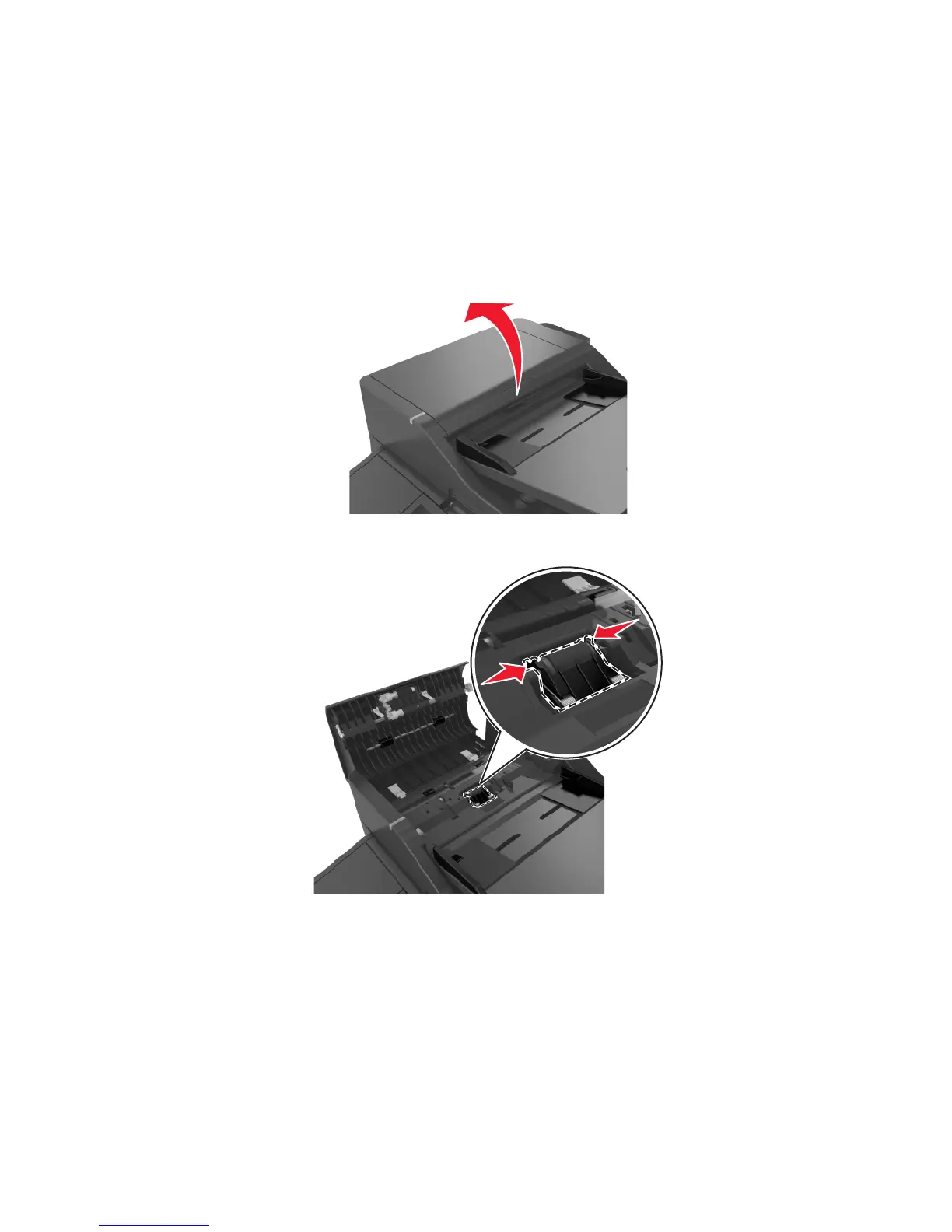

ADF separator roll removal
1 Open the ADF top cover.
2 Squeeze the latches to release the separator roll.
7016
Repair information
330
