Lexmark MX610 - MPF Pick Roller Cover Removal; MPF Pick Roller Removal

MPF pick roller cover removal
1 Open the front door.

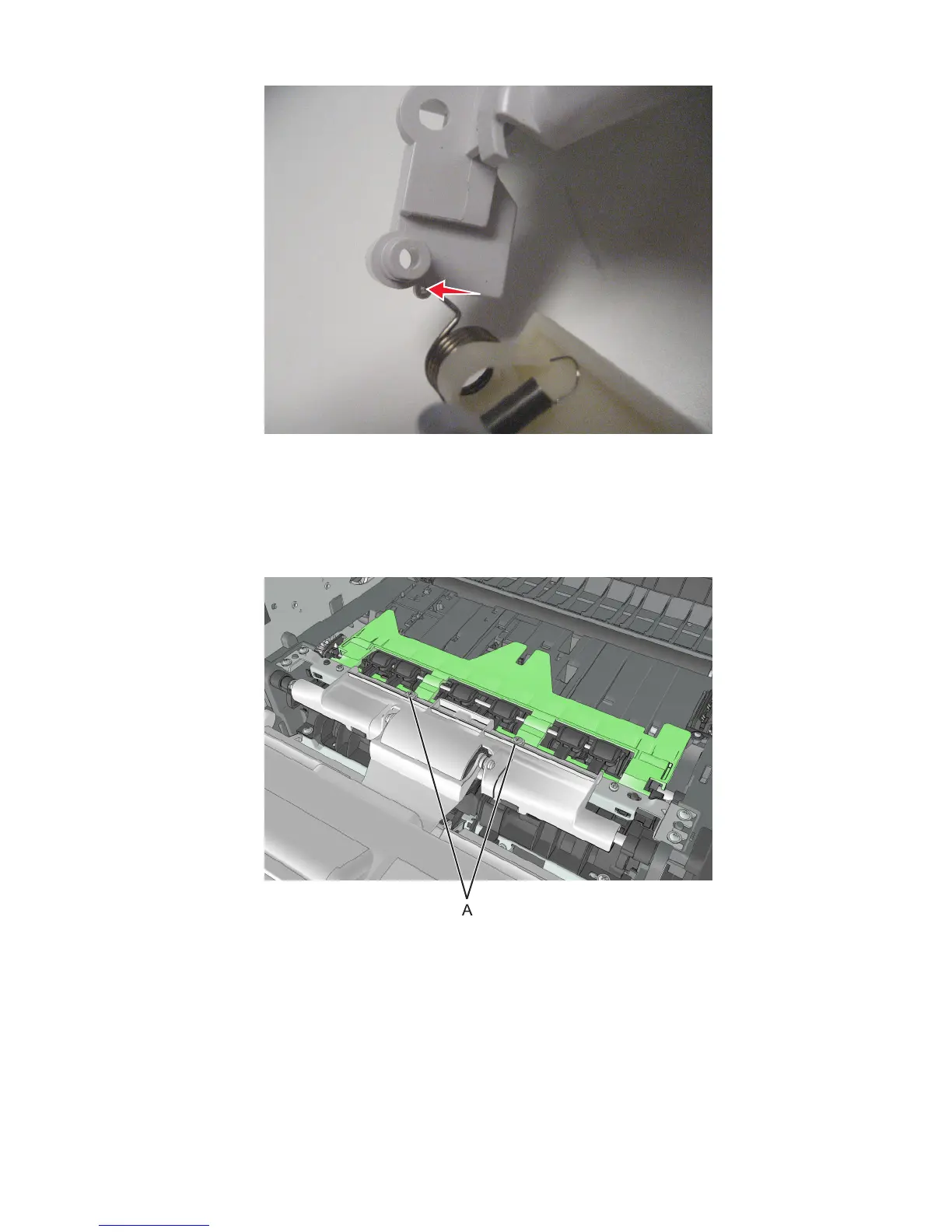

2 Remove the two screws (A), and then remove the MPF pick roller cover.
MPF pick roller removal
1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 288.
2 Remove the two screws (A).
Note: Use a #0 Phillips screwdriver.
7016
Repair information
288
