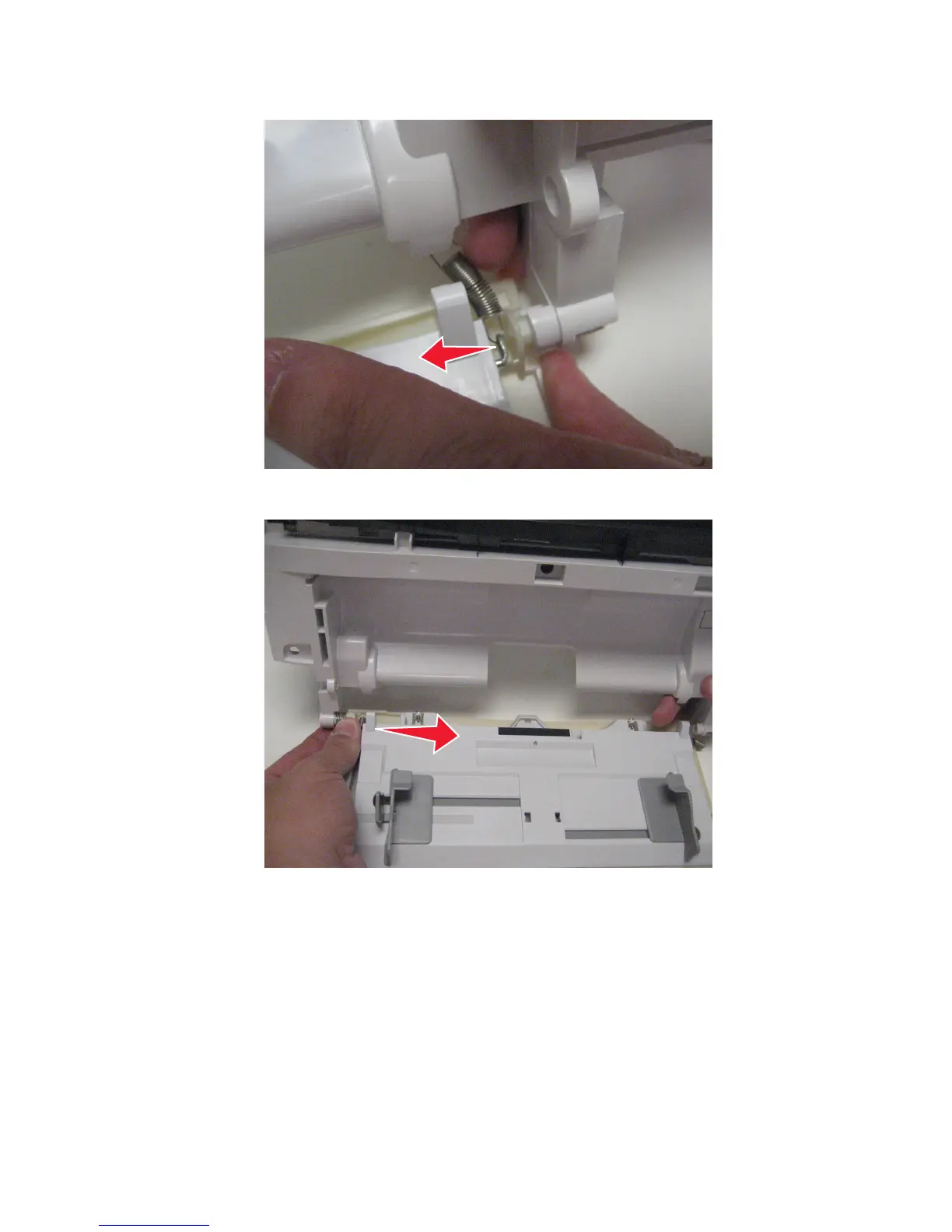

4 Push the MPF tray to the left to release the right pivot on the front access cover.
5 Slide the tray to the right, and remove the MPF tray and spring.
Installation note: Insert the straight end of the spring into the hole on the front access cover before sliding the
MPF tray onto the left pivot of the front access cover.
